Direct Burial Armored Gjasfkv Indoor Fiber Optic Cable Multi Core Wire 24 Cores

Price	Negotiatable
MOQ	1000 Meters
Delivery Time	Negotiable
Brand	FONGKO
Place of Origin	China
Model Number	FKCAB-023

Product Details

Product Specification

Usage	Indoor distribution	Place of Origin	China
Use	other	Core number	72/144 core
Model Number	FKCAB-023	Brand Name	FONGKO
Type	Fiber Optic Cable, Indoor multi-core armored cable (GJASFKV)	Price	Negotiatable
Fiber color	IEC Standard	Minimum Order Quantity	1000 Meters
Network	FTTH FTTX	Outer sheath	LSZH/PVC
Fiber type	G652 & G655 & 62.5/125 & 50/125	Cable diameter	14/18mm

Product Description

Promotion Gjasfkv Fibra Funis Opticus Communication Cables Indoor Multi-Core Armored Fiber Optic Cable

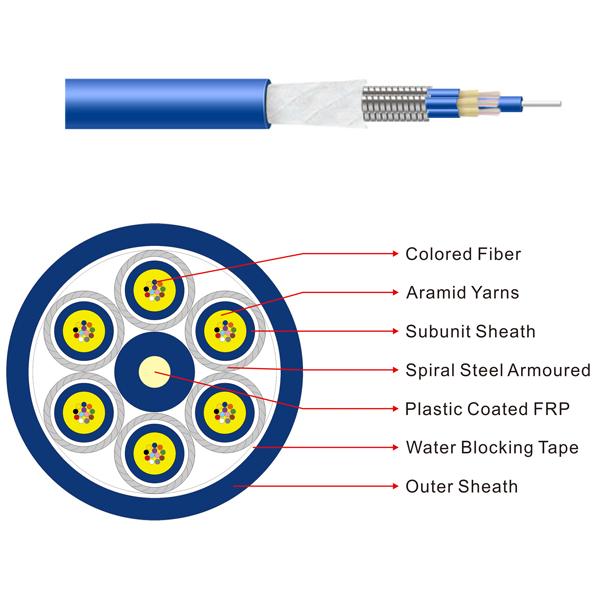

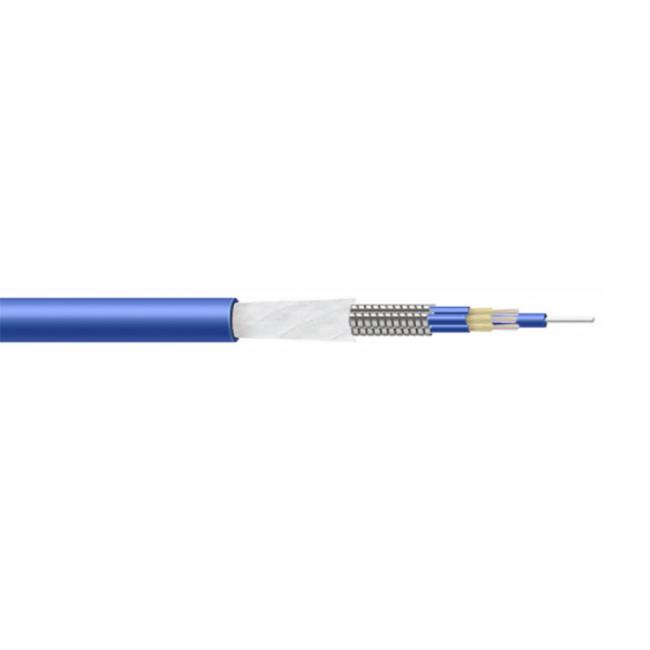

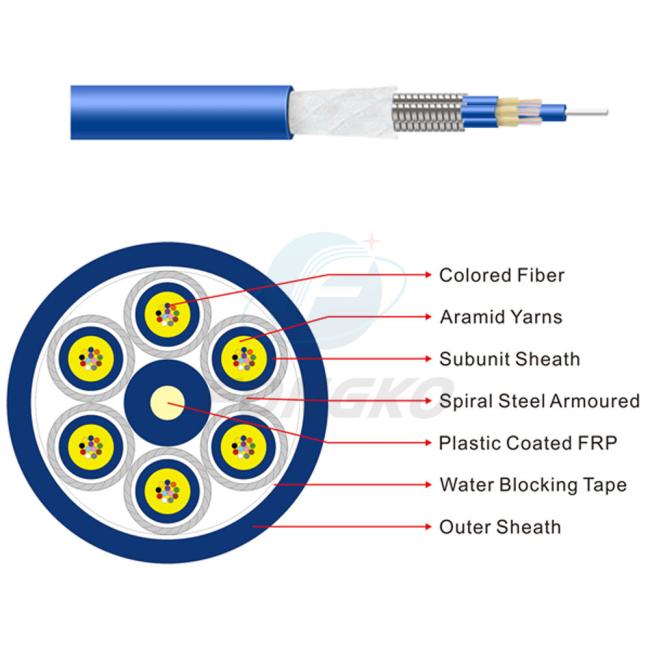

The structure of the optical fiber cable is a multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A layer of PVC or LSZH inner sheath is extruded on the stranded surface as a subunit, the subunit is wound with a layer of steel wire armor, The sub-unit and the non-metallic reinforcements FRP (and possible mats) are stranded in a circle, wrapped with a dry water-blocking tape between the core and the sheath, and finally the PVC (or LSZH) sheath is extruded cable.

Applications:

Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection. Long-distance, outdoor, building wiring, trunking optical hybrid optical connection. The backbone of the tail cable, access to the equipment inside the building. Small installation space and occasional wiring.Various conventional connector products. Pigtail, jumper.

Features:

Bending radius is small, light weight, soft, flexible, easy to follow. Miniature cable, high-strength aramid reinforced, high-performance jacket material protection. Has good mechanical and environmental performance.Flat wire armored to improve the optical cable compression and anti-rat ability. Flame retardant or non-flame retardant outer jacket to provide good safety protection.

Optical Characteristics
			G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
		@1300nm			≤1.0dB/km	≤1.0dB/km
		@1310nm	≤0.36dB/km	≤0.36dB/km
		@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850			≥500MHZ·km	≥500MHZ·km
Bandwidth (Class A)		@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm
