G655 4mm Duplex Armored Fiber Optic Cable Gjsfjbv For Indoor Distribution

Price	Negotiatable
MOQ	1000 Meters
Delivery Time	Negotiable
Brand	FONGKO
Place of Origin	China
Model Number	FKCAB-022

Product Details

Product Specification

Usage	Indoor distribution	Place of Origin	China
Use	other	Core number	2 core
Model Number	FKCAB-022	Brand Name	FONGKO
Type	Fiber Optic Cable, Indoor Duplex Armored Optical Fiber Cable(GJSFJBV)	Price	Negotiatable
Fiber color	IEC Standard	Minimum Order Quantity	1000 Meters
Network	FTTH FTTX	Outer sheath	LSZH/PVC
Fiber type	G652 & G655 & 62.5/125 & 50/125	Cable diameter	2.04.1mm~3.06.1mm

Product Description

2022 New Gjsfjbv Cable A Fibre Optique Communication Cables Indoor Duplex Armored Fiber Optic Cable

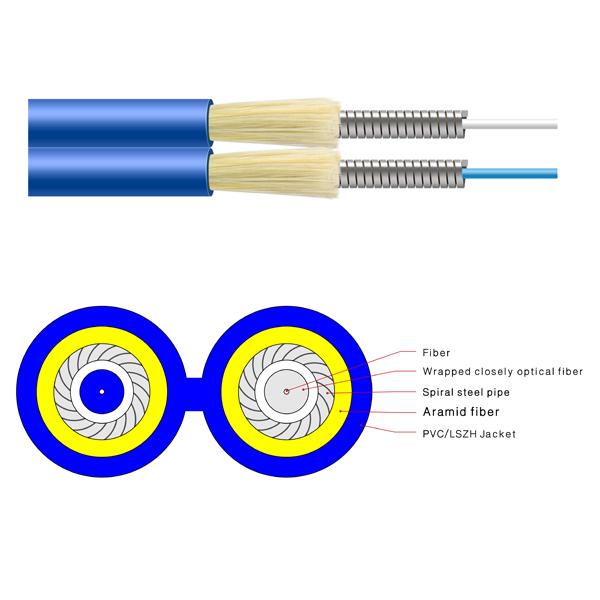

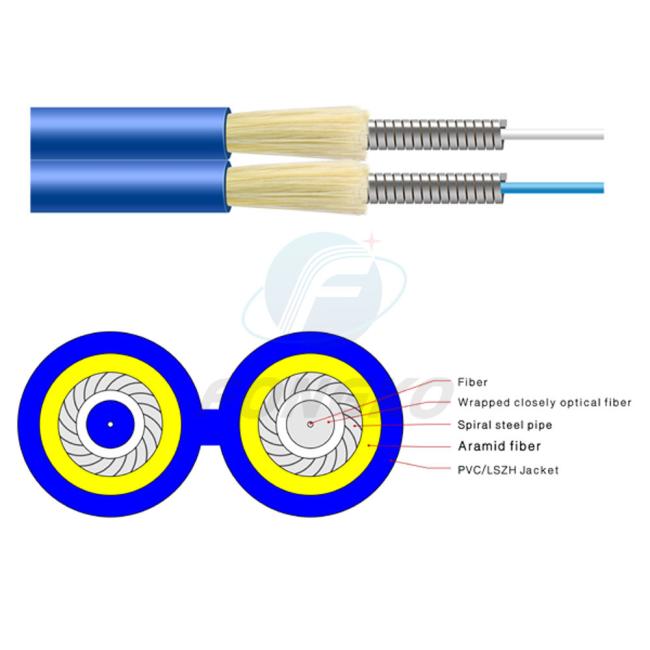

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into figure 8 shape fiber optic cable with PVC or LSZH sheath.

Applications:

Fiber optic equipment and instrument

Backbone network to the equipment in the building
Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
All kinds of connector , fiber optic pigtails, patch cords.
Long distance, outdoor/indoor cabling, trunking,etc
Indoor cabling,building cabling,LAN, etc
Small installation space cabling

Features:

High strength aramid yarn,high performance outer sheath. Good mechanical and environmental performance.
Flame retardant outer sheath provide good safety.Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent

Optical Characteristics
			G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
		@1300nm			≤1.0dB/km	≤1.0dB/km
		@1310nm	≤0.36dB/km	≤0.36dB/km
		@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850			≥500MHZ·km	≥500MHZ·km
Bandwidth (Class A)		@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm
