24 Core Lszh Flexible Indoor Fiber Optic Cable Armored GJSFJV 5mm~6mm

Price	Negotiatable
MOQ	1000 Meters
Delivery Time	Negotiable
Brand	FONGKO
Place of Origin	China
Model Number	FKCAB-021

Product Details

Product Specification

Usage	Indoor distribution	Place of Origin	China
Use	other	Core number	2~12 core
Model Number	FKCAB-021	Brand Name	FONGKO
Type	Fiber Optic Cable, Indoor Distribution Armored Optical Fiber Cable(GJSFJV)	Price	Negotiatable
Fiber color	IEC Standard	Minimum Order Quantity	1000 Meters
Network	FTTH FTTX	Outer sheath	LSZH/PVC
Fiber type	G652 & G655 & 62.5/125 & 50/125	Cable diameter	5.0~6.0mm

Product Description

New Indoor Distribution Cable De Fibre Optique Communication Cables Gjsfjv Armored Fiber Optic Cable

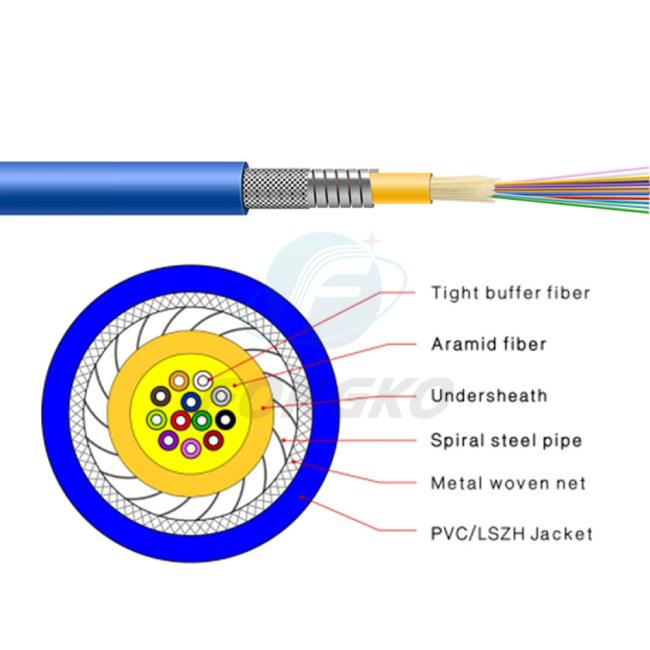

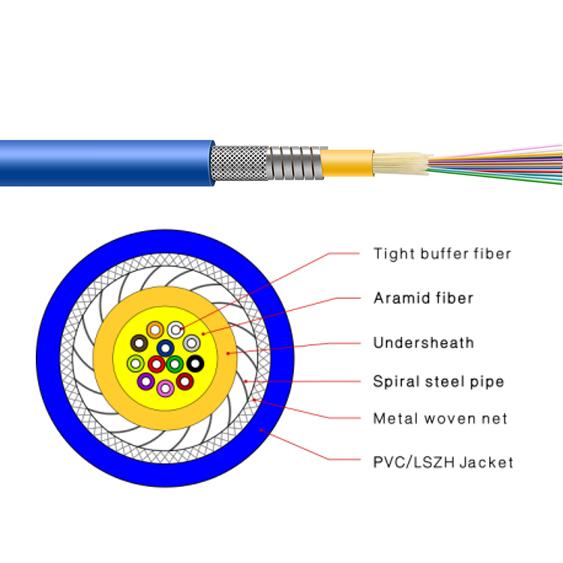

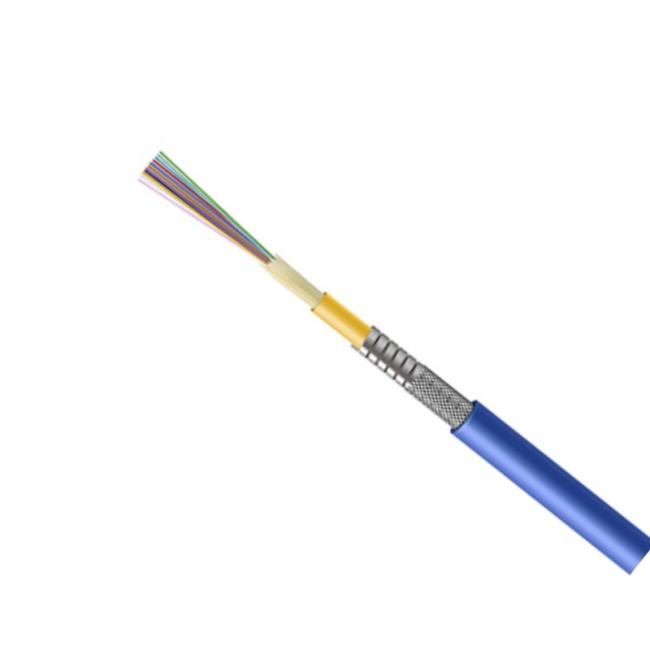

The structure of the cable is put ф900μm or ф600μm tight buffer fibers with aramid yarn,then covered with a layer of PVC or LSZH inner sheath, then wrapped a layer of flat stainless steel wires and add a layer of woven stainless steel wire, finally into fiber optic cable with PVC or LSZH sheath.

Applications:

Fiber optic equipment and instrument

Backbone network to the equipment in the building
Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
All kinds of connector , fiber optic pigtails, patch cords.
Long distance, outdoor/indoor cabling, trunking,etc
Indoor cabling,building cabling,LAN, etc
Small installation space cabling

Features:

High strength aramid yarn,high performance outer sheath. Good mechanical and environmental performance.

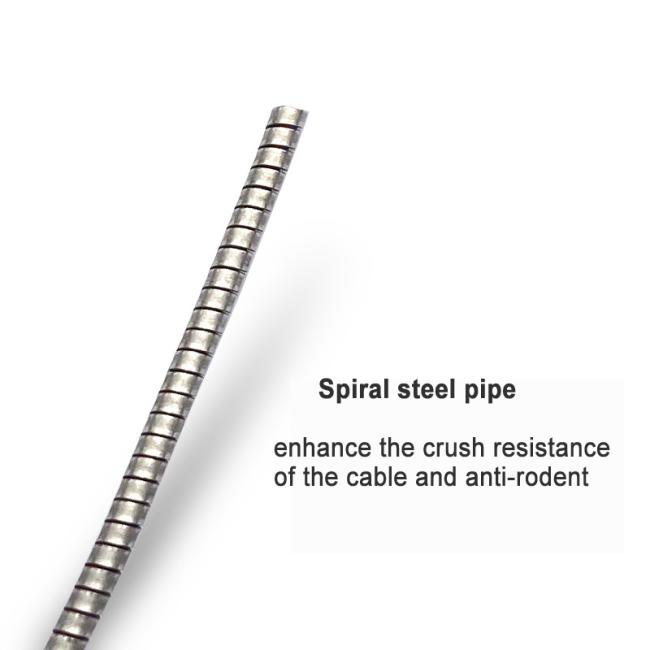

Flame retardant outer sheath provide good safety.Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent

Optical Characteristics
			G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
		@1300nm			≤1.0dB/km	≤1.0dB/km
		@1310nm	≤0.36dB/km	≤0.36dB/km
		@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850			≥500MHZ·km	≥500MHZ·km
Bandwidth (Class A)		@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters
Cable Type	Fiber Count	Tight Diameter mm	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GJFJV+SV	2	0.6	5.0	42	300/750	200/1000	20D/10D
GJFJV+SV	4	0.6	6.0	65	300/750	200/1000	20D/10D
GJFJV+SV	6	0.6	6.0	66	300/750	200/1000	20D/10D
GJFJV+SV	8	0.6	6.0	68	300/750	200/1000	20D/10D
GJFJV+SV	12	0.6	6.0	70	300/750	200/1000	20D/10D
