OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3

Price	Negotiatable
MOQ	1000 Meters
Delivery Time	Negotiable
Brand	FONGKO
Place of Origin	China
Model Number	FKCAB-033

Product Details

Product Specification

Jacket	PVC(LSZH)	Usage	Indoor distribution
Place of Origin	China	Use	other
Core number	24-120 cores	Model Number	FKCAB-033
Brand Name	FONGKO	Type	Fiber Optic Cable, Multi Purpose Break-out Cable( GJPFJV)
Price	Negotiatable	Fiber color	IEC Standard
Minimum Order Quantity	1000 Meters	Network	FTTH FTTX
Fiber type	G.652/G.655/50/125μm/62.5/125μm	Cable diameter	13.8±0.5mm~31±1mm

Product Description

Cable De Fibra Optica Communication Cables Gjpfjv Indoor Multi Purpose Break-Out Cable

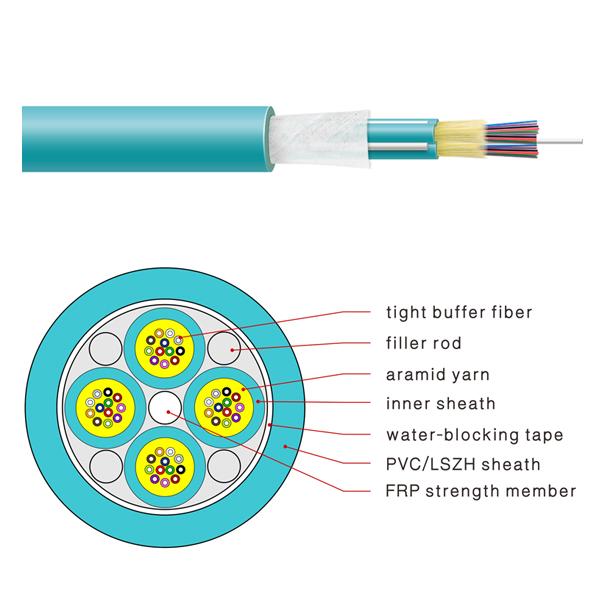

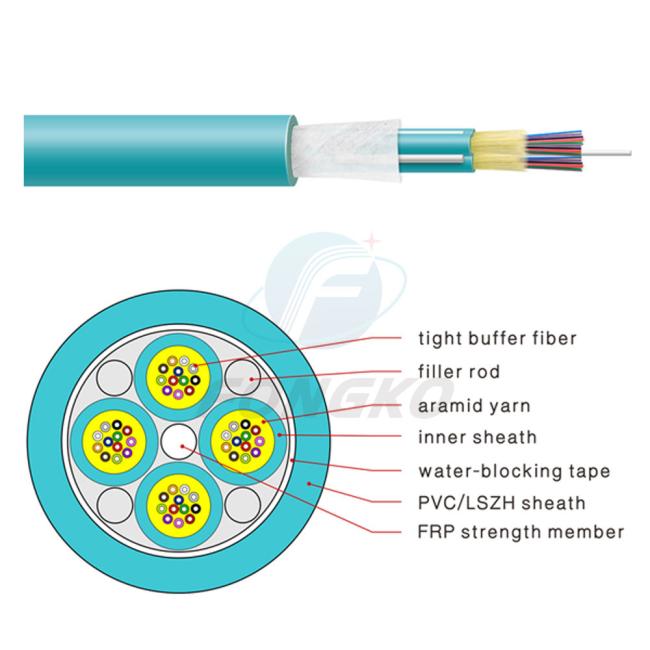

GJBFJH cable is made by the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,multi fibers as the sub unit twist with FRP into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.

Features:

1.Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
2.The low smoke and low halogen flame retardant sheath has the characteristics of fire prevention and self extinguishing, and is suitable for indoor environment such as computer room, cable shaft and indoor wiring.
3.LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the indoor environment (such as wiring in the ceiling, open wire cabling etc.)

Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
24	13.8±0.5	70	500/1300	300/1000	30D/15D
48	18.0±0.5	150	500/1300	300/1000	30D/15D
96	25.0±0.5	340	500/1300	300/1000	30D/15D
120	31.0±1mm	530	500/1300	300/1000	30D/15D
