| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, ISO |
| Model Number | RWT |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 600 |
| Load | 100 tons | Place of Origin | Henan, China |
| Traveling speed（m/min） | 0-20 (Stepless speed regulation) | Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Move Way | Forward, backward, turning while driving with no stop | Power supply | Maintenance free battery |
| Model Number | RWT | Supply Ability | 600 |
| Certification | CE, ISO | Brand Name | Remarkable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | other name | non-powered trailer |
| application | Work line | Price | Negotiable |
| Delivery Time | 30-45 work days | Minimum Order Quantity | 1 |
| Operation method | Wireless remote control & Hand operate pendant | Brake mode | Electromagnetic brake |

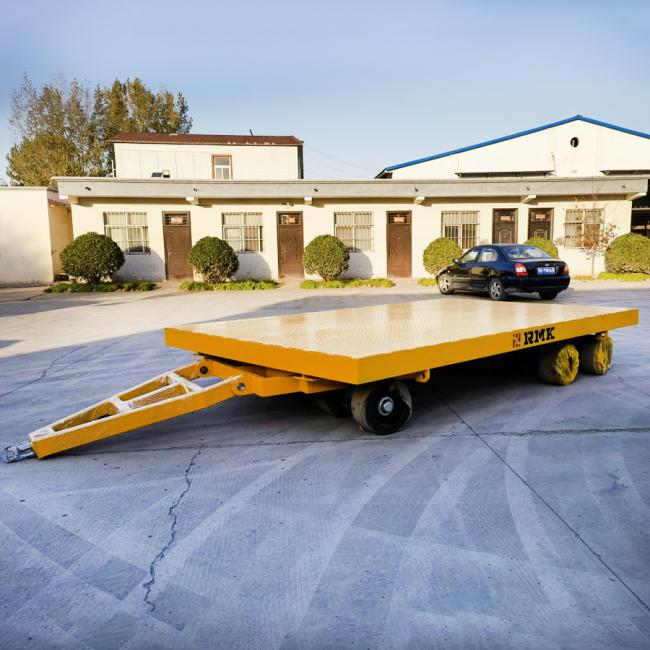

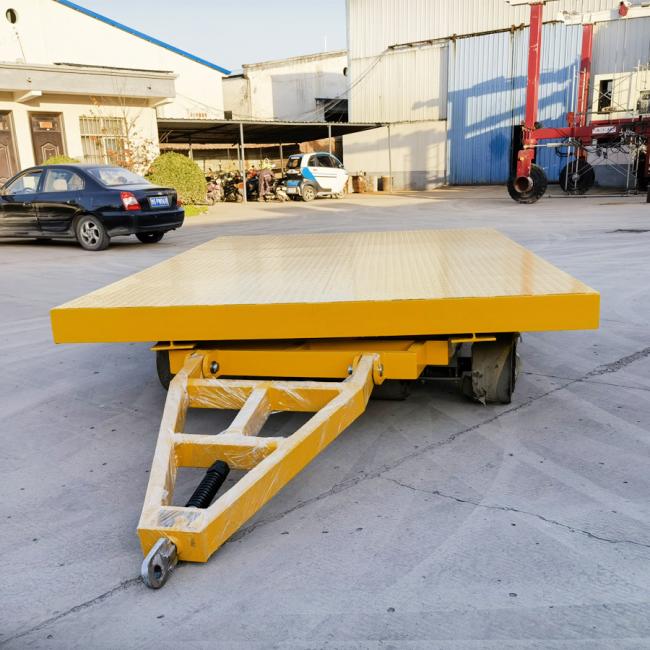

100
Ton
Heavy
Duty
Trailer
Heavy
Material
Handling
Transport
Car
The high-quality standards required within the automotive industry put significant pressure on auto parts manufacturers to maintain production efficiency and factory logistics at world class levels.
The large component parts are manufactured by injection molding using large molds which can weigh close to 100 tons. To production efficiency requires a strong technical competence but also the dynamic handling of all development and production steps using special heavy materials handling equipment.The heavy duty trackless transfer cart can deal with the problem.
As they are equipped with wheels and move on cement floor they are suited to very high loading capacities thanks to the very low friction between steel and steel. For this reason listed above, the cost of these transfer trolleys – referring to same dimensions and loading capacity – is lower than battery and diesel powered trolleys on wheels which must be equipped with steering systems and greater power.
In the world of heavy material handling technology, for moving heavy industrial materials, there are different types of equipment and technologies to choose between.
Transport equipment is used to move material from one location to another (e.g., between workplaces, between a loading dock and a storage area, etc.), while positioning equipment is used to manipulate material at a single location.One of the major subcategories of transport equipment are industrial trucks.
we are a leading manufacturer of heavy-duty platform carts (industrial truck or vehicle) and is highly specialized in moving heavy loads of up to 1000 tons in-plant, both indoors and outdoors.heavy duty platform carts are designed for both indoor and outdoor use. Steel wheel system are a very compact solution in a perfect environment and for short distances can be a cost-effective solution. That said, the many limiting factors of the technology must be carefully evaluated. we has been called upon on various occasions to resolve operational issues which were being caused by air cushion technology. The range of wheel-based vehicle technologies is vast and our custom designed solutions can be adapted to operational scenarios across a multitude of industries.
| Technical parameters transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 |
6000× 2300 |
10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 14 | turning structure | mechanical | |||||||
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
Henan
Remarkable
Intelligent
Technology
Co.,
Ltd
is
a
professional
handling
equipment
company
integrated
intelligent
R&D,
design,
manufacturing,
sales
as
well
as
after-sales
service.
It
specializes
in
producing
electric
transfer
carts
of
various
tonnages,
handling
equipment
accessories,
intelligent
crane
and
crane
accessories
with
professional
design,
development
and
manufacture
of
non-standard,
intelligent
electric
transfer
carts
and
handling
robots.
According
to
different
power
mode,
the
handling
equipment
products
can
be
divided
into
six
series
including
low-voltage
track-powered,
battery-powered,
towline-powered,
cable
reel-powered,
safe-trolley-line
powered,
and
unpowered
traction.
