| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, ISO |
| Model Number | KPX/KPD |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 600 |
| Load | 1-1000 tons | Place of Origin | Henan, China |
| Traveling speed（m/min） | 0-60 (Stepless speed regulation) | Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| table size | customized | Power supply | battery/rail/cable |
| Model Number | KPX/KPD | Supply Ability | 600 |
| High Light | towed rail trolley,rail transport cart,rail motorized transfer trolley,rail flat trolley | Certification | CE, ISO |
| Other function | Exquisite Drive Module Design, Less parts and Easy maintenance | Brand Name | Remarkable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Price | Negotiable |
| Delivery Time | 30-45 work days | Product name | 30 ton motorized electric rail transport trolley |
| Minimum Order Quantity | 1 | Rail And Wheel | Insulated Material Will Be Added |
| Operation method | Wireless remote control & Hand operate pendant | Application | Industrial Field, Steel Transport |

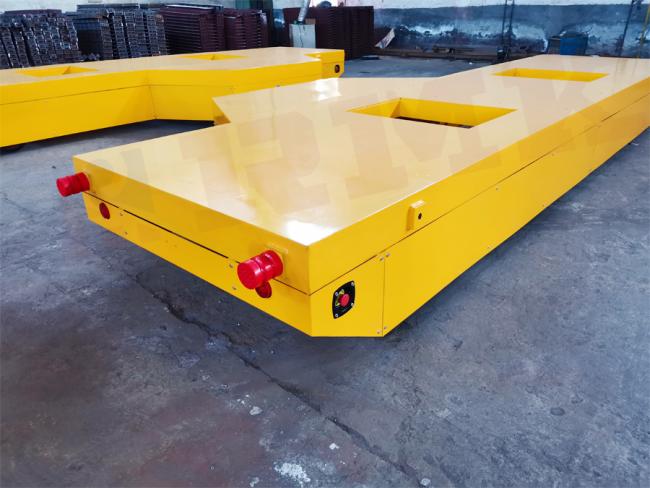

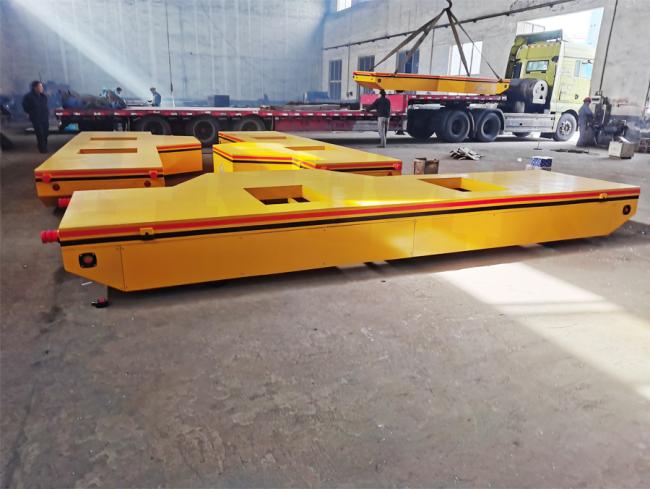

30 Tons Motorized Electric Rail Transport Trolley
30 ton motorized electric rail transport trolley for iron and steel handling products is one of our common and mature products, which is customized as per customers' true demand. Such as power supply, operation system, control system, track or no track, steerable, Wheel style, cart frame structure, and so on, and then provide the proper solution to you.
| Technical parameters for Battery powered electric transfer carts KPX series | ||||||||||
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 | |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 | |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 | |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 | |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P38 | P43 | P43 | QU100 | |
|
1. Load capacity, table size, and rail gauge can be customized; |
||||||||||
The feature of the custom rail handling trolleys
1. The running distance is unlimited.
2. The battery power transfer trolley can turn and run on "S" or curved tracks.
3. Suitable for all kinds of environments. It can be used indoors or outdoors in high-temperature explosion-proof and other environments. Suitable for long-distance operation.
4. Plc system can be equipped to realize automated handling.
5. Safe operation system with (sensor stop, sound&light alarm, buffer, E-stop, etc.)
6. Customized for you. Custom table size, operating speed, load, etc.Meet your requirement
The remarkable rail transfer trolley is powered by a battery, The battery is installed in the car, and supply DC electricity to the control system, which makes the cart start, stop, go forward, back forward, and so on. It is consist of a battery, motor, reducer, cart frame, electric appliance, etc.
Advantage of motorized rail transport trolley
1. Load Capacity reaches 1-1,000 tons can be customized on request.
2. Safe bearing factor reach to 150%
3. All transfer carts with the safety control system.
4. Stout steel frame. (adopt the box girder structure)
5. Free provide customized handling solution
6. Automated operation and transportation systems are support
7. DC & AC motor supported
8. Promote the working frequency and save the labor cost
9. Low noise and environmental protection
10. Solve the problems of limitation of the crane
11. More than 16 years of export experience.
12. Professional after-sales service team.
13. Professional design drawing for confirmation in case of any misunderstanding.
14. Remarkable has passed various qualification certifications. CE ISO SGS approved...
Bogie Frame
The frame adopts a box beam structure according to the crane principle and is combined with the design of a battery-powered flat bogie. It has a large load capacity, a long service life. Besides, not easy deformation and can effectively ensure the smoothness of the platform.
