Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley

Price	Negotiable
MOQ	1
Delivery Time	30-45 work days
Brand	Remarkable
Place of Origin	Henan, China
Certification	CE, ISO
Model Number	KPG
Packaging Details	1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	600sets

Product Details

Product Specification

Load	1-500 tons	Place of Origin	Henan, China
Traveling speed（m/min）	0-20 (Stepless speed regulation)	Packaging Details	1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
table size	customized	Power supply	Battery powered
Model Number	KPG	Supply Ability	600sets
Certification	CE, ISO	Other function	Automatic weighing,Equip with turning light, night light, battery display, etc.
Brand Name	Remarkable	Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Ground type	rail	Price	Negotiable
Delivery Time	30-45 work days	Product name	40 Ton Rail Transfer Trolley
Minimum Order Quantity	1	Operation method	Wireless remote control & Hand operate pendant
Wheels type	Cast Wheel; Forged Wheel

Product Description

Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley

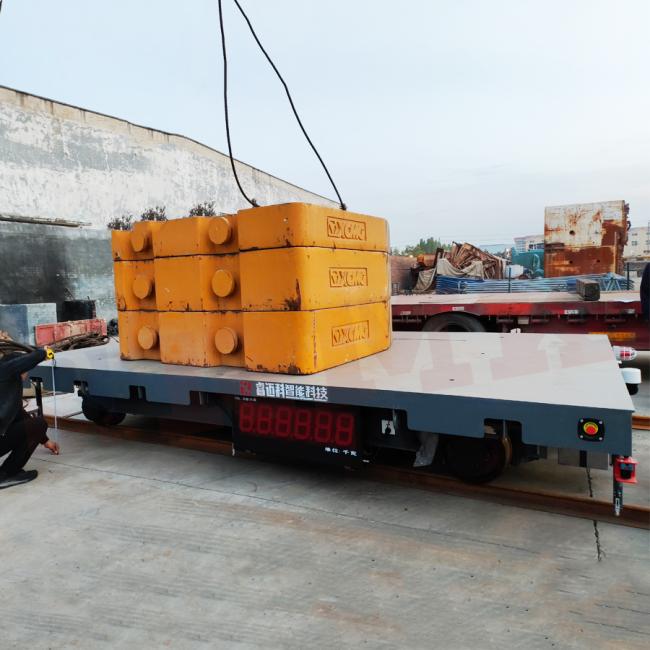

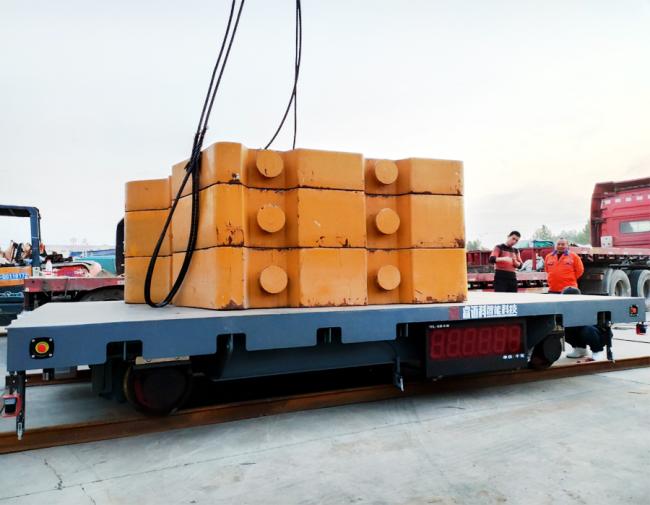

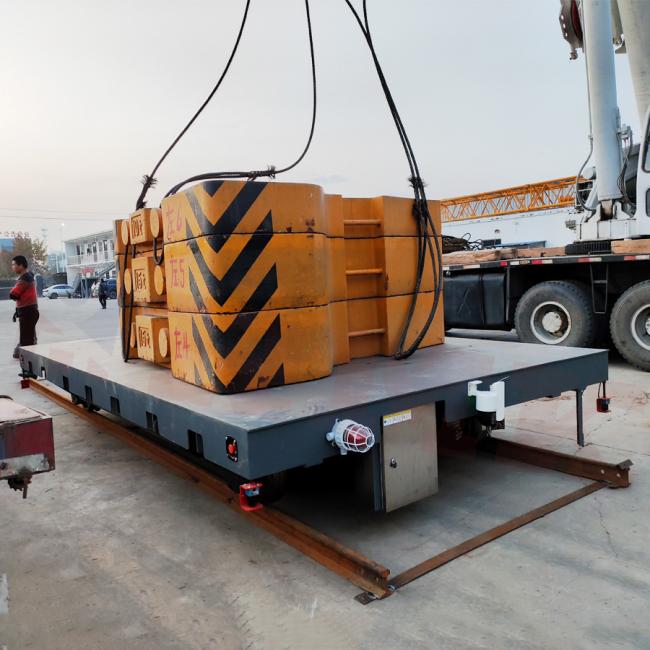

The 40 ton rail transfer trolley designed and manufactured by Remarkable for a nuclear power company in China will be delivered to the customer's use site after load test, functional operation test and customer acceptance. The rail transfer cart is equipped with weighing system, explosion-proof device, camera monitoring system and other devices for the transportation of nuclear waste, nuclear materials and other goods.

Remarkable can customize transfer trolleys of various types, functions and fields according to the needs of customers. Welcome to consult and visit!

Technical parameters for rail power transfer carts
Model		KPG-6t	KPG-10t	KPG-16t	KPG-25t	KPG-40t	KPG-63t	KPG-100t	KPG-160t	KPG-200t
Rated load (t)		6	10	16	25	40	63	100	160	200
Countertop size(mm)	Length	3600	3600	4000	4500	5000	5600	6300	8000	8200
	Width	2000	2000	2200	2200	2500	2500	2800	2800	3000
	Height	550	550	600	650	700	850	900	1100	1250
Speed(m/min)		30	30	30	30	25	25	20	20	18
Wheel base A(mm)		2000	2200	2200	2500	2800	3200	3600	5000	5000
Track medial distance C(mm)		1435	1435	1435	1435	1435	1435	1650	2000	2000
Wheel diameter(mm)		400	400	400	500	500	600	700	700	700
Bottom clearance(mm)		50	50	50	60	60	60	60	70	70
Minimum turning radius		30		35	50	55	60	80	100	100
Power mode		Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered
Recommended track model		24kg/m			38kg/m	43kg/m		QU80	QU100
Number of wheels		4							8
Maximum wheel Pressure (t)		1.91	3.21	4.87	7.5	11.5	16.9	27.6	22.8	28.5
Reference weight (t)		3.4	3.72	4.2	6	8.5	11.4	15.2	25.5	31.5
Note: 1) Other gauges, table sizes and load tonnages can be customized according to user requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away.
