| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, ISO |
| Model Number | KPX |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 600 |
| Load | 35 tons | Place of Origin | Henan, China |
| Traveling speed（m/min） | 0-30 (Stepless speed regulation) | Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| table size | customized | Power supply | Maintenance free lead acid |
| Model Number | KPX | Supply Ability | 600 |
| Certification | CE, ISO | Other function | Equip with turning light, night light, battery display, etc. |
| Brand Name | Remarkable | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Ground type | rail | other name | electric hydraulic transfer trolley on rail |
| Price | Negotiable | Delivery Time | 30-45 work days |
| Minimum Order Quantity | 1 | Operation method | Wireless remote control & Hand operate pendant |

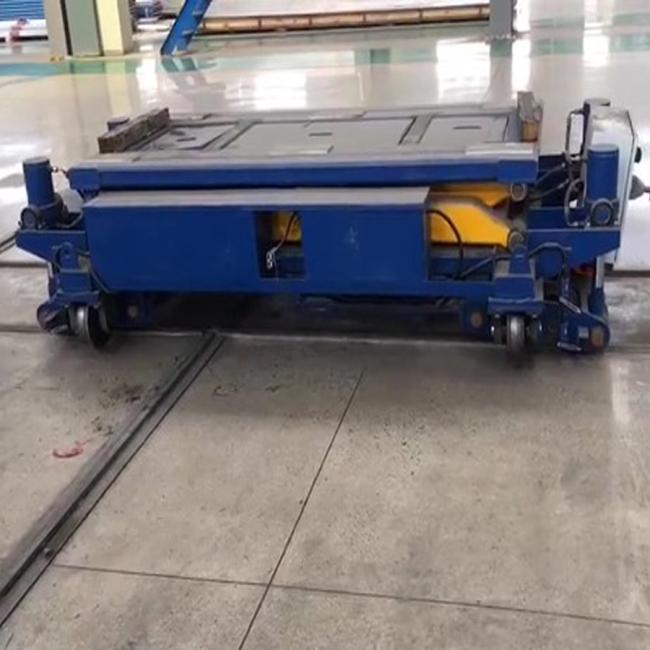

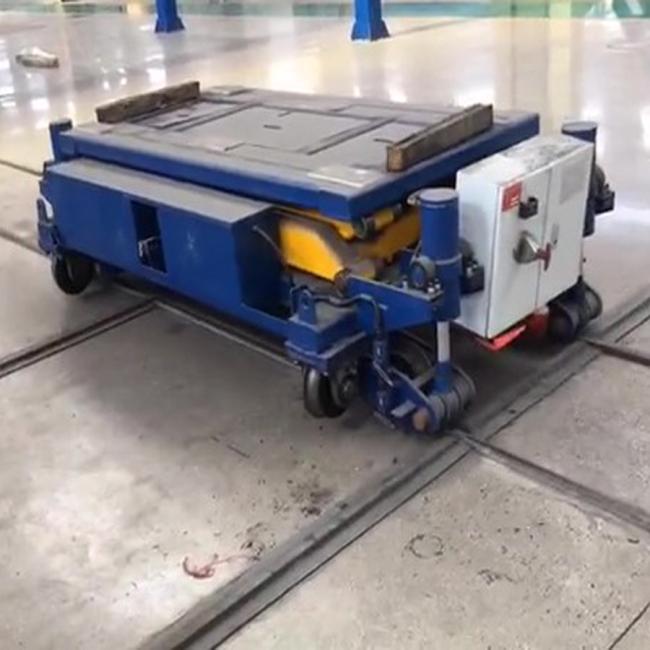

Turning Track Hydraulic Industrial Rail Cart 35 Tons Electric
The turning track flat car takes the battery as the power source to provide power for the DC traction motor and drive the flat car. The battery track flat car has the following advantages: no insulation requirements for the track, unlimited running distance, can drive on curves and turnouts, flexible, can be exchanged between multiple tracks, high safety performance and wide application. The vehicle has the advantages of convenient use, strong bearing capacity, durability, easy maintenance and long service life. It has become a means of transportation for many enterprises to frequently carry heavy objects within and between plants.
Turning Track Hydraulic Industrial Rail Cart 35 Tons Electric
Henan Remarkable Intelligent Technology Co., Ltd is a professional handling equipment company integrated intelligent R&D, design, manufacturing, sales as well as after-sales service. It specializes in producing electric transfer carts of various tonnages, handling equipment accessories, intelligent crane and crane accessories with professional design, development and manufacture of non-standard, intelligent electric transfer carts and handling robots. According to different power mode, the handling equipment products can be divided into six series including low-voltage track-powered, battery-powered, towline-powered, cable reel-powered, safe-trolley-line powered, and unpowered traction.
| Technical parameters for Battery powered electric transfer carts KPX series | ||||||||||
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 | |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 | |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 | |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 | |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P38 | P43 | P43 | QU100 | |
|
1. Load capacity, table size and rail gauge can be customized; |
||||||||||
