| Price | Price negotiation |
| MOQ | 1set |
| Delivery Time | 35-40 working days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, SGS, ISO9001 |
| Model Number | KPD, KPX |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 660/Price negotiation |
| Place of Origin | Henan, China | key word | material handling equipment |
| Operation Type | Remote+Hand Pendant | Size | customized |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. | Product Name | Die Rail Transfer Trolley |
| Power supply | Battery /Rail/Cable/AC+DC motor/motorized | Model Number | KPD, KPX |
| Supply Ability | 660/Price negotiation | High Light | Rail transfer cart, Industrial Transfer Carts, coil transfer cart, steel mill rail transfer wagon |
| Certification | CE, SGS, ISO9001 | Brand Name | Remarkable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Running speed | 0-25/min (Stepless Speed-adjusting) |
| Load capacity | 1-1000 tons/Customized | Price | Price negotiation |
| Delivery Time | 35-40 working days | Minimum Order Quantity | 1set |
| Application | Industry Field/Working Line/Transfer Materials | Wheels type | Cast Wheel; Forged Wheel |

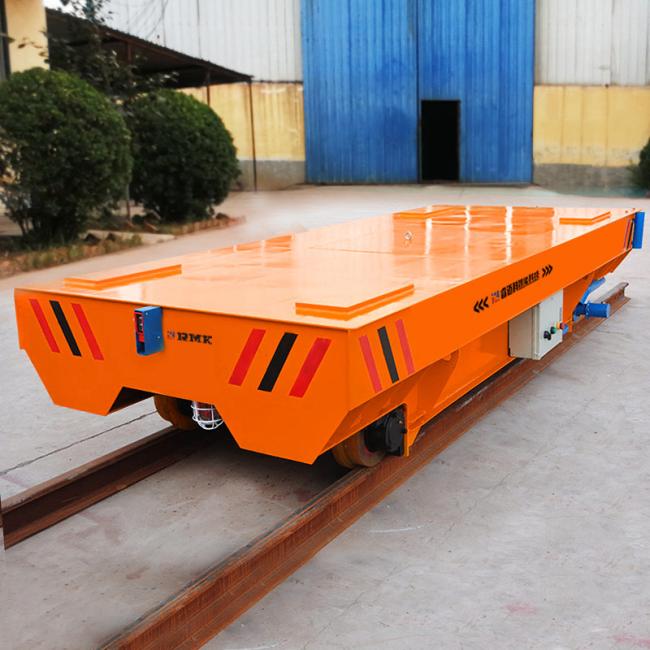

Motorised DC Motor 15 Tons Steel Pipe Transfer Industrial Rail Transfer Trolley
Motorised DC Motor 15 Tons Steel Pipe Transfer Industrial Rail Transfer Trolley for heavy materials handling, it is an electric railway transfer trolley powered by battery, or Low voltage rail, or cable, etc.. Can customized the power supply mode as you need. It is designed for transporting cargoes or equipment from one bay to another in factory, from indoor to outdoor. It has widely applied in the industry transportation field, our company can designed the trolley to meet our customers' demand.
Motorised DC Motor 15 Tons Steel Pipe Transfer Industrial Rail Transfer Trolley for dies, literally speak, it is an electric battery power trolley with rails, which is the traditional and mature type railway transfer trolley. More importantly, it has been new favorite in the industry transport field all over the world with hot market. Especially for industrial workshop transportation and outdoor transportation, heavy load, safe, easy to operate, suitable for all kinds of working conditions and outdoor environment, such as cold wave, high temperature, etc..
| Technical parameters for rail power transfer carts | ||||||||||
| Model | KPG-6t | KPG-10t | KPG-16t | KPG-25t | KPG-40t | KPG-63t | KPG-100t | KPG-160t | KPG-200t | |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Countertop size(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
| Wheel base A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
| Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Power mode | Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered | |||||||||
| Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
| Number of wheels | 4 | 8 | ||||||||
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
|
Note:
1)
Other
gauges,
table
sizes
and
load
tonnages
can
be
customized
according
to
user
requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away. |
||||||||||
Remarkable was to design and build a die transfer cart, or more specifically, a self-propelled OMNI-directional heavy duty platform cart to manage the movement of the molds within the plant. The advantage of this is safety, speed up mold transportation within the plant and improve factory productivity, Optimise the use of space in the mold storage area. We can design roller carrier, pallet, lifting device according to the needs of customers and the characteristics of transport materials, and cooperate with the transfer vehicle.
Load capacity, table size, V-shape holder, speed can be designed as per your demand. Strong R&D capacity will provide you more support for material handling solution.

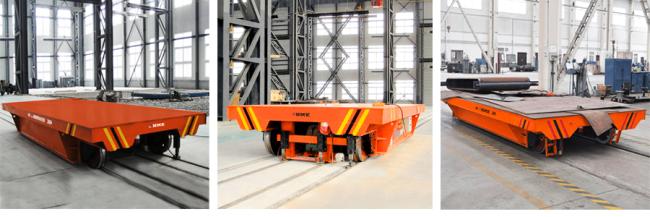

Remarkable Display of main products
