| Price | Negotiable |
| MOQ | 1 set |
| Delivery Time | 30-45 days |
| Brand | Remarkable |
| Place of Origin | China |
| Certification | CE, ISO9001 |
| Model Number | RWP-30T |
| Packaging Details | The whole cart will be packed by the tarp, the parts will be packed by polywood case. |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability | 300 sets per year |
| Safety facilities | warning light, E-stop | Usage | material transferring |
| Safety features | Warning alarm and End stop, end stop, Warning alarm | Place of Origin | China |
| After-sales service provided | commissioning and training | Size | Customized Size |
| Packaging Details | The whole cart will be packed by the tarp, the parts will be packed by polywood case. | Color | Customized |
| Power supply | Battery | Model Number | RWP-30T |
| Supply Ability | 300 sets per year | Certification | CE, ISO9001 |
| Control model | wireless remote control | Brand Name | Remarkable |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, MoneyGram | Running speed | 0-20m/min |
| Type | Electric | Load capacity | customized |
| Price | Negotiable | Delivery Time | 30-45 days |
| Capacity | 30 tons | Minimum Order Quantity | 1 set |
| Power source | battery | Application | Industry metallurgy, Material handling/steel coil/industrial |

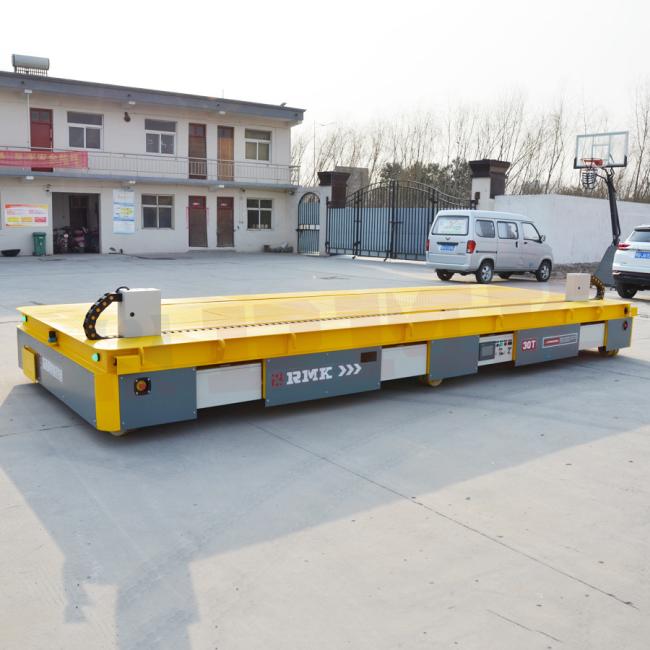

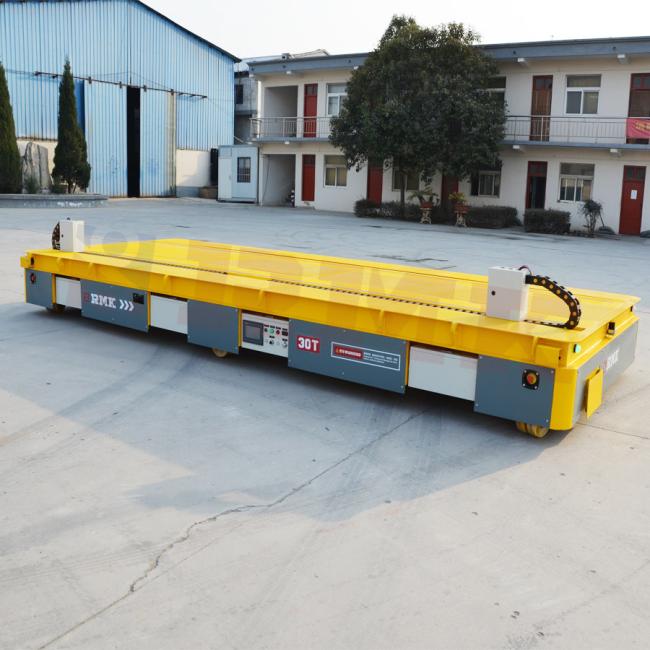

Electric 30 Tons Concrete Mold Battery Transfer Car Is One Of Our Common And Mature Product, Which Is Customized As Per Customers' True Demand. Such As Power Supply, Operation System, Control System, Track Or No Track, Steerable, Wheelstype, Cart Frame Structure And So On, And Then Provide Proper Solution To You.
The Features Of Electric 30 Tons Concrete Mold Battery Transfer Car:
1. It Is Not Restricted By The Track And Can Travel On The Ground And Realize Turning 360 Degrees.
2. Suitable For All Kinds Of Environments. It Can Be Used Indoors Or Outdoors In High Temperature Explosion-Proof And Other Environments.
3. PU Wheel, Tyre Can Run On The Cement Floor, Avoid The Impairement For The Ground.
4. Dead Man Stop, Lamp, Sensor Stop, Sound&Light Alarm Will Be Equipped To Guarantee The Safety.
5. Suitable For Long Distance Operation. Operationg Handle And Remote Control Can Be Exchanged.
6. Customized For You. Custom Table Size, Operating Speed, Load, Etc.. Meet Your Requirements.
Equipped With Safety Warning And Automatic Stop Device.
| Technical parameters for trackless electric transfer carts | |||||||
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure | ||||||
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 |
| ground requirement | cement floor | steel plate ground | |||||
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 | ||||||
| wheels base(mm) | 1500 | 1700 | 1800 | ||||
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| turning type | turning while driving with no stop | ||||||
| control method for turning | control button | ||||||
| turning structure | mechanical | ||||||
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel diameter(mm) | 300 x 4 | 350 x 4 | 400 x 4 | 400 x 6 | 500 x 6 | ||
| wheel material | ZG55+hydropur ture | ||||||
| running speed(m/min) | 0-20 | ||||||
| brake principle | electric magnetic brake | ||||||
| operation method | with wire or no wire | ||||||
| battery maintenance | free of maintenance | ||||||
| charger's installation | installed on cart | split-type | |||||
| radar control | 3-0.3m, automatic stop for obstacles | ||||||
| warning equipment | sound and light | ||||||
| other functions | turning light, night light and power display | ||||||
Advantages Of 30 Tons Concrete Mold Battery Transfer Trolley Electric Industry Metallurgy
Material Handling Transfer Flat Car Compared With Other Products, The Biggest Advantage Is That It Can Theoretically Move Infinitely, And Will Not Suffer From The Voltage Decay With The Change Of Running Distance. It Mainly Uses Lead-Acid Batteries That Are Powered By Batteries. The Electrode Of The Lead-Acid Battery Is Composed Of An Oxide Of Lead And Lead, And The Electrolyte Is An Aqueous Solution Of Sulfuric Acid. The Main Advantage Is That The Voltage Is Stable And The Price Is Cheap.
