| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, ISO, SGS |
| Model Number | RWP, AGV, KPX |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 600/set |
| Load | 1-300 Tons | Place of Origin | Henan, China |
| Traveling speed（m/min） | 0-30 (Stepless speed regulation) | Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Move Way | Forward, backward, turning while driving with no stop | Power supply | Maintenance free battery |
| Control System | Wireless / PLC | Model Number | RWP, AGV, KPX |
| Supply Ability | 600/set | Certification | CE, ISO, SGS |
| Brand Name | Remarkable | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| high liht | die handling cart, automated transfer car, 20 ton transfer trolley | other name | 20 ton mold handling cart |
| Price | Negotiable | Delivery Time | 30-45 work days |
| Minimum Order Quantity | 1 | Battery charger function | Automatic charging |
| Operation method | Wireless remote control & Hand operate pendant | Brake mode | Electromagnetic brake |
| Application | mold field, automobile manufacturing industry | table | customized |

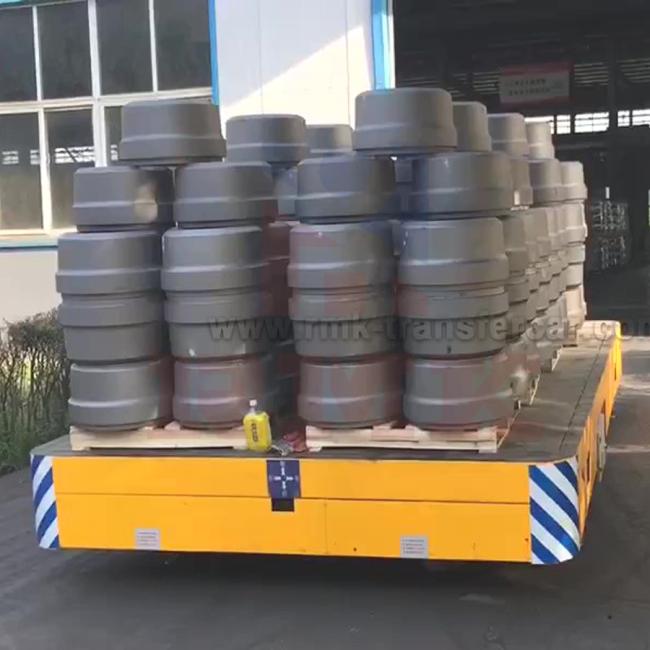

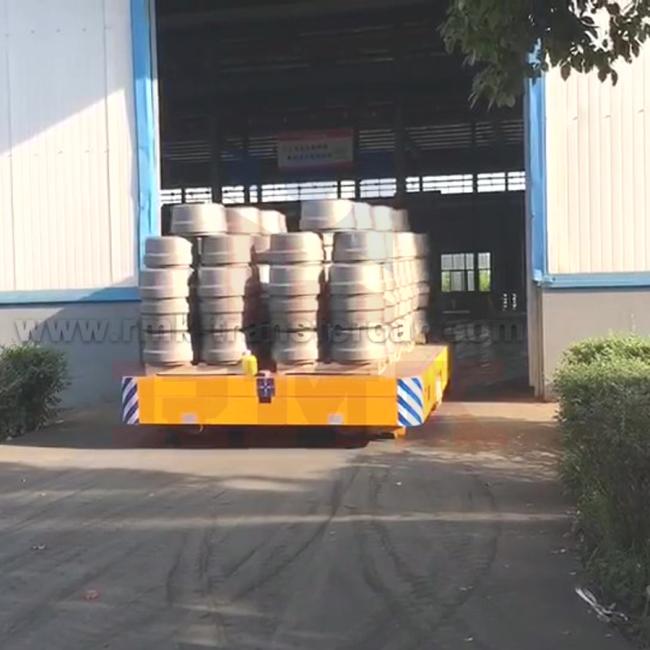

20 ton Electric Transport Cart is a kind of Trackless electric flat trolley is composed of power supply, transmission mechanism, steel structure bearing frame, steering system, walking mechanism, control module and fault diagnosis module. Usually, we choose battery, cable and motor as the power components of this series of transfer cars. The power supply provides power to the traction motor through the electrical control module system to realize the start, stop, forward, backward and steering memory functions of trackless electric flat cars.
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 |
6000× 2300 |
10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
MAIN FEATURE:
1. Customized capacity from 1 ton to 500 tons.
2. Battery powered (Optional power source).
3. Robust Sturdy Frame.
4. Omnidirectional: various steering on client request (normal, 90°, diagonal, 360°and many others).
5. Maintenance Free Battery and Intelligent Charger.
6. Low battery alarm device. It will alarm, when the battery power is too low.
7. Any kind of wheels (polyurethane, solid, super elastic or pneumatic).
8. Anti-explosion, anti-high temperature, anti-water, anti-dust, etc..
9. Customized system (lifting, weighing, titling, climbing, ferry, plc, etc.).
10. Optional Control System (Operation handle/ Remote Controller / Cabin).
11. Safety System(LED flashing lights, Sound acoustic devices, E-stop, Dead man stop, Buffer etc.).
12. Speed up to 10 Km/h.
13. Well known components brand.
Remarkable engineering team will always provide the optimal guiding method based on your site layout and requests to offer you the best product with the competitive price.
