| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, ISO |
| Model Number | KPX/KPD |
| Packaging Details | 1.Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 600 |
| Load | 1-500 tons | Place of Origin | Henan, China |
| Traveling speed（m/min） | 0-25 (Stepless speed regulation) | Packaging Details | 1.Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| table size | ferry/roller/lift/customized | Power supply | battery/rail/cable |
| Model Number | KPX/KPD | Supply Ability | 600 |
| Certification | CE, ISO | Other function | Exquisite Drive Module Design, Less parts and Easy maintenance |
| Brand Name | Remarkable | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Ground type | P24/38/43; QU70/80/100/120 | Price | Negotiable |
| Delivery Time | 30-45 work days | Product name | Lifting platform rail transfer flat car |
| Minimum Order Quantity | 1 | Operation method | Wireless remote control & Hand operate pendant |

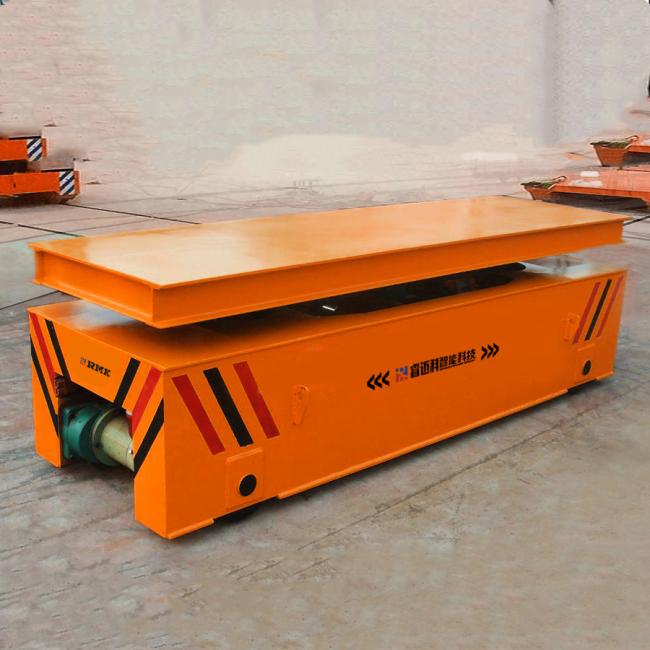

Lifting Platform Rail Transfer Trolley Battery Wireless Remote Control Stepless Speed

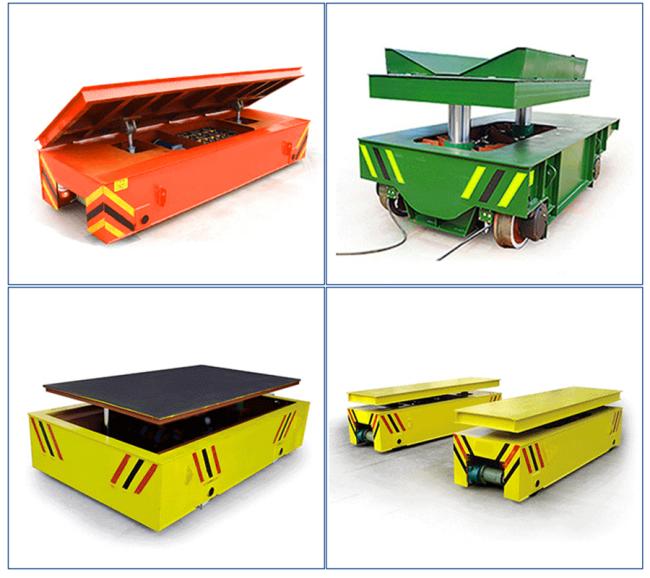

The lifting platform rail transfer flat car is a kind of multi-functional lifting and loading mechanical handling equipment, which can be lifted freely within the set height range to meet the lifting requirements of different working heights, and the platform can be the whole platform for lifting, or another working platform. There are two kinds of lifting platforms commonly used in electric transfer flat cars: one is the hydraulic lifting platform, which is powered by the hydraulic system. This series of elevating railcars are usually equipped with hydraulic jacks, which are used to place the platform for carrying objects, forming a set of elevating platform. According to the different carrying tonnage and lifting height, the number of hydraulic cylinders is also different One is the scissor type lifting platform, which is also powered by the hydraulic system. This series of weighing structure is scissor fork type, which is commonly used in the work place with high lifting height The lifting platform rail car is intelligent, efficient and easy to operate. It is widely used in the production lines with equipment working line drop, such as automobiles, containers, mold manufacturing, steel aluminum processing, workpiece assembly, etc. various fixed frames can be added on the platform according to the particularity of the transferred objects, such as detachable V-shaped frame or fence can be placed on the platform for steel aluminum coil transportation The extended application of hydraulic lifting table electric flat car can realize synchronous lifting and walking, and the two cars can lift heavy equipment together. The lifting height can be designed according to the specific needs of customers. Remarkable can also design integral lifting platform and independent lifting platform.
| Technical parameters for rail power transfer carts | ||||||||||
| Model | KPG-6t | KPG-10t | KPG-16t | KPG-25t | KPG-40t | KPG-63t | KPG-100t | KPG-160t | KPG-200t | |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Countertop size(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
| Wheel base A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
| Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Power mode | Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered | |||||||||
| Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
| Number of wheels | 4 | 8 | ||||||||
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
|
Note:
1)
Other
gauges,
table
sizes
and
load
tonnages
can
be
customized
according
to
user
requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away. |
||||||||||
[introduction to particularity] the lifting platform rai transferl flat car is equipped with a hydraulic lifting system, which can add a platform to lift freely within the set range.
[selection of power supply mode] the power supply mode of this series of vehicles can be battery, low-voltage track, towing cable, cable drum, sliding contact wire, etc., which is mainly selected according to the specific working condition and environment of the trolley.
| Our Related Product | |||||
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer vehicle | KPG | Conductor Rail/Battery | Load range 1-500ton, can be customized per client demand | Running distance |
Ordinary goods,such as steelplate, workpiece,equipment etc special goods,such as coil. column,ladle etc Logistics,warehouse carrying |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling vehicle | KPC | Busbar | Working shop | ||
| Dragged Cable transfer cart | KPT | Dragged Cable | |||
| Non-power transfer cart | KP | Non-power | 1-100t | Working shop | |
| Towed Trailer | RQP | Tractor | Load range 1-500t, can be customized ,steel floor is demanded | Working environment | |
| Trackless Handling Machine | RWP | Battery | Working path | ||
| AGV Automatic Trackless Transfer Cart | AGV | Battery | Load range 1-300ton, can be customized per client demand | Running Distance:Unrestricted | |
| RGV Automatic rail carrier | RGV | Battery/Busbar/rail | 1-150t can be customized per client demand | Circular track and linear reciprocating | |
| Ladle transfer cart | RGP | Battery/Cable | Load range 1-500ton, can be customized per client demand | anti high temperature | |
