| Price | Negotiable |
| MOQ | 1 Set |
| Delivery Time | 40-45 days |
| Brand | Remarkable |
| Place of Origin | China |
| Certification | CE, ISO9001 |
| Model Number | RWP-25T |
| Packaging Details | The whole cart will be packed by the tarp, the parts will be packed by polywood case. |
| Payment Terms | T/T |
| Supply Ability | 550 sets/year |
| Safety device | Audible and visual alarm lamp and emergency stop button, Laser obstacle avoidance | Place of Origin | China |
| Traveling speed（m/min） | 0-25 (Stepless speed regulation) | Packaging Details | The whole cart will be packed by the tarp, the parts will be packed by polywood case. |
| Model Number | RWP-25T | Supply Ability | 550 sets/year |
| Certification | CE, ISO9001 | Brand Name | Remarkable |
| Payment Terms | T/T | Rated Loading capacity | 25 Tons |
| Ground type | Cement floor, Epoxy floor, Asphalt floor | Price | Negotiable |
| Delivery Time | 40-45 days | Product name | Hydraulic Lifting Automatic Transfer Cart , 25 Tons Heavy Duty Transport Trolley |
| Minimum Order Quantity | 1 Set | Operation method | Wireless remote control & Hand operate pendant |
| Brake mode | Electromagnetic brake | Table size | Customized |
| high light | hydraulic lift device trackless transfer car, flatbed trolley, forklift battery transfer platform |

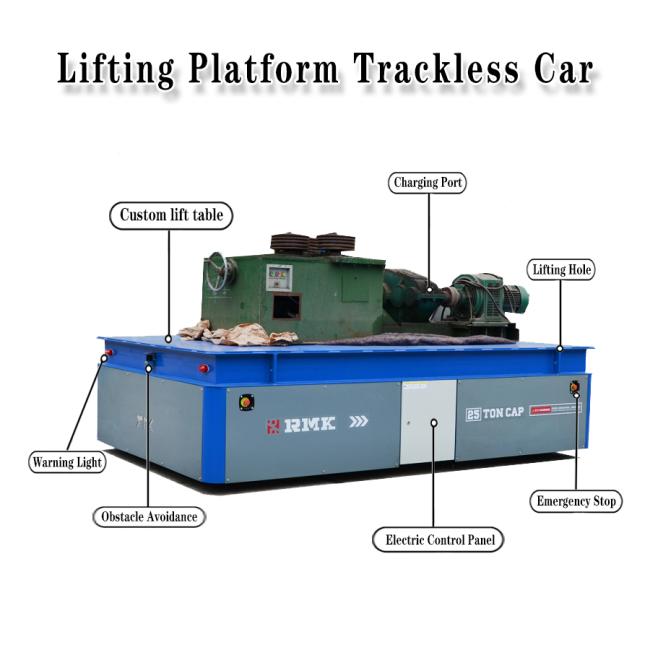

Remarkable RWP series ttrackless battery transfer trolley is a transport vehicle with safety protection and various load transfer functions. It uses lead-acid battery or lithium battery as energy, DC motor speed regulation drive technology, multi wheel hydraulic steering technology and dual operation modes of wire control and remote control to enable the flat car to realize the functions of start, stop, forward, backward and turning. Trackless series transfer cars have the advantages of high safety and mobility, stable operation, high precision, high speed, high flexibility, large load and high efficiency.
The biggest advantage of trackless transfer trolley is that it does not need to lay steel rails, and the traveling route is not limited, which is convenient for material transportation in workshops, open areas and warehouses. It is widely used in aerospace, military industry, machinery manufacturing, automobile industry, heavy industry manufacturing, mold manufacturing, engineering machinery, shipbuilding, port freight yard, steel plate distribution, iron and steel metallurgy, mine transportation and other industries.
| Technical parameters for trackless electric transfer carts | |||||||
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure | ||||||
| ground requirement | cement floor | steel plate ground | |||||
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 | ||||||
| turning type | turning while driving with no stop | ||||||
| control method for turning | control button | ||||||
| turning structure | mechanical | ||||||
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel material | ZG55+hydropur ture | ||||||
| running speed(m/min) | 0-20 | ||||||
| brake principle | electric magnetic brake | ||||||
| operation method | with wire or no wire | ||||||
| battery maintenance | free of maintenance | ||||||
| charger's installation | installed on cart | split-type | |||||
| radar control | 3-0.3m, automatic stop for obstacles | ||||||
| warning equipment | sound and light | ||||||
| other functions | turning light, night light and power display | ||||||
Case:
Remarkable exported the 3-ton intelligent lifting trackless truck of LTL transformers (PVT) Ltd, a well-known transformer company in Sri Lanka, which has been highly praised by customers. It is convenient to operate and use in work and greatly improves productivity. Remarkable ordered another 25 ton heavy-duty trackless truck from us. The trackless truck is also equipped with hydraulic lifting table and automatic obstacle avoidance functions, It is used for the transfer of transformers, power equipment and other materials in its production workshop.
