| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, ISO |
| Model Number | KPX |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 600 |
| Load | 25 tons | Place of Origin | Henan, China |
| Traveling speed（m/min） | 0-25 (Stepless speed regulation) | Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| table size | customized | Power supply | Maintenance free lead acid |
| Model Number | KPX | Supply Ability | 600 |
| Certification | CE, ISO | Other function | Equip with turning light, night light, battery display, etc. |
| Brand Name | Remarkable | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Ground type | track | other name | electric motorized trolleys |
| Price | Negotiable | Delivery Time | 30-45 work days |
| Minimum Order Quantity | 1 | Operation method | Wireless remote control & Hand operate pendant |

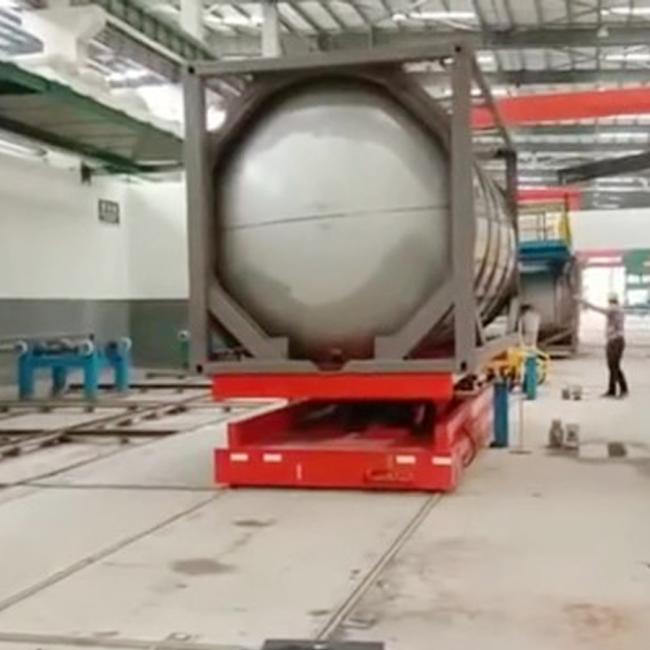

25 Tons Motorized Rail Transfer Trolley Adjustable Electric Operated
KPX electric flat car series electric flat car is an electric flat car powered by battery. The accumulator is installed on the flat car to directly supply power to the traction DC motor. Compared with AC motor, DC motor has the advantages of less damage, large starting torque and strong overload capacity.
In addition to the characteristics of KPJ and KPD series products, KPX electric flat car equipment has greater safety performance and mobility flexibility. It can drive on curves and turnouts, with unlimited running distance, low requirements for track laying, no insulation requirements, convenient construction and low cost. And not limited by distance. This model of electric flat car can provide the following options to further improve the work efficiency for customers
Load capacity, table size and inner distance of rail can be designed and manufactured according to customer requirements; Optional automatic stop and limit device; Optional maintenance free battery, lithium battery, explosion-proof battery, high temperature resistant battery, etc.; Optional DC brushless motor and DC brushless motor; Domestic and imported electrical appliances can be selected.

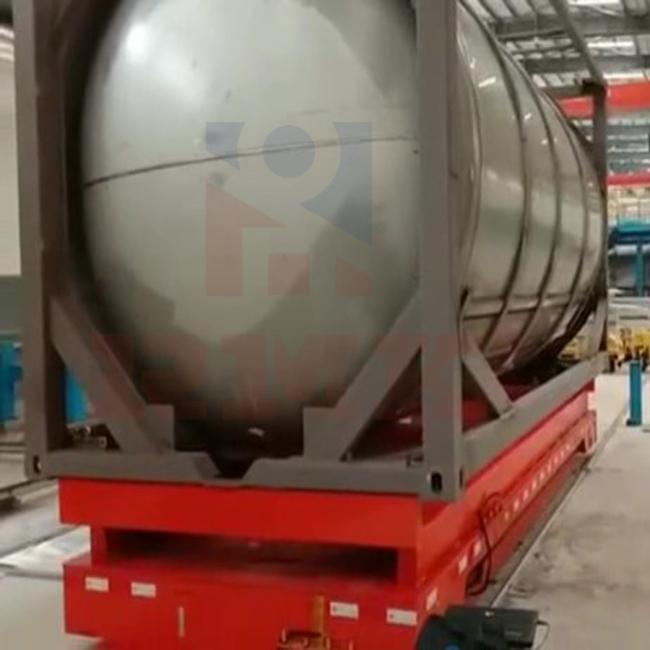

25 Tons Motorized Rail Transfer Trolley Adjustable Electric Operated
| Technical parameters for Battery powered electric transfer carts KPX series | ||||||||||
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 | |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 | |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 | |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 | |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P38 | P43 | P43 | QU100 | |
|
1. Load capacity, table size and rail gauge can be customized; |
||||||||||
