| Price | Negotiable |
| MOQ | 1 set |
| Delivery Time | 45 days |
| Brand | Remarkable |
| Place of Origin | China |
| Certification | CE, ISO9001 |
| Model Number | KPJ-50T |
| Packaging Details | The whole cart will be packed by the tarp, the parts will be packed by polywood case. |
| Payment Terms | T/T |
| Supply Ability | 50 sets per month |
| Safety facilities | warning light, E-stop | Usage | material transferring |
| Safety features | Warning alarm and End stop, end stop, Warning alarm | Place of Origin | China |
| Size | Customized Size | Packaging Details | The whole cart will be packed by the tarp, the parts will be packed by polywood case. |
| Color | Customized | Power supply | Battery |
| Model Number | KPJ-50T | Supply Ability | 50 sets per month |
| Certification | CE, ISO9001 | Control model | wireless remote control+ hand pendant |
| Brand Name | Remarkable | Payment Terms | T/T |
| Running speed | 0-20m/min | Load capacity | customized |
| Price | Negotiable | Delivery Time | 45 days |
| Minimum Order Quantity | 1 set | Power source | cable drum |
| Application | Industry metallurgy, Material handling/steel coil/industrial |

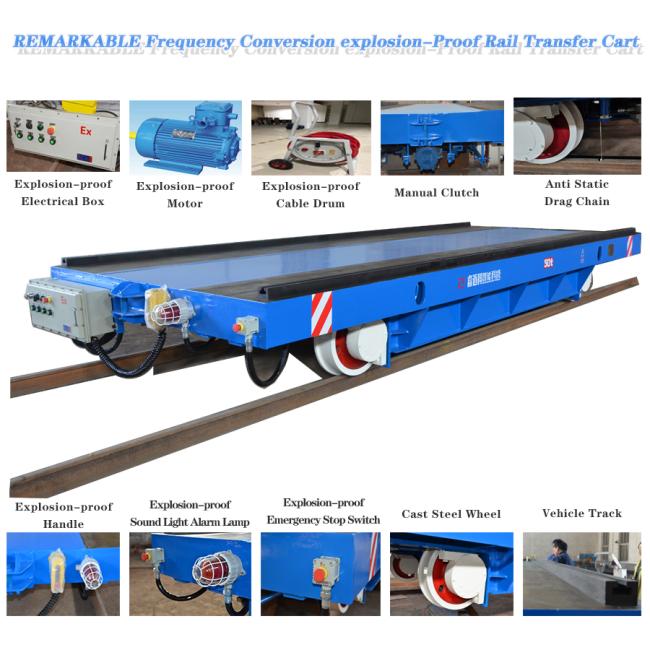

Material Handling Equipment In Factory For Metal Industry Apply Heavy Load Rail Transfer Cart 40-Ton Battery Track Transfer Vehicle, Customized Table Size, Load Safety Factor 1.3, Cable Drum Powered Supply, Mainly Used For Sandblasting Room And Paint Spraying Room. Therefore, The Motors And Cable Drum Are All Explosion-Proof, Which Greatly Improves The Safety Performance. Supply AC Electricity To The Control System, Which Makes The Cart Start, Stop, Go Forward, Back Forward And So On.
The Electric Industry Use Motorized Handling Wagon Used In Steel Plant Can Be Used In Many Occasions, Due To Its Simple Structure, Despite Of The Plant Or Assembly Line, Warehouse Or Port For Heavy Equipment, Industry Material, Mold.
The Kinds Of Shipyard Rail Guided Electric Platform Truck, Which Is Powered By Conductor Rail. It With Limitation Of Cable, It Can Get Power From Railways In Any Time. However, It Is Has Strict Requirement For The Railways, Which Have To Be Insulated. Its Rails Is Insulated With The Ground, And Its Wheels Are Insulated With The Ground.
Working Principle --- Electric Platform Truck
The Power Source AC380v Is Transformed Into AC36v Two-Phase And Are Respectively Connected To The Two Rails. Then The Wheels Conduct The AC36v On Rail Into The Electrical Appliance Box At The Bottom Of The Electric Platform Truck, And Then The AC36v Is Transformed Into DC36v And Then Control The DC Motor Through The DC Control System To Make The Electric Platform Truck Start, Stop, Go Forward And Backward.
| Technical parameters for Cable reel powered electric transfer carts KPJ series | ||||||||||
| Model | KPJ-6t | KPJ-10t | KPJ-16t | KPJ-25t | KPJ-40t | KPJ-63t | KPJ-100t | KPJ-160t | KPJ-200t | |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Countertop size | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| (mm) | Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1150 | 1250 | |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
| Wheel base A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1635 | 1735 | 1850 | 2000 | 2000 | |
| Wheel diameter(mm) | 300 | 300 | 400 | 400 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Motor model / power | YZ132M1-6 | YZ132M2-6 | YZ160M1-6 | YZ160M2-6 | YZ160L-6 | YZ160M2-6 | YZ160L-6 | |||
| (Kw) | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 2×7.5 | 2×11 | |||
| Power mode | Cable drum | AC380V | AC380V | AC380V | ||||||
| 3×2.5+1×1.5 | 3×4+1×2.5 | 3×6+1×4 | ||||||||
| Recommended track model | 24kg/m | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | ||||
| Number of wheels | 4 | 8 | ||||||||
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
