| Price | USD 10,000 set |
| MOQ | 1 |
| Delivery Time | 50 work days |
| Brand | Chuzhou HH non-woven |
| Place of Origin | Chuzhou |
| Certification | CE |
| Model Number | vacuum cleaning furnace |
| Packaging Details | plastic film wrapped or wooden box keep cargo safe |
| Supply Ability | 1 set 30 days |
| Place of Origin | Chuzhou | fuel | electric |
| Packaging Details | plastic film wrapped or wooden box keep cargo safe | usage | heat treatment furnace |
| Model Number | vacuum cleaning furnace | Supply Ability | 1 set 30 days |
| explosion proff | yes | Certification | CE |
| warrnty | 365 days | Cargo Name | non woven fabric vacuum Cleaning furnace |
| voltage | 200/380 v or follow customer | Brand Name | Chuzhou HH non-woven |
| Price | USD 10,000 set | Delivery Time | 50 work days |
| Minimum Order Quantity | 1 | temperature | 0 - 600 degree celsius |
| power | adjustable |
filter element cleaning vacuum calcination cleaning furnace
Product Description
Main
feature
1.Cleaning
is
totally
automatic
2. Precise temperature control
3. Suitable for different thermo plastic polymers
4. Short cleaning cycles and low energy consumption
5. Safety and no pollution
| Inner chamber size | 500*1400 mm |
| Parts size | P170mm*40mm |
| Guard(mm) | 600*2300 |
| Dimension (mm) | 4950*1600*2700 |
| Heating power | 24Kw |
| Vacuum pump | 2.35KW |
| Inner chamber size | Cleaned parts | Parts size | Quantity of parts | |
| 1 | 500*1400mm | spinneerets | P170mm*40mm | 12pcs |
| 2 | P600*1400mm(clean one kind parts at a time ,not all) | spinneerets | 360*175*75mm | 6pcs |
| spinneerets | 360*185*135mm | 6pcs | ||
| spinneerets | 310*120*40mm | 6pcs | ||
| spinneerets | 305*120*25mm | 6pcs | ||
| Screw | P35*960mm | 3pcs | ||
| 3 | P550*5000mm | Screw | P111*4700mm | 2pcs |

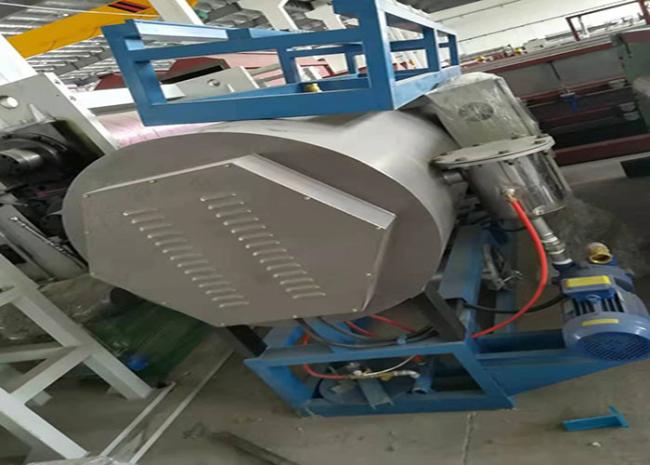

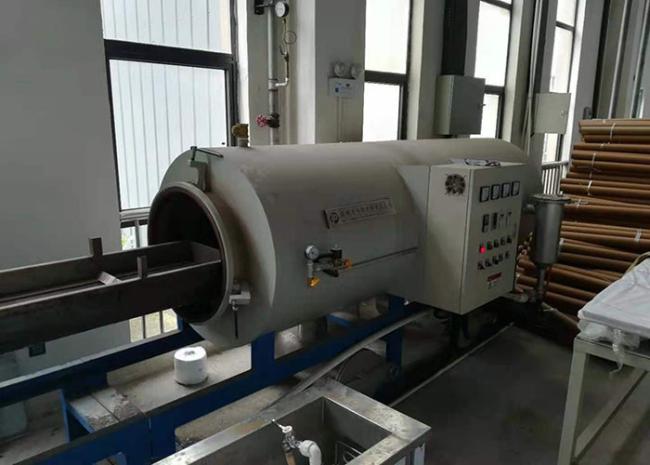

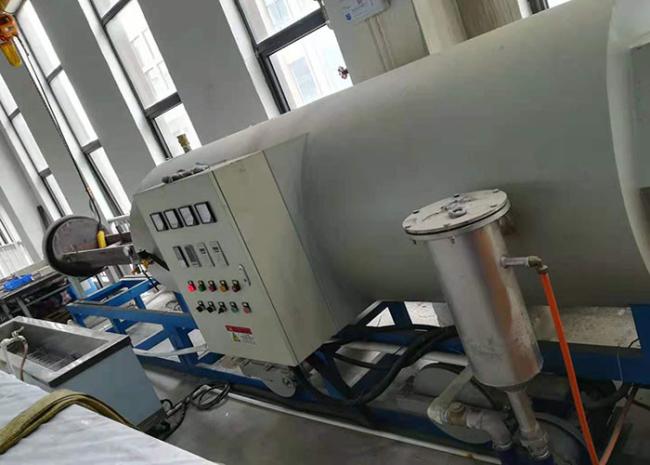

Vacuum cleaning furnace equipment structure
Vacuum cleaning furnace includes vacuum cleaning furnace body, furnace cover and the waste collection system, vacuum system, sealing system, electric heating system controlled by microcomputer, water cooling system and cleaning material loading and unloading system.
The working principle of
The use of chemical fiber polymer in the vacuum state of isolation of air and about 500℃ under the principle of cracking.
| Type | Model |
Guard
size
(mm) (L*W*H) |
External
size
(mm) (L*W*H) |
Power
(KW) Heat/vacuum mercury |
Water
consumption (m3 /h) |
|
Vertical type |
HHM | φ500×600 | 2000×1800×2100 | 18/2.2 | 0.23 |
| HHM | φ600×800 | 2200×2000×2200 | 21/2.2 | 0.23 | |
| HHM | φ800×1000 | 2600×2300×2500 | 27/3 | 0.28 | |
| HHM | φ1000×1200 | 2800×2500×2700 | 32/2.2 | 0.45 | |
|
Well type |
HHM | 1400×400×400 | 1600×1200×1000 | 21/2.2 | 0.28 |
| HHM | 2200×600×600 | 1800×1300×1100 | 27/3 | 0.28 | |
| HHM | 3200×600×600 | 2100×1500×1300 | 32/3 | 0.28 | |
| HHM | 4000×600×600 | 2100×1500×1600 | 36/4 | 0.45 | |
|
Horizontal type |
HHM | φ500×600 | 2000×1000×1300 | 18/2.2 | 0.23 |
| HHM | φ600×900 | 2400×1100×1600 | 21/2.2 | 0.23 | |
| HHM | φ800×1100 | 2600×1200×1800 | 27/3 | 0.28 | |
| HHM | φ1000×1500 | 2800×1400×2000 | 32/4 |
0.45 |
advantages

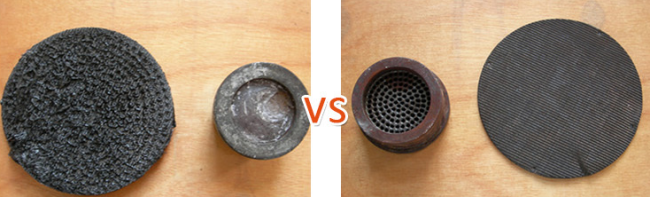

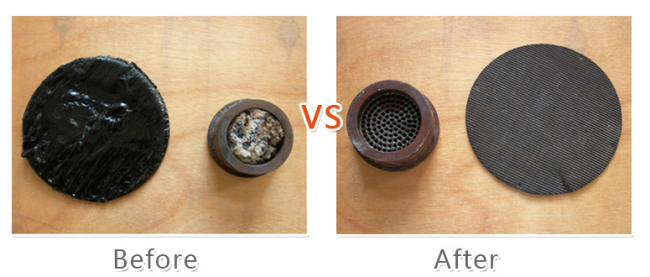

It has the advantages of low pollution to the environment, clean surface of the cleaning spinneret board, smooth hole, and can prolong the service life of the spinneret board and short working time, energy saving, simple operation, good cleaning effect, high degree of automation.
Apply to industry
The vacuum cleaning furnace is used to clean the common spinnerets, special-shaped spinnerets, fine denier spinnerets and component shells in polyester, polypropylene and non-woven industries of chemical fiber industry, as well as filter elements.

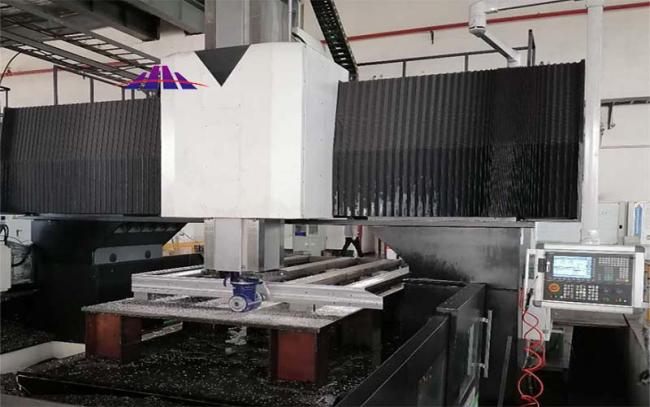

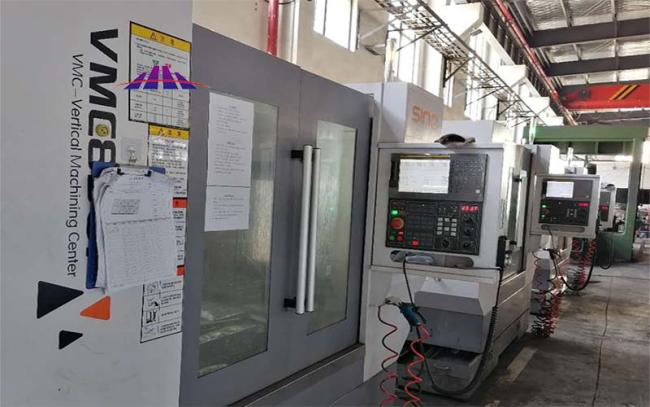

precisely CNC center hold machining parts beyond customer request
Exhibition show with customer
FAQ
1.Where
is
your
factory
located?
How
can
I
visit
there?
Our
factory
is
located
in
Chuzhou
City,
Anhui
Province,
China,
about
2
hours
high
speed
train
from
Shanghai
.All
our
clients,
from
home
or
abroad,
are
warmly
welcome
to
visit
us.
2.What
type
of
payment
do
you
have
available?
We
accept
TT
and
L/C,as
sample
order,the
Paypal,Western
nion,Money
gram
and
Aliexpress
is
available.
3..How
can
I
get
some
samples?
We
are
honored
to
offer
you
samples.
we
can
offer
sample
price
to
your
same
to
wholesale
price
in
the
first
time
4.How
does
your
factory
do
regarding
quality
control?
our
people
always
attach
great
importance
to
quality
controlling
from
the
very
beginning
to
the
very
end.
