polymer Vacuum Cleaning Furnace

Price	USD 10,000 set
MOQ	1
Delivery Time	50 work days
Brand	Chuzhou HH non-woven
Place of Origin	Chuzhou
Certification	CE
Model Number	1.6s 2.4s 3.4s 4.8s
Packaging Details	plastic film wrapped or wooden box keep cargo safe
Supply Ability	1 set 30 days

Product Details

Product Specification

Place of Origin	Chuzhou	cor component	immersion control
Diemension	295016001700	fuel	electrical
Packaging Details	plastic film wrapped or wooden box keep cargo safe	usage	cleaning furnace ,parts cleaning
Model Number	1.6s 2.4s 3.4s 4.8s	Supply Ability	1 set 30 days
key selling point	Accurate temperature control	Certification	CE
Brand Name	Chuzhou HH non-woven	working temperature	1 - 600 º
Item	non woven vacuum Cleaning furnace	material	polymer
Price	USD 10,000 set	Delivery Time	50 work days
Minimum Order Quantity	1

Product Description

high technology Vacuum cleaning Furnace For Heat Treatment Of non woven production line

Product description

Thermal cleaning equipment plastic melting vacuum furnace (also known as vacuum calciner) is suitable for cleaning and processing of chemical fiber industry, nylon and polypropylene production parts, spinnerets and filter elements, as well as plastic extrusion molds, cables and textile industries.

Our advantage

1. 30 years of heating equipment manufacturing experience.

2. 12 years of export experience.

3. Professional technical team to design the most suitable design for you.

4. Experienced, serious and responsible

Main feature
1.Cleaning is totally automatic

2. Precise temperature control

3. Suitable for different thermo plastic polymers

4. Short cleaning cycles and low energy consumption

5. Safety and no pollution

Model

Melt-blown Cloth Width

Guard

(mm)

Dimension

(mm)

Heating

Power

Vacuum Pump

HHM

>=1600mm

φ600*2300

4950×1600×1700

24KW

2.35KW

HHM

<1600mm

φ600*1300

2950×1600×1700

18KW

1.45KW

	Inner chamber size	Cleaned parts	Parts size	Quantity of parts
1	500*1400mm	spinneerets	P170mm*40mm	12pcs
2	P600*1400mm(clean one kind parts at a time ,not all)	spinneerets	36017575mm	6pcs
		spinneerets	360185135mm	6pcs
		spinneerets	31012040mm	6pcs
		spinneerets	30512025mm	6pcs
		Screw	P35*960mm	3pcs
3	P550*5000mm	Screw	P111*4700mm	2pcs

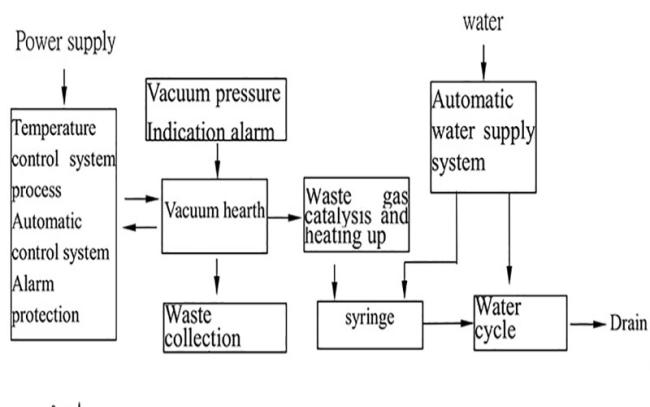

Vacuum cleaning furnace equipment structure

Vacuum cleaning furnace includes vacuum cleaning furnace body, furnace cover and garbage collection system, vacuum system, sealing system, microcomputer controlled electric heating system, water cooling system and cleaning material handling system.

The working principle of

The use of chemical fiber polymer in the vacuum state of isolation of air and about 500℃ under the principle of cracking.

Type	Model	Guard size (mm) (LWH)	External size (mm) (LWH)	Power (KW) Heat/vacuum mercury	Water consumption (m3 /h)
Vertical type	HHM	φ500×600	2000×1800×2100	18/2.2	0.23
	HHM	φ600×800	2200×2000×2200	21/2.2	0.23
	HHM	φ800×1000	2600×2300×2500	27/3	0.28
	HHM	φ1000×1200	2800×2500×2700	32/2.2	0.45
Well type	HHM	1400×400×400	1600×1200×1000	21/2.2	0.28
	HHM	2200×600×600	1800×1300×1100	27/3	0.28
	HHM	3200×600×600	2100×1500×1300	32/3	0.28
	HHM	4000×600×600	2100×1500×1600	36/4	0.45
Horizontal type	HHM	φ500×600	2000×1000×1300	18/2.2	0.23
	HHM	φ600×900	2400×1100×1600	21/2.2	0.23
	HHM	φ800×1100	2600×1200×1800	27/3	0.28
	HHM	φ1000×1500	2800×1400×2000	32/4	0.45

advantages

It has the advantages of low pollution to the environment, clean surface of the cleaning spinneret board, smooth hole, and can prolong the service life of the spinneret board and short working time, energy saving, simple operation, good cleaning effect, high degree of automation.

Apply to industry

The vacuum cleaning furnace is used to clean the common spinnerets, special-shaped spinnerets, fine denier spinnerets and component shells in polyester, polypropylene and non-woven industries of chemical fiber industry, as well as filter elements.

Working process

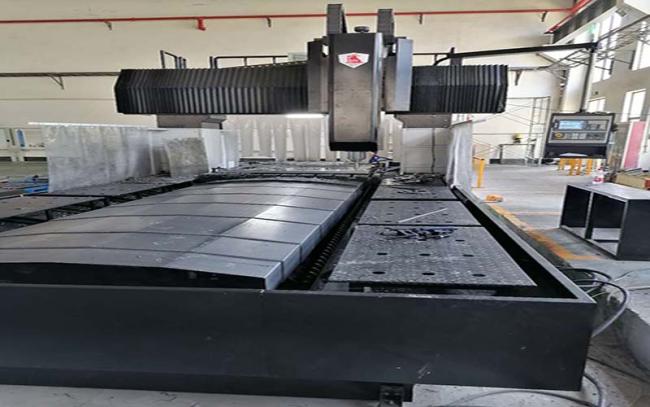

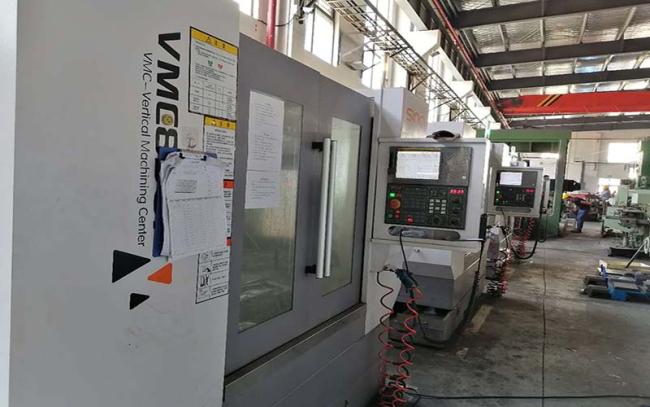

Precisely CNC center hold machining parts beyond customer request .

Exhibition show with customer

FAQ

Q: Are your company a trading one or a factory ?

A: We have our own factory and we have also register a trading company for more options (in order to make the business more simple) for more than 18 years focusing on test instruments field and 15 years exporting experience. As one of the toppest supplier in Chuzhou, OEM/ODM is warmly welcome from all of you as long as you confirm us with your requirement.

Q: How to choose the most suitable products?

A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

Q: What's the delivery term?

A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: How to install and use the product?

A:About the machine you got from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
