| Price | USD 10,000 set |
| MOQ | 1 |
| Delivery Time | 50 work days |
| Brand | Chuzhou HH non-woven |
| Place of Origin | Chuzhou |
| Certification | CE |
| Model Number | 1.6s 2.4s 3.4s 4.8s |
| Packaging Details | plastic film wrapped or wooden box keep cargo safe |
| Supply Ability | 1 set 30 days |
| Place of Origin | Chuzhou | Packaging Details | plastic film wrapped or wooden box keep cargo safe |
| usage | spinneret die cleaning | Model Number | 1.6s 2.4s 3.4s 4.8s |
| Max temperature | 600 ℃ | Supply Ability | 1 set 30 days |
| Feature | easy operation | Certification | CE |
| voltage | customized | capacity | 1 T - 50 T |
| Brand Name | Chuzhou HH non-woven | product Name | non woven vacuum Cleaning furnace |
| Price | USD 10,000 set | Delivery Time | 50 work days |
| Minimum Order Quantity | 1 | warranty | one year |
| Power | 20 -2500 kw |
spinning nozzle cleaning machine fluidized bed vacuum cleaning furnace Vacuum Cleaning Furnace
Application
Technical data
|
Chamber dimension of the furnace (mm) |
Overall dimension (mm) |
Designed TEM(℃) |
Working Tem (℃)
|
Accuracy Tem (℃) |
Working power (KW) |
Vacuum pump |
Hydraulic pressure of water (Mpa) |
Water consumption (L/H) |
|||||
| Mold | Dia | L | L | W | H |
Ultimate vacuum (Mpa) |
Evacuation Rate (m3/h) |
||||||
|
HHM-5
|
800 | 1400 | 3450 | 2100 | 1930 | 650 | 500 | ±1 | 28 | -0.085 | 80 | ≧0.25 | 120 |
| HHM-6 | 600 | 1700 | 4230 | 1910 | 1700 | 650 | 500 | ±1 | 30 | -0.085 | 80 | ≧0.25 | 120 |
| HHM-7 | 600 | 2200 | 5400 | 1910 | 1700 | 650 | 500 | ±1 | 40 | -0.085 | 80 | ≧0.25 | 120 |
| HHM-8 | 700 | 3300 | 7510 | 2010 | 1790 | 650 | 500 | ±1 | 65 | -0.085 | 80 | ≧0.25 | 120 |
Application
Inner
chamber
size
500*1400
mm
Parts
size
P170mm*40mm
Guard(mm)
600*2300
Dimension
(mm)
4950*1600*2700
Heating
power
24Kw
Vacuum
pump
2.35KW
Main
feature
1.Cleaning
is
totally
automatic
2. Precise temperature control
3. Suitable for different thermo plastic polymers
4. Short cleaning cycles and low energy consumption
5. Safety and no pollution
| Inner chamber size | 500*1400 mm |
| Parts size | P170mm*40mm |
| Guard(mm) | 600*2300 |
| Dimension (mm) | 4950*1600*2700 |
| Heating power | 24Kw |
| Vacuum pump | 2.35KW |
| Inner chamber size | Cleaned parts | Parts size | Quantity of parts | |
| 1 | 500*1400mm | spinneerets | P170mm*40mm | 12pcs |
| 2 | P600*1400mm(clean one kind parts at a time ,not all) | spinneerets | 360*175*75mm | 6pcs |
| spinneerets | 360*185*135mm | 6pcs | ||
| spinneerets | 310*120*40mm | 6pcs | ||
| spinneerets | 305*120*25mm | 6pcs | ||
| Screw | P35*960mm | 3pcs | ||
| 3 | P550*5000mm | Screw | P111*4700mm | 2pcs |
Vacuum cleaning furnace equipment structure
Vacuum cleaning furnace includes vacuum cleaning furnace body, furnace cover and the waste collection system, vacuum system, sealing system, electric heating system controlled by microcomputer, water cooling system and cleaning material loading and unloading system.
The working principle of
The use of chemical fiber polymer in the vacuum state of isolation of air and about 500℃ under the principle of cracking.
advantages
It has the advantages of low pollution to the environment, clean surface of the cleaning spinneret board, smooth hole, and can prolong the service life of the spinneret board and short working time, energy saving, simple operation, good cleaning effect, high degree of automation.
Apply to industry

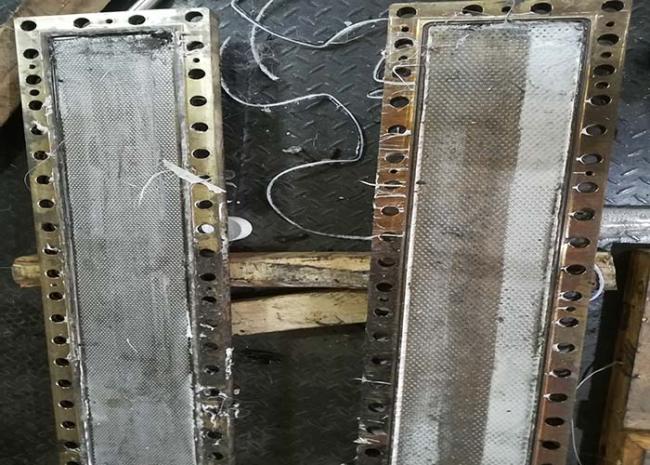

The vacuum cleaning furnace is used to clean the common spinnerets, special-shaped spinnerets, fine denier spinnerets and component shells in polyester, polypropylene and non-woven industries of chemical fiber industry, as well as filter elements.
After-sales service
12 months with proper operation by user, all the spare parts shall be replaced free of charge under guarantee period, fee for transportation and packing will be borne by users.
