| Price | negotiable |
| MOQ | 1 set |
| Delivery Time | 45 days |
| Brand | STT |
| Place of Origin | China |
| Certification | CE, etc |
| Model Number | BRJ1000-2 |
| Packaging Details | seaworthy packing |
| Payment Terms | T/T, L/C |
| Supply Ability | 100 sets per year |
| Machine color | optional | Place of Origin | China |
| Warranty | one year | Foil width | 200 - 1000mm |
| Packaging Details | seaworthy packing | Foil decoiler | 2 sets |
| Al foil thickness | 0.3 - 3.0mm | Model Number | BRJ1000-2 |
| Supply Ability | 100 sets per year | Certification | CE, etc |
| Brand Name | STT | Payment Terms | T/T, L/C |
| Price | negotiable | Delivery Time | 45 days |
| Product name | copper foil winding machine | Minimum Order Quantity | 1 set |
| Application | winding foil coil | Cu foil thickness | 0.2 - 2.0mm |
PLC Control Transformer Aluminium And Copper Foil Winding Machine TIG Welding
Description of copper foil winding machine BRJ1000-2
Copper foil winding machine BRJ1000-2 is mainly used to wind copper or aluminium foil to make coils for dry type transformer. The copper foil thickness the copper foil winding machine can be used to wind is from 0.2 mm to 2.0mm, and the aluminium foil thickness is from 0.3mm to 3.0mm. The copper foil winding machine is provided with two foil decoilers and two insulation decoilers for placing foil and insulation paper. With PLC control system, the copper foil winding machine can be operated easily.
Main components of copper foil winding machine BRJ1000-2
Technical parameters of copper foil winding machine BRJ1000-2
Typical standard specifications of copper foil winding machine BRJ1000-2 are shown below, however these can be easily modified as requested.
| Max. foil width: | 1,000mm |
| Max. Rotating Diameter: | 1,000mm |
| Wound Coil Shape: | oval, circle and rectangular, etc |
| Conductor Material: | Copper or Aluminum |
| Al Foil Thickness: | 0.3 - 3.0 mm |
| Cu Foil Thickness: | 0.2 - 2.0 mm |
| Conductor Material OD.: | 1,000mm |
| Conductor Material ID.: | 500mm |
| Foil Decoiler Diameter: | adjustable range 400-520mm |
| Winding Power: | 15KW |
| Winding Speed: | 0 ~ 20 rpm |
| Welding: | TIG |
| Cutting: | Electric rolling shear |
| Insulation Decoiler Shaft: | Expandable, pneumatic |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 - 9999.9 |

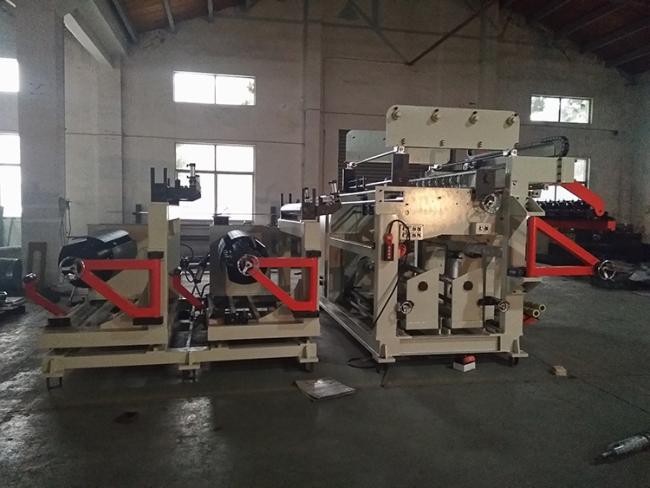

Fig 1: Copper foil winding machine BRJ1000-2's side view
Fig 2: Copper foil winding machine BRJ1000-2's welding pressure plate
