Two Servo Motors Driven Avvolgitore di fogli Copper Foil Winding Machine Making Reactor Coil

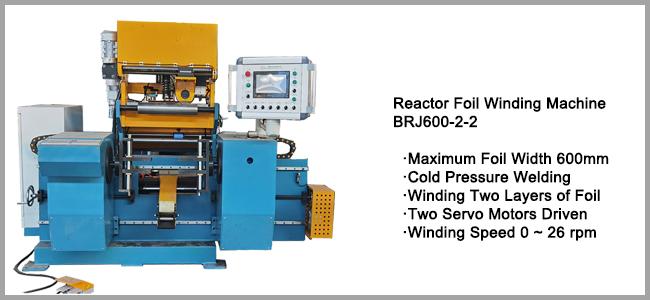

Description of copper foil winding machine BRJ600-2-2
Reactor copper foil winding machine BRJ600-2-2 is a professional equipment for making reactor foil coil and other similar products. The copper foil winding machine can handle the copper foil and aluminium foil with maximum width 600mm. The copper foil winding machine is provided with two servo motors to drive the two chucks, which makes the two drive stocks is with the same torque to wind the foil. The two chucks are used to clamp the iron core and the copper foil or aluminium foil is wound on the core directly. The copper foil winding machine can handle one or two layers of copper or aluminium foil and one or two layers of insulation paper at the same time. With PLC control system, the copper foil winding machine can be controlled precisely, which guarantees the wound coil’s quality.
Quick details of copper foil winding machine BRJ600-2-2
Technical parameters of copper foil winding machine BRJ600-2-2
Typical standard specifications of BRJ600-2-2 are shown below, however, these can be easily modified as requested.
| Foil width: | 250 ~ 600mm |
| Max. Finished Coil OD.: | Φ850mm |
| Finished Coil Shape: | Round, Rectangular, Oval, etc. |
| Conductor Foil Material: | Copper or Aluminum |
| Al Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Expanding Range: | Φ420 ~ Φ520mm |
| Max. Coil Weight: | 1,000KG |
| Motor Power: | 5.5KWx2 |
| Max. Winding Speed: | 26rpm |
| Welding System: | TIG |
| Insulation Decoiler Number: | 2 pcs |
| Insulation Decoiler Width: | 650mm |
| Insulation Decoiler Shaft: | pneumatic |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User interface: | 10 inches (254mm) touch screen |
| Counting Range: | 0 - 9999.9 |

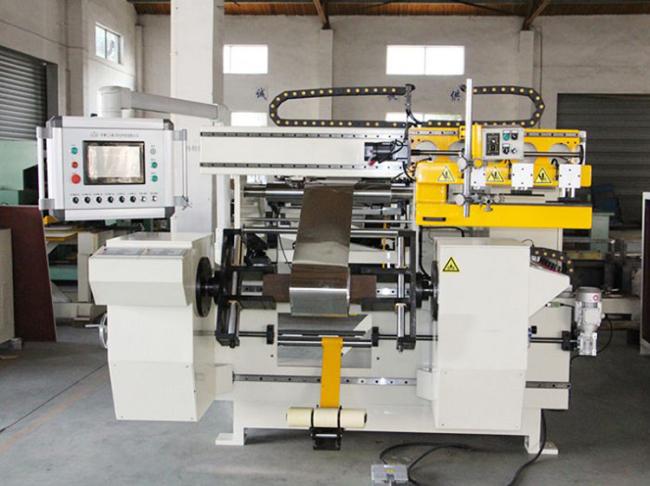

Fig 1: Copper foil winding machine BRJ600-2-2's front view

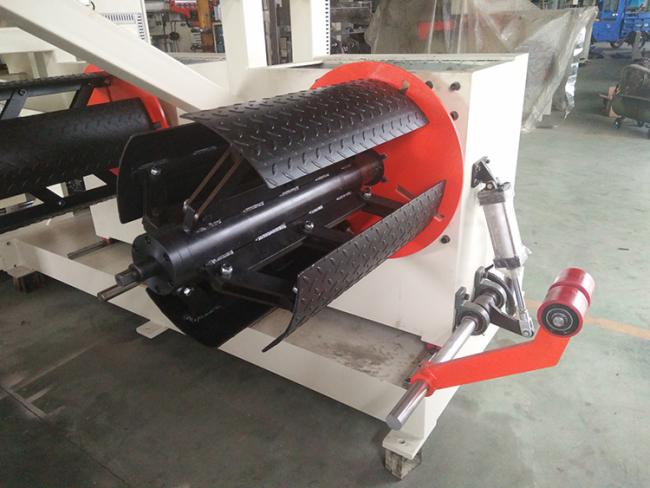

Fig 2: Copper foil winding machine BRJ600-2-2's foil decoiler
