| Price | negotiable |
| MOQ | 1 set |
| Delivery Time | 45 days |
| Brand | STT |
| Place of Origin | China |
| Certification | CE |
| Model Number | BRJ800-2 |
| Packaging Details | seaworthy packing |
| Payment Terms | T/T, L/C |
| Supply Ability | 100 sets per year |
| Welding speed | 0.8m/min | Place of Origin | China |
| Packaging Details | seaworthy packing | Deburring | pneumatic |
| Cleaning | pneumatic | Al foil thickness | 0.3 - 3.0mm |
| Model Number | BRJ800-2 | Supply Ability | 100 sets per year |
| Certification | CE | Brand Name | STT |
| Payment Terms | T/T, L/C | Price | negotiable |
| Delivery Time | 45 days | Product name | copper foil winding machine |
| Welding mode | TIG | Minimum Order Quantity | 1 set |
| Application | winding transformer coil | Cu foil thickness | 0.2 - 2.0mm |
Two Layers Winder Copper Foil Winding Machine Making Dry Type Transformer Coil
Description of copper foil winding machine BRJ800-2
Copper foil winding machine BRJ800-2 is mainly used to wind different specifications of copper or aluminium foil to make coils for cast resin transformer. The copper foil winding machine is provided with two foil decoilers, which can make the machine wind one or two layers of foil. TIG welding unit is adopted on the copper foil winding machine for welding foil and bus bar together. With the touch screen, it is very easy to operate the copper foil winding machine. The control system of the copper foil winding machine is based on PLC, which make the machine have many automation function.
Quick details of copper foil winding machine BRJ800-2
Technical parameters of copper foil winding machine BRJ800-2
Typical standard specifications of copper foil winding machine BRJ800-2 are shown below, however these can be easily modified as requested.
| Foil width: | 200 ~ 800mm |
| Max. OD. of Wound Coil: | 800mm |
| Wound Coil Shape: | oval, circle and rectangular,etc. |
| Conductor Foil Material OD.: | 1,000mm |
| Conductor Foil Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 850mm |
| Foil Decoiler Diameter: | Adjustable range 400-520mm |
| Winding Mandrel Size: | 80×80×1150 mm |
| Welding Mode: | TIG |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material Width: | 850mm |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 - 9999.9 |

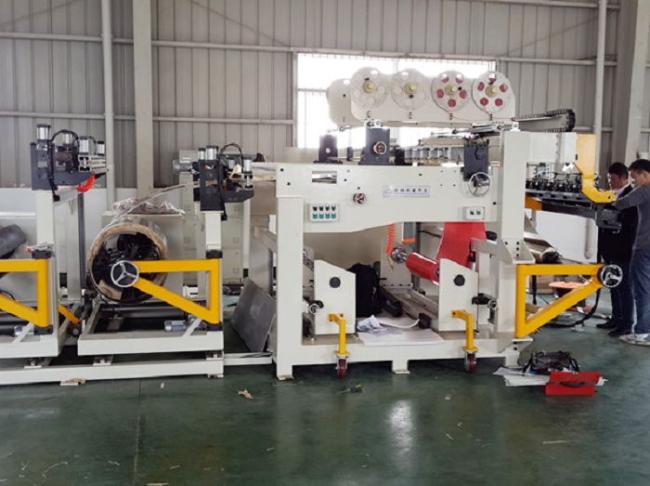

Fig 1: Copper foil winding machine's side view

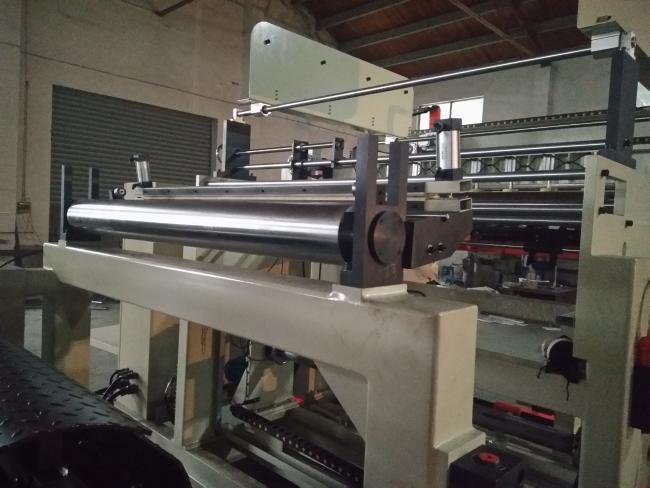

Fig 2: Copper foil winding machine's back view
