| Price | Negotiable |
| MOQ | 1000PCS |
| Delivery Time | 5-8working days |
| Brand | BOZEX |
| Place of Origin | SHENZHEN CHINA |
| Certification | ISO9001, DIN7982 , DIN7983 |
| Model Number | BZX.S090801-M8-60 |
| Packaging Details | box size: 20cm*20cm*10cm |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50Million pcs per day |
| Place of Origin | SHENZHEN CHINA | Thread Size(T) | M1.6 To M10 |
| Key Words | 304 Stainless Steel Pan Head Slotted Screws | Sample | Free sample provided |
| Packaging Details | box size: 20cm*20cm*10cm | Color | Natural, Black Oxide |
| Material | 304 Stainless Steel, Alloy Steel | Model Number | BZX.S090801-M8-60 |
| Supply Ability | 50Million pcs per day | Certification | ISO9001, DIN7982 , DIN7983 |
| Brand Name | BOZEX | Payment Terms | L/C, T/T, Western Union |
| Function | The surface of the mounting hole on the connector | Delivery Time | 5-8working days |
| Minimum Order Quantity | 1000PCS | Packaging | Inner Box + Carton Box + Pallet |
| Application | Machine, Industry, Building, Lamps, electrical equipment |
304 Stainless Steel Pan Head Slotted Screws
Quick Details
Name: 304 Stainless Steel Pan Head Slotted Screws
Material: 304 Stainless Steel, 316 Stainless Steel, 201 Stainless Steel
Size: M1.6 to M10 Length : 3 - 60mm
Service: OEM, ODM Trade term: FOB/EXW/CIF
Shipping Way: Air, Boat, Train, FEDEX, UPS, DHL
Products Description
Head screws, also known as flat machine screws and flat head screws, have a 90-degree cone on the head, which is similar to common wood screws. The head has a tool-tightening groove, such as a flat, cross, hexagon, etc. .
Screws play the role of connecting two or more objects. They are indispensable in daily life or industrial manufacturing. There are countersunk head bolts (slotted) and countersunk head bolts (with tenon).
304 Stainless Steel Pan Head Slotted Screws Shape
Cylindrical head. Half-sunk head. Sink head. Spherical cylindrical head. Pan head. Half round head. Hex Head.
On the surface of the mounting hole on the connecting piece, a 90-degree cone-shaped round socket is processed, and the head of the flat machine screw is in the round socket and is flush with the surface of the connecting piece. Flat machine screws are also used in some occasions with half-round head flat machine screws. These screws are more beautiful and are used in places where a little protrusion can be allowed on the surface.
When purchasers place orders for countersunk head screws, some of them are expressed directly in Chinese, and some professional purchasers generally use national codes or specific letters to express them. For countersunk screws, use letters to replace KM, FM, KA and so on.

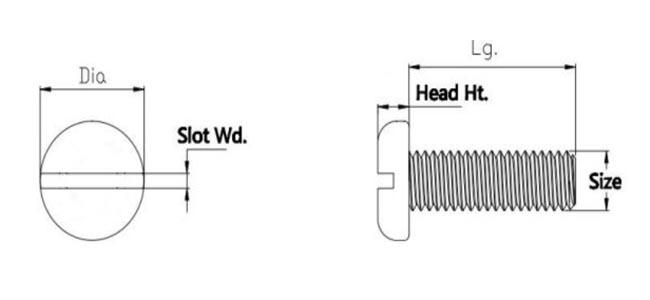

304 Stainless Steel Pan Head Slotted Screws Drawing and Parameter
| Size | Code | Slot Wd. | Dia | Lg. | Ht. |
| M1.6 x 3 | BZX.S090801-M1.6-3 | 0.6 | 3.2 | 3 | 1 |
| M1.6 x 4 | BZX.S090801-M1.6-4 | 0.6 | 3.2 | 4 | 1 |
| M1.6 x 5 | BZX.S090801-M1.6-5 | 0.6 | 3.2 | 5 | 1 |
| M1.6 x 6 | BZX.S090801-M1.6-6 | 0.6 | 3.2 | 6 | 1 |
| M1.6 x 8 | BZX.S090801-M1.6-8 | 0.6 | 3.2 | 8 | 1 |
| M1.6 x 10 | BZX.S090801-M1.6-10 | 0.6 | 3.2 | 10 | 1 |
| M1.6 x 12 | BZX.S090801-M1.6-12 | 0.6 | 3.2 | 12 | 1 |
| M1.6 x 14 | BZX.S090801-M1.6-14 | 0.6 | 3.2 | 14 | 1 |
| M1.6 x 16 | BZX.S090801-M1.6-16 | 0.6 | 3.2 | 16 | 1 |
| M2 x 3 | BZX.S090801-M2-3 | 0.7 | 4 | 4 | 1.3 |
| M2 x 4 | BZX.S090801-M2-4 | 0.7 | 4 | 4 | 1.3 |
| M2 x 5 | BZX.S090801-M2-5 | 0.7 | 4 | 5 | 1.3 |
| M2 x 6 | BZX.S090801-M2-6 | 0.7 | 4 | 6 | 1.3 |
| M2 x 8 | BZX.S090801-M2-8 | 0.7 | 4 | 8 | 1.3 |
| M2 x 10 | BZX.S090801-M2-10 | 0.7 | 4 | 10 | 1.3 |
| M2 x 12 | BZX.S090801-M2-12 | 0.7 | 4 | 12 | 1.3 |
| M2 x 14 | BZX.S090801-M2-14 | 0.7 | 4 | 14 | 1.3 |
| M2 x 16 | BZX.S090801-M2-16 | 0.7 | 4 | 16 | 1.3 |
| M2 x 18 | BZX.S090801-M2-18 | 0.7 | 4 | 18 | 1.3 |
| M2 x 20 | BZX.S090801-M2-20 | 0.7 | 4 | 20 | 1.3 |
| M2 x 22 | BZX.S090801-M2-22 | 0.7 | 4 | 22 | 1.3 |
| M2 x 25 | BZX.S090801-M2-25 | 0.7 | 4 | 25 | 1.3 |
| M3 x 4 | BZX.S090801-M3-4 | 1 | 5.6 | 4 | 1.8 |
| M3 x 5 | BZX.S090801-M3-5 | 1 | 5.6 | 5 | 1.8 |
| M3 x 6 | BZX.S090801-M3-6 | 1 | 5.6 | 6 | 1.8 |
| M3 x 8 | BZX.S090801-M3-8 | 1 | 5.6 | 8 | 1.8 |
| M3 x 10 | BZX.S090801-M3-10 | 1 | 5.6 | 10 | 1.8 |
| M3 x 12 | BZX.S090801-M3-12 | 1 | 5.6 | 12 | 1.8 |
| M3 x 14 | BZX.S090801-M3-14 | 1 | 5.6 | 14 | 1.8 |
| M3 x 16 | BZX.S090801-M3-16 | 1 | 5.6 | 16 | 1.8 |
| M3 x 18 | BZX.S090801-M3-18 | 1 | 5.6 | 18 | 1.8 |
| M3 x 20 | BZX.S090801-M3-20 | 1 | 5.6 | 20 | 1.8 |
| M3 x 22 | BZX.S090801-M3-22 | 1 | 5.6 | 22 | 1.8 |
| M3 x 25 | BZX.S090801-M3-25 | 1 | 5.6 | 25 | 1.8 |
| M3 x 30 | BZX.S090801-M3-30 | 1 | 5.6 | 30 | 1.8 |
| M3 x 35 | BZX.S090801-M3-35 | 1 | 5.6 | 35 | 1.8 |
| M3 x 40 | BZX.S090801-M3-40 | 1 | 5.6 | 40 | 1.8 |
| M3 x 45 | BZX.S090801-M3-45 | 1 | 5.6 | 45 | 1.8 |
| M3 x 50 | BZX.S090801-M3-50 | 1 | 5.6 | 50 | 1.8 |
| M8 x 10 | BZX.S090801-M8-10 | 2.31 | 16 | 10 | 4.8 |
| M8 x 12 | BZX.S090801-M8-12 | 2.31 | 16 | 12 | 4.8 |
| M8 x 14 | BZX.S090801-M8-14 | 2.31 | 16 | 14 | 4.8 |
| M8 x 16 | BZX.S090801-M8-16 | 2.31 | 16 | 16 | 4.8 |
| M8 x 18 | BZX.S090801-M8-18 | 2.31 | 16 | 18 | 4.8 |
| M8 x 20 | BZX.S090801-M8-20 | 2.31 | 16 | 20 | 4.8 |
| M8 x 22 | BZX.S090801-M8-22 | 2.31 | 16 | 22 | 4.8 |
| M8 x 25 | BZX.S090801-M8-25 | 2.31 | 16 | 25 | 4.8 |
| M8 x 30 | BZX.S090801-M8-30 | 2.31 | 16 | 30 | 4.8 |
| M8 x 35 | BZX.S090801-M8-35 | 2.31 | 16 | 35 | 4.8 |
| M8 x 40 | BZX.S090801-M8-40 | 2.31 | 16 | 40 | 4.8 |
| M8 x 45 | BZX.S090801-M8-45 | 2.31 | 16 | 45 | 4.8 |
| M8 x 50 | BZX.S090801-M8-50 | 2.31 | 16 | 50 | 4.8 |
| M8 x 55 | BZX.S090801-M8-55 | 2.31 | 16 | 55 | 4.8 |
| M8 x 60 | BZX.S090801-M8-60 | 2.31 | 16 | 60 | 4.8 |
| M10 x 20 | BZX.S090801-M10-20 | 2.81 | 20 | 20 | 6 |
| M10 x 30 | BZX.S090801-M10-30 | 2.81 | 20 | 30 | 6 |
| M10 x 35 | BZX.S090801-M10-35 | 2.81 | 20 | 35 | 6 |
