| Price | Negotiable |
| MOQ | 1000PCS |
| Delivery Time | 5-8working days |
| Brand | BOZEX |
| Place of Origin | SHENZHEN CHINA |
| Certification | ISO9001, DIN7982 , DIN7983 |
| Model Number | BZX.S1201-M8-12 |
| Packaging Details | box size: 20cm*20cm*10cm |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50Million pcs per day |
| Place of Origin | SHENZHEN CHINA | Key Words | 304 Stainless Steel Weld Head Screws |
| Packaging Details | box size: 20cm*20cm*10cm | Color | Weld Head Type |
| Port | Shenzhen, Ningbo, Shanghai | Model Number | BZX.S1201-M8-12 |
| Supply Ability | 50Million pcs per day | Certification | ISO9001, DIN7982 , DIN7983 |
| Brand Name | BOZEX | Payment Terms | L/C, T/T, Western Union |
| Delivery Time | 5-8working days | Minimum Order Quantity | 1000PCS |
| Original Material | Alloy Steel, 304 Stainless Steel, Carbon Steel | Screw Type | Thumb |
| Application | electrical equipment, Cars |
304
Stainless
Steel
Weld
Head
Screws
Of
Size
M8
For
Automation
Equipment
Quick
Details
Name:
304
Stainless
Steel
Weld
Head
Screws
Material:
Alloy,
304
Stainless
Steel,
316
Stainless
Steel,
201
Stainless
Steel
Screw
Size:
M5,
M6,
M8
Length
:
10
-
50mm
Service:
OEM,
ODM
Trade
term:
FOB/EXW/CIF
Shipping
Way:
Air,
Boat,
Train,
FEDEX,
UPS,
DHL
Packaging:
Inner
Small
box
+
carton
box
+
Pallet
Products
Description
304 Stainless Steel Weld Head Screws, also known as flat machine screws, flat head screws, their head is a 90-degree cone, similar to common wood screws, the head has a tool tightening groove, a flat, cross, hexagon, etc. .
Screws play the role of connecting two or more objects. They are indispensable in daily life or industrial manufacturing. There are countersunk head bolts (slotted) and countersunk head bolts (with tenon).
304
Stainless
Steel
Weld
Head
Screws
are
mostly
used
after
installation,
the
surface
of
the
parts
can
not
be
raised,
and
the
fastened
parts
have
two
thicknesses,
the
so-called
thick,
which
means
that
the
thickness
of
the
fastened
part
is
greater
than
the
thickness
of
the
head
of
the
countersunk
screw
Thickness.
After
the
screw
is
tightened,
there
is
still
a
part
of
the
screw
thread
that
does
not
enter
the
threaded
hole.
In
this
case,
the
countersunk
screw
can
definitely
be
tightened.
304
Stainless
Steel
Weld
Head
Screws

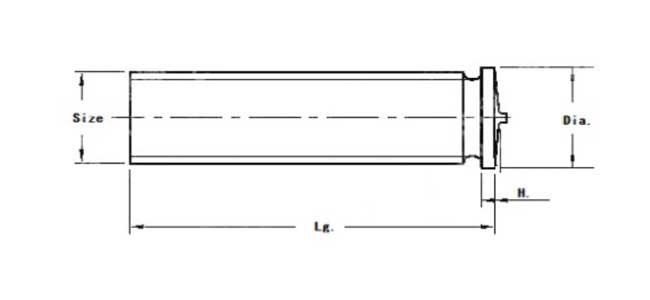

Drawing
and
Parameter
| Size | Code | Dia. | H. | Lg. |
| M3 x 30 | BZX.S1201-M3-30 | 4.65 | 1.3 | 30 |
| M3 x 25 | BZX.S1201-M3-25 | 4.65 | 1.3 | 25 |
| M3 x 20 | BZX.S1201-M3-20 | 4.65 | 1.3 | 20 |
| M3 x 16 | BZX.S1201-M3-16 | 4.65 | 1.3 | 16 |
| M3 x 12 | BZX.S1201-M3-12 | 4.65 | 1.3 | 12 |
| M3 x 10 | BZX.S1201-M3-10 | 4.65 | 1.3 | 10 |
| M3 x 8 | BZX.S1201-M3-8 | 4.65 | 1.3 | 8 |
| M3 x 6 | BZX.S1201-M3-6 | 4.65 | 1.3 | 6 |
| M4 x 40 | BZX.S1201-M4-45 | 5.65 | 1.3 | 40 |
| M4 x 35 | BZX.S1201-M4-35 | 5.65 | 1.3 | 35 |
| M4 x 30 | BZX.S1201-M4-30 | 5.65 | 1.3 | 30 |
| M4 x 25 | BZX.S1201-M4-25 | 5.65 | 1.3 | 25 |
| M4 x 20 | BZX.S1201-M4-20 | 5.65 | 1.3 | 20 |
| M4 x 16 | BZX.S1201-M4-16 | 5.65 | 1.3 | 16 |
| M4 x 12 | BZX.S1201-M4-12 | 5.65 | 1.3 | 12 |
| M4 x 10 | BZX.S1201-M4-10 | 5.65 | 1.3 | 10 |
| M4 x 8 | BZX.S1201-M4-8 | 5.65 | 1.3 | 8 |
| M4 x 6 | BZX.S1201-M4-6 | 5.65 | 1.3 | 6 |
| M5 x 50 | BZX.S1201-M5-50 | 6.68 | 1.4 | 50 |
| M5 x 40 | BZX.S1201-M5-45 | 6.68 | 1.4 | 40 |
| M5 x 35 | BZX.S1201-M5-35 | 6.68 | 1.4 | 35 |
| M5 x 30 | BZX.S1201-M5-30 | 6.68 | 1.4 | 30 |
| M5 x 25 | BZX.S1201-M5-25 | 6.68 | 1.4 | 25 |
| M5 x 20 | BZX.S1201-M5-20 | 6.68 | 1.4 | 20 |
| M5 x 16 | BZX.S1201-M5-16 | 6.68 | 1.4 | 16 |
| M5 x 12 | BZX.S1201-M5-12 | 6.68 | 1.4 | 12 |
| M5 x 10 | BZX.S1201-M5-10 | 6.68 | 1.4 | 10 |
| M5 x 8 | BZX.S1201-M5-8 | 6.68 | 1.4 | 8 |
| M6 x 50 | BZX.S1201-M6-50 | 7.68 | 1.4 | 50 |
| M6 x 45 | BZX.S1201-M6-45 | 7.68 | 1.4 | 45 |
| M6 x 40 | BZX.S1201-M6-40 | 7.68 | 1.4 | 40 |
| M6 x 35 | BZX.S1201-M6-35 | 7.68 | 1.4 | 35 |
| M6 x 30 | BZX.S1201-M6-30 | 7.68 | 1.4 | 30 |
| M6 x 25 | BZX.S1201-M6-25 | 7.68 | 1.4 | 25 |
| M6 x 20 | BZX.S1201-M6-20 | 7.68 | 1.4 | 20 |
| M6 x 16 | BZX.S1201-M6-16 | 7.68 | 1.4 | 16 |
| M6 x 12 | BZX.S1201-M6-12 | 7.68 | 1.4 | 12 |
| M6 x 10 | BZX.S1201-M6-10 | 7.68 | 1.4 | 10 |
| M6 x 8 | BZX.S1201-M6-8 | 7.68 | 1.4 | 8 |
| M8 x 50 | BZX.S1201-M8-50 | 9.72 | 1.5 | 50 |
| M8 x 45 | BZX.S1201-M8-45 | 9.72 | 1.5 | 45 |
| M8 x 40 | BZX.S1201-M8-40 | 9.72 | 1.5 | 40 |
| M8 x 35 | BZX.S1201-M8-35 | 9.72 | 1.5 | 35 |
| M8 x 30 | BZX.S1201-M8-30 | 9.72 | 1.5 | 30 |
| M8 x 25 | BZX.S1201-M8-25 | 9.72 | 1.5 | 25 |
| M8 x 20 | BZX.S1201-M8-20 | 9.72 | 1.5 | 20 |
| M8 x 16 | BZX.S1201-M8-16 | 9.72 | 1.5 | 16 |
| M8 x 12 | BZX.S1201-M8-12 | 9.72 | 1.5 | 12 |
