| Price | $10.00 - $60.00/ Meter |
| MOQ | 50 Meters |
| Delivery Time | 45 work days |
| Brand | UCER |
| Place of Origin | CHINA |
| Certification | ISO9001 |
| Model Number | TGSS |
| Packaging Details | a scraper conveyor chain + a poly bag + individual box + wooden case |
| Payment Terms | L/C, T/T, D/P, CAD |
| Supply Ability | 10000 Meters per Month |
| Standard or Nonstandard | Standard | OEM or not | Could OEM size |
| Place of Origin | CHINA | chain plate material | 45# or 40Cr |
| TGSS scraper chain for | Feed Mill food | Packaging Details | a scraper conveyor chain + a poly bag + individual box + wooden case |
| Color | Black & gray | Material | ALLOY |
| Model Number | TGSS | conveyor chain pitch | 68 100mm |
| Supply Ability | 10000 Meters per Month | Certification | ISO9001 |
| Brand Name | UCER | Payment Terms | L/C, T/T, D/P, CAD |
| Type | conveyor chain | Price | $10.00 - $60.00/ Meter |
| Delivery Time | 45 work days | Product name | Feed Mill Food Large Size Scraper Conveyor Roller Chain |
| Minimum Order Quantity | 50 Meters | Structure | Welded Chain |

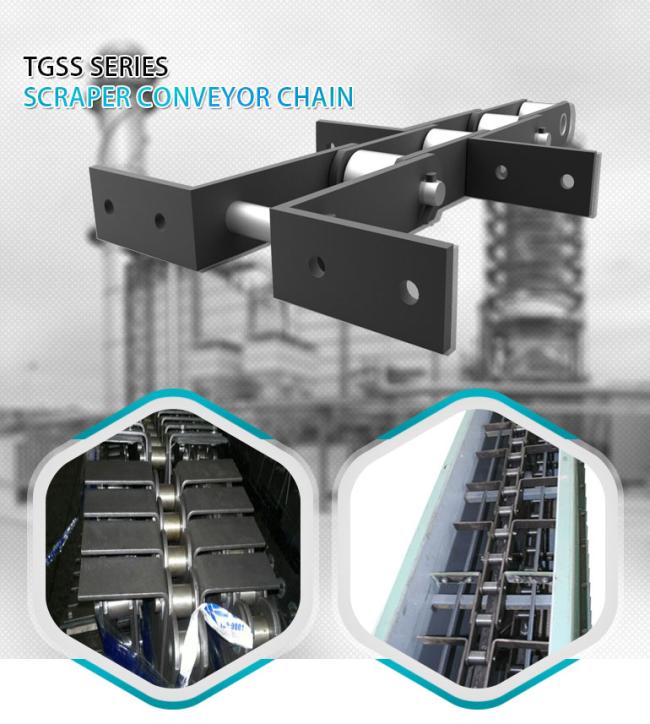

Feed Mill Food Large Size Scraper Conveyor Roller Chain TGSS Heavy Duty Conveyor Chains
Quick Details
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:TGSS series
Structure:Welded Chain
Function:Conveyor Chain
Material:ALLOY
Standard or Nonstandard:Standard
conveyor chains name:scraper conveyor chain
conveyor chain type:chain with scraper
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
TGSS scraper chain for:Feed Mill food
conveyor chain pitch:68 100mm
chain plate material:45# or 40Cr
packaging:standard
size&capacity:pls reference to the form

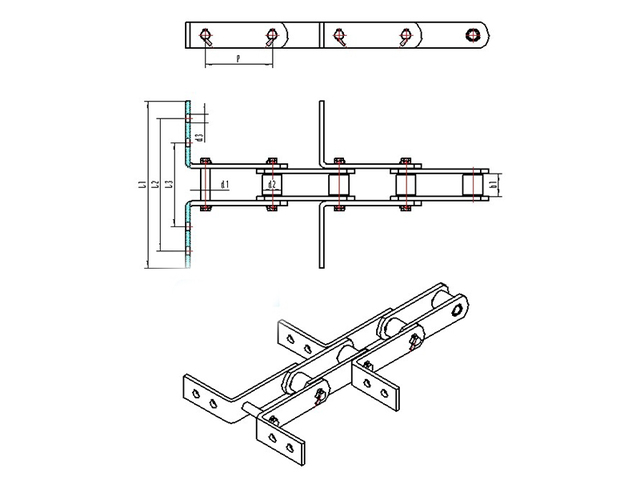

Specification
| Chain NO. | Pitch P | Inner link inner width b1 | Roller diameter d2 | Pin diameter d1 | Width L1/L2/L3 | Hole diameter d3 |
| mm | ||||||
| TGSS16 | 68 | 25.5 | 22.2 | 11.1 | 136/100/0 | 10 |
| TGSS20 | 68 | 25.5 | 22.2 | 11.1 | 170/120/0 | 10 |
| TGSS25 | 100 | 38 | 36 | 15.9 | 225/194/104 | 9 |
| TGSS32 | 100 | 38 | 36 | 15.9 | 295/245/115 | 9 |
| TGSS35 | 100 | 38 | 36 | 15.9 | 325/275/135 | 9 |
| TGSS40 | 125 | 50 | 32 | 20 | 285/265/155 | 10 |
| TGSS42 | 160 | 36 | 36 | 18 | 390/330/130 | 11 |
| TGSS50 | 200 | 42 | 40 | 20 | 465/420/160 | 13 |
| TGSS20A | 66.675 | 25.5 | 22.2 | 11.1 | 182/154/90 | 10 |
| TGSS32A | 66.675 | 25.5 | 22.2 | 11.1 | 295/195/95 | 10 |
Packing Delivery Shipping
Packaging Details:Packing: a scraper conveyor chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
