| Price | $10.00 - $50.00/ Meter |
| MOQ | 50 Meters |
| Delivery Time | 45 work days |
| Brand | UCER |
| Place of Origin | CHINA |
| Certification | ISO9001 |
| Model Number | FU series |
| Packaging Details | a chain + a poly bag + individual box + wooden case or as your request |
| Payment Terms | L/C, T/T, D/P, CAD |
| Supply Ability | 10000 Meters per Month |
| Standard or Nonstandard | Standard | OEM or not | Could OEM size |
| Roller diameter | 150mm | Place of Origin | CHINA |
| Packaging Details | a chain + a poly bag + individual box + wooden case or as your request | Color | Black & gray |
| pin material | 40Cr | Model Number | FU series |
| conveyor chain pitch | 320mm | Supply Ability | 10000 Meters per Month |
| Certification | ISO9001 | Brand Name | UCER |
| Payment Terms | L/C, T/T, D/P, CAD | Type | conveyor chain |
| Price | $10.00 - $50.00/ Meter | Delivery Time | 45 work days |
| Product name | Chain Scraper Conveyor Carbon Steel Conveyor Chain | Minimum Order Quantity | 50 Meters |
| Structure | Roller Chain | Pin diameter | 40mm |

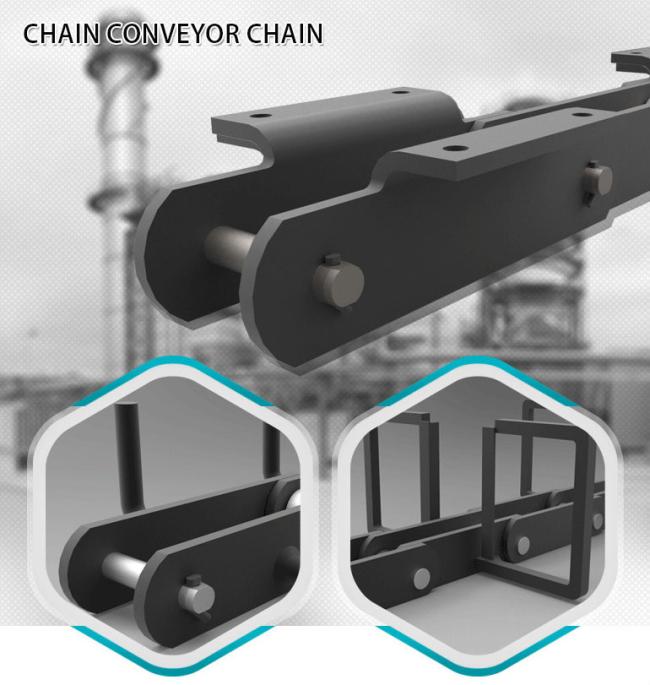

Chain Scraper Conveyor Carbon Steel Conveyor Chain
Quick Details
Finish:Black, Plain
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:FU series
Structure:Roller Chain
Function:Conveyor Chain
Standard or Nonstandard:Standard
chain name:scraper conveyor conveyor chain
conveyor chain type:with scraper attchments
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
surface treatment:shot peening
conveyor chain pitch:320mm
roller diameter:150mm
pin diameter:40mm
size&capacity:pls reference to the form
Material:40Cr
Supply Ability:10000 Meter/Meters per Month
Specification

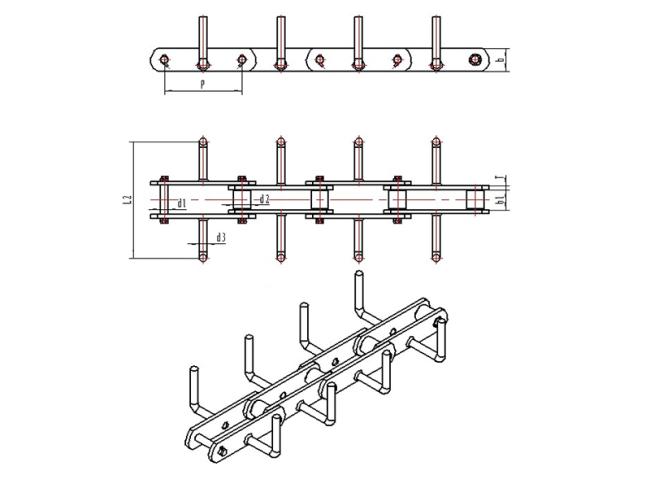

| Chain NO. | Pitch P | Inner link inner width b1 | Roller diameter d2 | Pin diameter d1 | Plate height h | Plate thickness T | Hole diameter d3 | Width L2 |
| mm | ||||||||
| FU150 | 101.6 | 27 | 26.5 | 11.5 | 35 | 6 | 12 | 120 |
| FU200 | 152.4 | 36.5 | 36 | 15.5 | 50 | 8 | 16 | 159 |
| FU270 | 152.4 | 36.5 | 36 | 15.5 | 50 | 8 | 16 | 224 |
| FU350 | 200 | 51.8 | 44.5 | 19.1 | 60 | 10 | 20 | 300 |
| FU410(Ordinary) | 200 | 51.8 | 44.5 | 19.1 | 60 | 10 | 20 | 350 |
| FU410(Strong type) | 200 | 57.6 | 18.5 | 22.2 | 75 | 10 | 20 | 350 |
| FU500 | 300 | 67.4 | 63.5 | 31.75 | 90 | 12 | 25 | 445 |
| FU600 | 300 | 67.4 | 63.5 | 31.75 | 90 | 12 | 25 | 540 |
| FU800 | 300 | 75 | 70 | 35 | 100 | 16 | 30 | 730 |
Packing Delivery Shipping
Packaging Details:Packing: a chain + a poly bag + individual box + wooden case or as your request
Port:shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
