| Price | Negotiation |
| MOQ | Negotiation |
| Delivery Time | 15-45 days |
| Brand | Antaeus |
| Place of Origin | Hunan,China |
| Certification | / |
| Model Number | AD-T006 |
| Packaging Details | Inner vacuum packaging, outside carton. |
| Payment Terms | T/T or Negotiation |
| Supply Ability | Full Supply |
| Thermal Shock Resistance room temperature to 850C | will not burst or leak after five operations | Place of Origin | Hunan,China |
| Helium Leak Rate | < 10-9 cc/sec | Packaging Details | Inner vacuum packaging, outside carton. |
| Product Name | Custom 95% 96% Electrical Ceramic Plate With Gold-Plated | Shock Resistance Functional | 196m/s² (20G above) |
| Material | Alumina (Aluminum Oxide, Al2O3) | Model Number | AD-T006 |
| Supply Ability | Full Supply | High Light | Metallized Alumina Ceramic / Metallized Ceramic Tube / Electrical Ceramic Components |
| Certification | / | Brand Name | Antaeus |
| Payment Terms | T/T or Negotiation | Shock Resistance Destructive | 490m/s²(50G above) |
| Price | Negotiation | Delivery Time | 15-45 days |
| Operate Time | ≤30ms | Minimum Order Quantity | Negotiation |
| Working Temperature | -40℃-125℃ | Release Time | ≤10ms |
| Insulation Resistance | 1000M Ω（1000VDC) | Tensile Strength, Kovar Cup Method | > 20,000 psi, avg. (138N/mm2) |

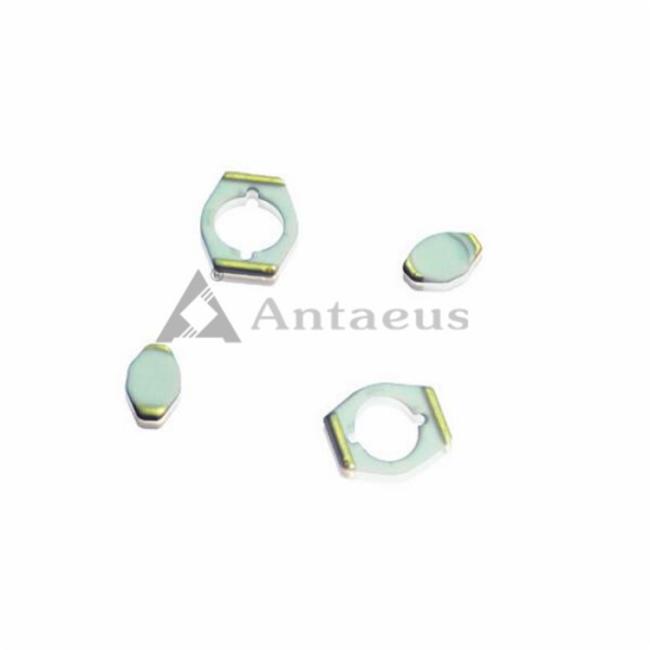

Custom 95% 96% Electrical Ceramic Plate With Gold-Plated
1. Description:
Our ceramic materials include 95% Alumina , 96% Alumina, 99.9% Alumina - Low Soda, Low Iron, 96% Alumina Low Soda. .All components - ceramics pressed in house, as well as metal components from our trusted vendors - are subject to inspection and must meet rigid standards of quality and specifications before introduced into production. Strict quality controls are maintained by inprocess testing at all stages of production.
2. Feature Advantages:
1) High elasticity modulus
2) High compressive strength.
3) Anti corrosion
4) Abrasion resistance
5) Impact resistance
6) High precision
7) High stability
8) Good advanced ceramic materials
9) High welding sealing performance
10) High hardness and high density
11) Low thermal conductivity
12) Chemical inertness
13) Good wear resistance
14) High Fracture toughness
15) Good insulation performance
16) High temperature resistance
17) A variety of specifications is available
18) Satisfy various technical requests
19) Lower medium spoilage
20) Stiffness texture
3. Material Features / Properties:
| Color | White or Ivory | White or Ivory | White or Ivory | |
| Density | g/cm 3 | 3.82 | 3.9 | 3.92 |
| Hardness | HRA | 83 | 85 | 85 |
| Flexural Strength | Mpa (psi*10 3 ) | 375 | 386 | 381 |
4. Technical Parameters:
| Technical Parameters of Ceramics | ||||||||
| Items | Test Conditions | Unit or Symbol | 99% AL2O3 | 95% AL2O3 | 90% AL2O3 | Zirconia | Steatite | Silicon Carbide |
| Volume Density | -- | g/cm3 | ≥3.70 | ≥3.62 | ≥3.40 | ≥5.90 | ≥2.60 | ≥3.08 |
| Tightness | -- | Pa·m³/s | ≤1.0×10-11 | ≤1.0×10-11 | ≤1.0×10-11 | - | - | - |
| Liquid Permeability | -- | -- | Pass | Pass | Pass | Pass | - | |
| Flexural Strength | - | MPa | ≥300 | ≥280 | ≥230 | ≥1100 | ≥120 | ≥400 |
| Elastic Modulus | - | GPa | - | ≥280 | ≥250 | ≥220 | - | 400 |
| Poisson Ratio | - | - | - | 0.20～0.25 | 0.20～0.25 | - | - | - |
| Thermal Shock Resistance | 800℃( Room Temperature) Cycle: 10 times | Pass | Pass | Pass | - | - | - | |
| Coefficient of Linear Expansion | 20℃～100℃ | ×10-6 K-1 | - | - | - | ≤8 | - | |
| 20℃～500℃ | ×10-6 K-1 | 6.5～7.5 | 6.5～7.5 | 6.5～7.5 | 6.5～11.2 | - | - | |
| 20℃～800℃ | ×10-6 K-1 | 6.5～8.0 | 6.5～8.0 | 6.3～7.3 | - | 4 | ||
| 20℃～1200℃ | ×10-6 K-1 | - | 7.0～8.5 | - | - | - | - | |
| Coefficient of Thermal Conductivity | 20℃ | W/(m·k) | - | - | - | - | - | 90～110 |
| 1000℃ | ||||||||
| Dielectric Constant | 1MHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | ≤7.5 | - |
| 1MHz 50℃ | - | - | 9.0～10 | - | - | - | - | |
| 10GHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | - | - | |
| Volume Resistivity | 100℃ | Ω·cm | ≥1.0×1013 | ≥1.0×1013 | ≥1.0×1013 | - | ≥1.0×1012 | - |
| 300℃ | ≥1.0×1013 | ≥1.0×1010 | ≥1.0×1013 | - | - | - | ||
| 500℃ | ≥1.0×109 | ≥1.0×108 | -- | - | - | - | ||
| Disruptive Strength | D.C | kV/mm | ≥17 | ≥15 | ≥15 | - | ≥20 | - |
| Chemical Durability | 1:9HCl | mg/c㎡ | ≤0.7 | ≤7.0 | - | - | - | - |
| 10%NaOH | mg/c㎡ | ≤0.1 | ≤0.2 | - | -- | - | - | |
| Grain Size | - | μm | - | 3~12 | - | - | - | - |
5. Process Flows:
Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing
6. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln
7. Detection Devices:
Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter
8. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service
9. Shipping and Package:
Loudi Antaeus Electronic Ceramic Co.,Ltd is located in China, and it is a manufacturer and international supplier of advanced technical ceramic products since 2004. Our customer base, which includes many Fortune 500 companies.
The Company has developed a wide range of ceramic and assemblies that are used in various industries such as new energy vehicles. Antaeus Ceramics is equipped with state-of-the-art manufacturing facilities and technical expertise to develop and supply ceramic components as per customer design and specifications.
Our high performance ceramic products made from al2o3 Alumina, Zirconia,among others finds wide application in various industries that requires high temperature resistance, chemical resistance, wear resistance, electrical insulation or mechanical strength.
Application:
These Advanced technical ceramic components find application in a number of industries, some of them being sealing technology, pumps, wire-drawing, battery/ cell manufacturing, sand-blasting, chemical, electronics, textile, automotive, etc.
Customized are welcome according to your drawings or samples.
FAQs (Frequently Asked Questions)
Q1.
Are
you
a
factory
or
trading
company?
A:
We
are
a
manufacturer
of
over
19
years
of
experience.
Welcome
to
visit
our
factory.Factory
address
is
Loudi
Economy
and
Technological
Development
Zone,Hunan,China.
Q2:
Do
you
send
a
sample
to
check?
A:
Sure,
sample
in
stock
is
free
and
freight
collect.
Q3:
When
can
I
get
the
price?
A:
We
regularly
quote
within
24
hours
after
we
get
your
inquiry.
If
urgent
,Please
call
us
or
chat
online.
Q4:What is your Capacity?
A:300,000
pcs
per
day;
Q5:
Are
the
ceramics
good
quality?
A:We
have
passed
the
complete
quality-control
system
ISO9001,IATF16949,
ISO14001
and
IRIS
certification.
We
have
more
than
200
advanced
testing
equipment
and
instruments,All
the
Alumina
ceramics
are
100%
fully
inspected,including
IQC,
IPQC,
FQC,
and
OQC
process.
Q6:What
is
the
Lead
time?
A: About 15-35 days,according to the quantities required;
Q7:
Is
it
available
to
provide
customized
products?
A:We
can
do
OEM
and
ODM.
Notes:please feel free to contact us for more details when you have any inquiry!
