| Price | $1-$10 |
| MOQ | 500 |
| Delivery Time | 15-45 days |
| Brand | Antaeus |
| Place of Origin | Hunan,China |
| Certification | / |
| Model Number | AD-M008 |
| Packaging Details | Inner vacuum packaging, outside carton. |
| Payment Terms | T/T or Negotiation |
| Supply Ability | Full Supply |
| Thermal Shock Resistance room temperature to 850C | will not burst or leak after five operations | Description | Vacuum Metallized Alumina Ceramics O Ring |
| Helium Leak Rate | < 10-9 cc/sec | Packaging Details | Inner vacuum packaging, outside carton. |
| Supply Ability | Full Supply | High Light | Metallized Alumina Ceramic / Metallized Ceramic Tube / Electrical Ceramic Components |
| Operate Time | ≤30ms | Minimum Order Quantity | 500 |
| Working Temperature | -40℃-125℃ | Release Time | ≤10ms |
| Insulation Resistance | 1000M Ω（1000VDC) | Tensile Strength, Kovar Cup Method | > 20,000 psi, avg. (138N/mm2) |
| Usage | Electrical Metallized Ceramic Tube | Place of Origin | Hunan,China |
| Product Name | Vacuum Metallized Alumina Ceramics O Ring Electrical Metallized Ceramic Tube | Shock Resistance Functional | 196m/s² (20G above) |
| Material | Metallized Alumina Ceramics | Model Number | AD-M008 |
| Certification | / | Brand Name | Antaeus |
| Payment Terms | T/T or Negotiation | Shock Resistance Destructive | 490m/s²(50G above) |
| Price | $1-$10 | Delivery Time | 15-45 days |
| Surface Finish | Smooth |

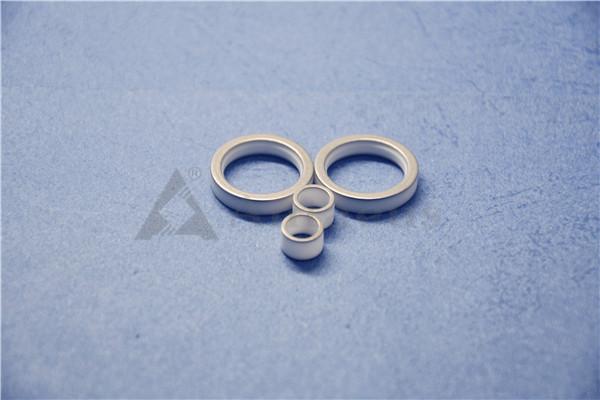

Vacuum Metallized Alumina Ceramic Component / Electrical Metallized Ceramic Tube
1. Description:
Ceramics materials can be divided into oxide ceramics and non-oxide ceramics according to their compositions. Many oxide ceramics are metal oxides forming oxide films on their surfaces, which are used as coating materials for the protection and functional layer of metallic materials (for example, aluminum, stainless steel or titanium alloys). Also, diverse non-oxide ceramic materials are used to functionalize the surfaces of metal materials.
2. Feature Advantages:
1) High elasticity modulus
2) High compressive strength.
3) Anti corrosion
4) Abrasion resistance
5) Impact resistance
6) High precision
7) High stability
8) Good advanced ceramic materials
9) High welding sealing performance
10) High hardness and high density
11) Low thermal conductivity
12) Chemical inertness
13) Good wear resistance
14) High Fracture toughness
15) Good insulation performance
16) High temperature resistance
17) A variety of specifications is available
18) Satisfy various technical requests
19) Lower medium spoilage
20) Stiffness texture
3. Material Features / Properties:
| Color | White or Ivory | White or Ivory | White or Ivory | |
| Density | g/cm 3 | 3.82 | 3.9 | 3.92 |
| Hardness | HRA | 83 | 85 | 85 |
| Flexural Strength | Mpa (psi*10 3 ) | 375 | 386 | 381 |
4. Technical Parameters:
| Technical Parameters of Ceramics | ||||||||
| Items | Test Conditions | Unit or Symbol | 99% AL2O3 | 95% AL2O3 | 90% AL2O3 | Zirconia | Steatite | Silicon Carbide |
| Volume Density | -- | g/cm3 | ≥3.70 | ≥3.62 | ≥3.40 | ≥5.90 | ≥2.60 | ≥3.08 |
| Tightness | -- | Pa·m³/s | ≤1.0×10-11 | ≤1.0×10-11 | ≤1.0×10-11 | - | - | - |
| Liquid Permeability | -- | -- | Pass | Pass | Pass | Pass | - | |
| Flexural Strength | - | MPa | ≥300 | ≥280 | ≥230 | ≥1100 | ≥120 | ≥400 |
| Elastic Modulus | - | GPa | - | ≥280 | ≥250 | ≥220 | - | 400 |
| Poisson Ratio | - | - | - | 0.20～0.25 | 0.20～0.25 | - | - | - |
| Thermal Shock Resistance | 800℃( Room Temperature) Cycle: 10 times | Pass | Pass | Pass | - | - | - | |
| Coefficient of Linear Expansion | 20℃～100℃ | ×10-6 K-1 | - | - | - | ≤8 | - | |
| 20℃～500℃ | ×10-6 K-1 | 6.5～7.5 | 6.5～7.5 | 6.5～7.5 | 6.5～11.2 | - | - | |
| 20℃～800℃ | ×10-6 K-1 | 6.5～8.0 | 6.5～8.0 | 6.3～7.3 | - | 4 | ||
| 20℃～1200℃ | ×10-6 K-1 | - | 7.0～8.5 | - | - | - | - | |
| Coefficient of Thermal Conductivity | 20℃ | W/(m·k) | - | - | - | - | - | 90～110 |
| 1000℃ | ||||||||
| Dielectric Constant | 1MHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | ≤7.5 | - |
| 1MHz 50℃ | - | - | 9.0～10 | - | - | - | - | |
| 10GHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | - | - | |
| Volume Resistivity | 100℃ | Ω·cm | ≥1.0×1013 | ≥1.0×1013 | ≥1.0×1013 | - | ≥1.0×1012 | - |
| 300℃ | ≥1.0×1013 | ≥1.0×1010 | ≥1.0×1013 | - | - | - | ||
| 500℃ | ≥1.0×109 | ≥1.0×108 | -- | - | - | - | ||
| Disruptive Strength | D.C | kV/mm | ≥17 | ≥15 | ≥15 | - | ≥20 | - |
| Chemical Durability | 1:9HCl | mg/c㎡ | ≤0.7 | ≤7.0 | - | - | - | - |
| 10%NaOH | mg/c㎡ | ≤0.1 | ≤0.2 | - | -- | - | - | |
| Grain Size | - | μm | - | 3~12 | - | - | - | - |
5. Process Flows:
Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing
6. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln
7. Detection Devices:
Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter
8. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service
9. Shipping and Package:
Loudi Antaeus Electronic Ceramic Co.,Ltd is a fully integrated technical ceramics manufacturer complete with a Ceramic Engineering Department, Development Labs, and Up-to-Date Quality Programs.We can assist with the development of your part, to find an economical solution perfect for your needs.
Precision, Technical Ceramic Insulators
We produce Alumina Ceramic components and assemblies for new energy vehicles ,Zirconia ceramic products . Antaeus Ceramics Company’s processes are dry pressing, extrusion, secondary machining, glazing, and both centerless and flat grinding. We have the finest equipment, enabling us to produce high quality technical ceramics at competitive prices, in the quantities you may require. Antaeus Ceramics offers its engineering abilities to help you with your design and material selection for your unique application.
Application:
These Advanced technical ceramic components find application in a number of industries, some of them being sealing technology, pumps, wire-drawing, battery/ cell manufacturing, sand-blasting, chemical, electronics, textile, automotive, etc.
Customized are welcome according to your drawings or samples.
FAQs
Q1.
Are
you
a
factory
or
trading
company?
A:
We
are
a
manufacturer
of
over
19
years
of
experience.
Welcome
to
visit
our
factory.Factory
address
is
Loudi
Economy
and
Technological
Development
Zone,Hunan,China.
Q2:
Do
you
send
a
sample
to
check?
A:
Sure,
sample
in
stock
is
free
and
freight
collect.
Q3:
When
can
I
get
the
price?
A:
We
regularly
quote
within
24
hours
after
we
get
your
inquiry.
If
urgent
,Please
call
us
or
chat
online.
Q4:What is your Capacity?
A:300,000
pcs
per
day;
Q5:
Are
the
ceramics
good
quality?
A:We
have
passed
the
complete
quality-control
system
ISO9001,IATF16949,
ISO14001
and
IRIS
certification.
We
have
more
than
200
advanced
testing
equipment
and
instruments,All
the
Alumina
ceramics
are
100%
fully
inspected,including
IQC,
IPQC,
FQC,
and
OQC
process.
Q6:What
is
the
Lead
time?
A: About 15-35 days,according to the quantities required;
Q7:
Is
it
available
to
provide
customized
products?
A:Yes,and
we
can
do
OEM
and
ODM.
Loudi Antaeus Electronic Ceramic Co.,Ltd
Factory address:Loudi Economy and Technological Development Zone,Hunan,China.
Contact person:Alice Deng
Tel:+8615073852630 (wechat)
Mail: alice@andidz.com
Skype: alicedeng0629
