| Price | $1-$10 |
| MOQ | 100 |
| Delivery Time | 15-45 days |
| Brand | Antaeus |
| Place of Origin | Hunan,China |
| Certification | / |
| Model Number | AD-M003 |
| Packaging Details | Inner vacuum packaging, outside carton. |
| Payment Terms | T/T or Negotiation |
| Supply Ability | Full Supply |
| Thermal Shock Resistance room temperature to 850C | will not burst or leak after five operations | Place of Origin | Hunan,China |
| Description | Iso9001 Ceramic Protection Tube | key word | Metallized Alumina Ceramics Insulation Tube IATF16949 |
| Helium Leak Rate | < 10-9 cc/sec | Packaging Details | Inner vacuum packaging, outside carton. |
| Product Name | Iso9001 Ceramic Protection Tube Electrical 95% Metallized Alumina Ceramics Insulation Tube IATF16949 | Shock Resistance Functional | 196m/s² (20G above) |
| Material | Alumina (Aluminum Oxide, Al2O3) | Model Number | AD-M003 |
| Supply Ability | Full Supply | High Light | Metallized Alumina Ceramic / Metallized Ceramic Tube / Electrical Ceramic Components |
| Certification | / | Brand Name | Antaeus |
| Payment Terms | T/T or Negotiation | Shock Resistance Destructive | 490m/s²(50G above) |
| Price | $1-$10 | Delivery Time | 15-45 days |
| Operate Time | ≤30ms | Minimum Order Quantity | 100 |
| Working Temperature | -40℃-125℃ | Release Time | ≤10ms |
| Insulation Resistance | 1000M Ω（1000VDC) | Tensile Strength, Kovar Cup Method | > 20,000 psi, avg. (138N/mm2) |

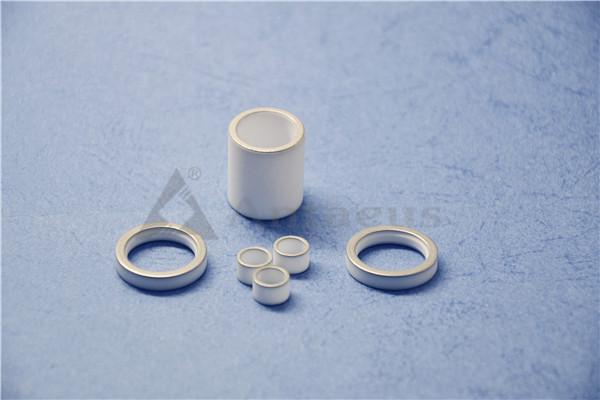

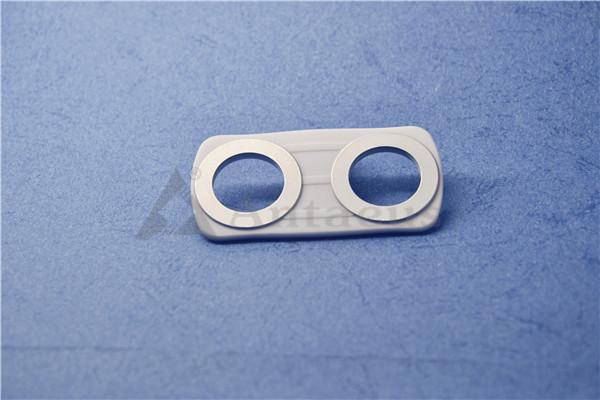

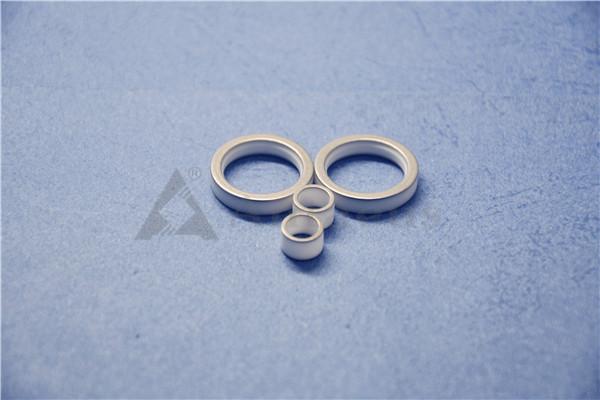

Iso9001 Ceramic Protection Tube Electrical 95% Metallized Alumina Ceramics Insulation Tube IATF16949
1. Description:
Surface coating can allow the bulk materials to remain unchanged, while the surface functionality is engineered to afford a more wanted characteristic. Ceramic coatings are considered as ideal coatings on metal which can significantly improve the surface properties of metal materials including anti-fouling, self-cleaning, corrosion resistance, wear resistance, oil/water separation and biocompatibility. Furthermore, various techniques have been utilized to fabricate a range of different ceramic coatings with more desirable properties on metal materials, which make the materials widely used in service environment. This chapter focus will be on the types, fabrication methods, surface properties and applications of ceramics coated metal materials.
2. Feature Advantages:
1) High elasticity modulus
2) High compressive strength.
3) Anti corrosion
4) Abrasion resistance
5) Impact resistance
6) High precision
7) High stability
8) Good advanced ceramic materials
9) High welding sealing performance
10) High hardness and high density
11) Low thermal conductivity
12) Chemical inertness
13) Good wear resistance
14) High Fracture toughness
15) Good insulation performance
16) High temperature resistance
17) A variety of specifications is available
18) Satisfy various technical requests
19) Lower medium spoilage
20) Stiffness texture
3. Material Features / Properties:
| Color | White or Ivory | White or Ivory | White or Ivory | |
| Density | g/cm 3 | 3.82 | 3.9 | 3.92 |
| Hardness | HRA | 83 | 85 | 85 |
| Flexural Strength | Mpa (psi*10 3 ) | 375 | 386 | 381 |
4. Technical Parameters:
| Technical Parameters of Ceramics | ||||||||
| Items | Test Conditions | Unit or Symbol | 99% AL2O3 | 95% AL2O3 | 90% AL2O3 | Zirconia | Steatite | Silicon Carbide |
| Volume Density | -- | g/cm3 | ≥3.70 | ≥3.62 | ≥3.40 | ≥5.90 | ≥2.60 | ≥3.08 |
| Tightness | -- | Pa·m³/s | ≤1.0×10-11 | ≤1.0×10-11 | ≤1.0×10-11 | - | - | - |
| Liquid Permeability | -- | -- | Pass | Pass | Pass | Pass | - | |
| Flexural Strength | - | MPa | ≥300 | ≥280 | ≥230 | ≥1100 | ≥120 | ≥400 |
| Elastic Modulus | - | GPa | - | ≥280 | ≥250 | ≥220 | - | 400 |
| Poisson Ratio | - | - | - | 0.20～0.25 | 0.20～0.25 | - | - | - |
| Thermal Shock Resistance | 800℃( Room Temperature) Cycle: 10 times | Pass | Pass | Pass | - | - | - | |
| Coefficient of Linear Expansion | 20℃～100℃ | ×10-6 K-1 | - | - | - | ≤8 | - | |
| 20℃～500℃ | ×10-6 K-1 | 6.5～7.5 | 6.5～7.5 | 6.5～7.5 | 6.5～11.2 | - | - | |
| 20℃～800℃ | ×10-6 K-1 | 6.5～8.0 | 6.5～8.0 | 6.3～7.3 | - | 4 | ||
| 20℃～1200℃ | ×10-6 K-1 | - | 7.0～8.5 | - | - | - | - | |
| Coefficient of Thermal Conductivity | 20℃ | W/(m·k) | - | - | - | - | - | 90～110 |
| 1000℃ | ||||||||
| Dielectric Constant | 1MHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | ≤7.5 | - |
| 1MHz 50℃ | - | - | 9.0～10 | - | - | - | - | |
| 10GHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | - | - | |
| Volume Resistivity | 100℃ | Ω·cm | ≥1.0×1013 | ≥1.0×1013 | ≥1.0×1013 | - | ≥1.0×1012 | - |
| 300℃ | ≥1.0×1013 | ≥1.0×1010 | ≥1.0×1013 | - | - | - | ||
| 500℃ | ≥1.0×109 | ≥1.0×108 | -- | - | - | - | ||
| Disruptive Strength | D.C | kV/mm | ≥17 | ≥15 | ≥15 | - | ≥20 | - |
| Chemical Durability | 1:9HCl | mg/c㎡ | ≤0.7 | ≤7.0 | - | - | - | - |
| 10%NaOH | mg/c㎡ | ≤0.1 | ≤0.2 | - | -- | - | - | |
| Grain Size | - | μm | - | 3~12 | - | - | - | - |
5. Process Flows:
Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing
6. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln
7. Detection Devices:
Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter
8. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service
9. Shipping and Package:
Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
