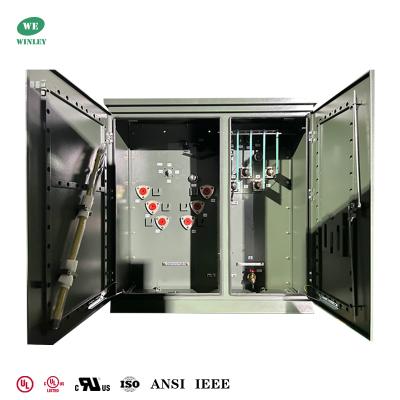

UL Listed 3 Phase Pad Mounted Transformer 1500Kva 12.47KV To 480Y/277 ANSI DOE IEEE CSA standards
Summarization

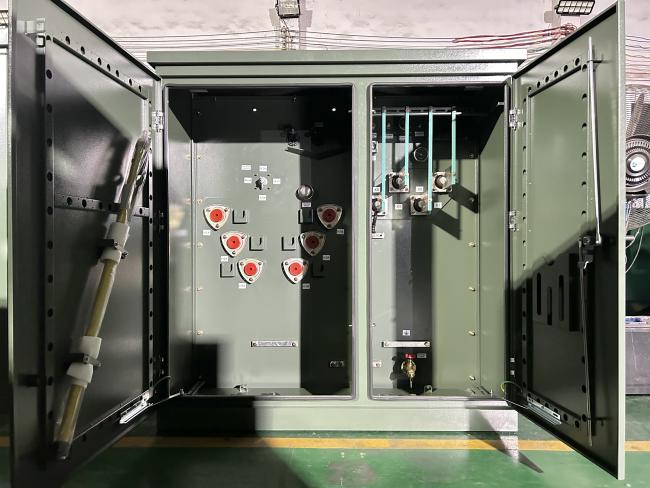

The ZGS-H-1500/12.47 is an oil filled distribution transformer designed for outdoor .Integrate the transformer core, windings, high-voltage load switches, fuses and other auxiliary equipment in a sealed enclosure,It comes in live front and dead front constructions ,is designed for installation directly on the ground without additional protective enclosures.
Design capabilities
Capacity:
45
kVA—5500
kVA
Primary
Voltage
:
34.5KV,24.94KV,13.8KV,13.2KV,12.47KV,4.16KV
or
other
Secondary
Voltage:
690Y/400,480Y/277,
208Y/120,240Y/120
or
othe
Feed
Type:
Loop
feed
or
Radial
feed
Standards:
IEEE/ANSI(C57.12.34
),
CSA(C227.4
&
C227.5),
IEC,
DOE,
NEMA
Why choose us

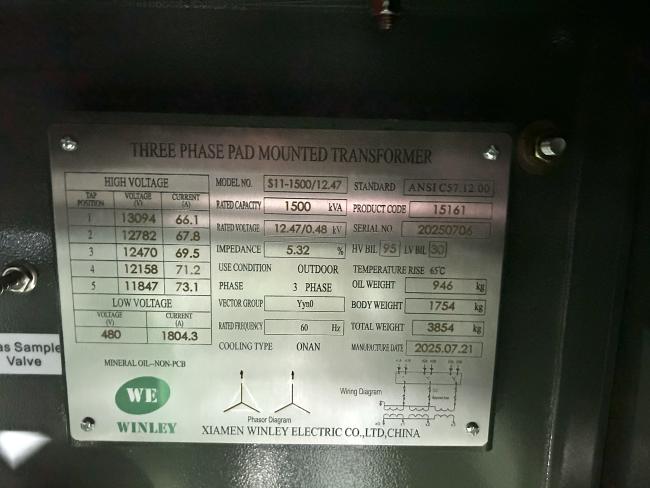

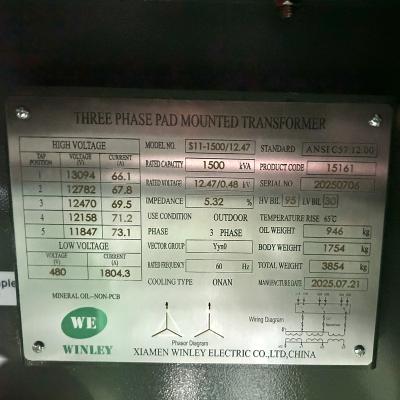

Main data

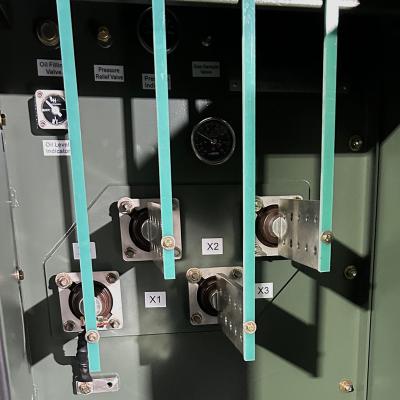

| Particulars | Unit | Specification | |
| Type | ~ | pad mounted, oil filled | |
| Rated capacity | kVA | 1500 | |
| No. of Phase | ~ | 3 phases | |
| Primary voltage | V | 12470GrdY/7200 | |
| Primary bushing | ~ | (6)15kV class,BIL95kV 200A Well&insert | |
| BIL | kV | 95 | |
| Secondary voltage | V | 480Y/277 | |
| Secondary buhsing | ~ | 10-hole NEMA spade | |
| BIL | kV | 30 | |
| Tapping type | ~ | off-circuit | |
| Tapping range | % | ±2*2.5 | |
| Cooling method | ~ | ONAN | |
| Rated frequency | Hz | 60 | |
| Vector group | ~ | Yyn0 | |
| Insulation class | ~ | A (105℃) | |
| Temperature rise | ℃ | 65 | |

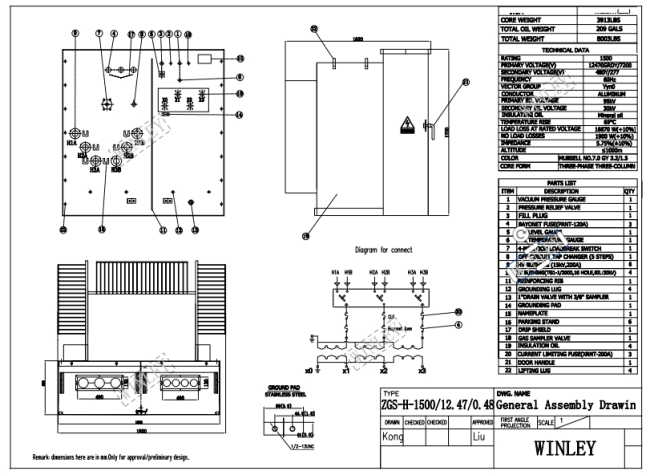

Technical drawings
Standard Features
Optional accessories
Testing
Specification
|
Rated
Power (KVA) |
High
Voltage (KV) |
Low
Voltage (V) |
No-load
Loss (W) |
On-load
Loss (W) |
Height (mm) |
Depth (mm) |
Width (mm) |
Weight (kg) |
Weight (Lbs) |
| 75KVA |
34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others |
277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347 |
180 | 1250 | 1430 | 910 | 1930 | 645 | 1422 |
| 150KVA | 280 | 2200 | 1530 | 980 | 1510 | 989 | 2180 | ||
| 300KVA | 480 | 3650 | 1680 | 1080 | 1660 | 1415 | 3119 | ||
| 500KVA | 680 | 5100 | 1790 | 1160 | 1810 | 1905 | 4200 | ||
| 750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 2755 | 6074 | ||
| 1000KVA | 1150 | 10300 | 1854 | 1549 | 1651 | 3235 | 7132 | ||
| 1500KVA | 1640 | 14500 | 2150 | 1570 | 2210 | 5835 | 12864 | ||
| 2000KVA | 2160 | 20645 | 2220 | 1600 | 2380 | 6430 | 14175 | ||
| 2500KVA | 2680 | 23786 | 2330 | 1650 | 3070 | 8865 | 19544 | ||
| 3000KVA | 3300 | 30300 | 2460 | 1850 | 3260 | 11300 | 24912 | ||
| 3735KVA | 4125 | 37875 | 2680 | 2060 | 4080 | 14400 | 31746 |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
