| Price | $2000-$150000 |
| MOQ | 1unit |
| Delivery Time | 30days |
| Brand | WINLEY |
| Place of Origin | CHINA |
| Certification | ISO,CE |
| Model Number | 750 KVA |
| Packaging Details | Plywood case |
| Payment Terms | T/T |
| Supply Ability | 1000set/month |
| Rated Capacity | 100~2500kVA Or Customized | Place of Origin | CHINA |
| Noise | <50dB | Packaging Details | Plywood case |
| Cooling Method | ONAN | Material | Copper/Aluminum |
| Model Number | 750 KVA | Supply Ability | 1000set/month |
| Certification | ISO,CE | Brand Name | WINLEY |
| Payment Terms | T/T | Type | Live/Dead Front |
| Temperature Rise | ≤75K | Price | $2000-$150000 |
| Delivery Time | 30days | Efficiency | ≥99% |
| Minimum Order Quantity | 1unit | Frequency | 50Hz/60Hz |
750 kva Three Phase Deadfront Pad Mount compact Transformer
Features
1)The
oil
tank
adopts
corrugated
sheet,
which
has
a
breathing
function
to
compensate
the
volume
change
of
oil
caused
by
temperature
changes,
so
this
product
has
no
oil
storage
tank,
which
obviously
reduces
the
height
of
the
transformer.
2)Since
the
corrugated
sheet
replaces
the
oil
storage
tank,
the
transformer
oil
is
isolated
from
the
outside
world,
which
effectively
prevents
the
entry
of
oxygen
and
water,
which
leads
to
the
decline
of
insulation
performance
| Number of Phases | Three Phases |
| Product Name | Deadfront Pad Mount Transformer Compact |
| Winding Material | Enameled copper wire or enameled aluminum wire |
| Rated Power | 100~2500kVA Or Customized |
| Input Voltage | 6.3~66KV Or Customized |
| Output Voltage | 120,240,380V,400V,Or Customized |
| Frequency | 50/60Hz |
| Connection Type | DYN11/YYN0 |
| Insulation Level | A/E |
| Enclosures Protection Level | IP20/IP30/IP32/IP40 |
| Cooling Method | KNAN/ONAN |
| Winding Material | Copper Or Aluminum |
| Temperature Rise | ≤115K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Impedance Voltage | about 4.5% |
| Noise leve | <50dB |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Service Condition | Outdoor |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |

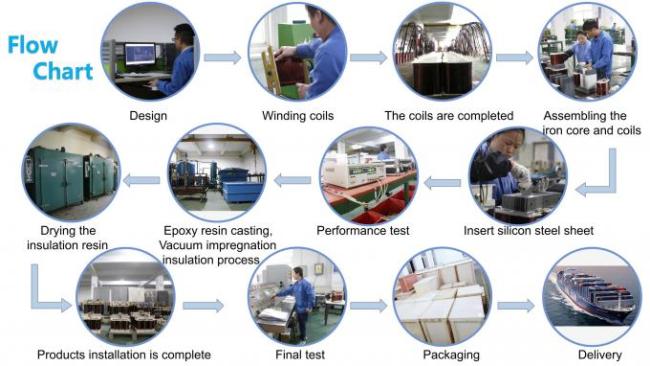

Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
