Stainless Steel 904L Woven Wire Mesh Superior Corrosion Resistance

Price	Negotiable
MOQ	5 Rolls
Delivery Time	Immediately
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO

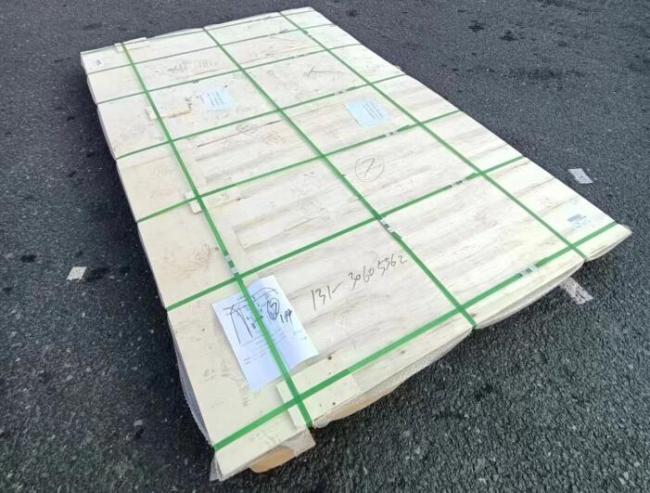

Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Properity	Superior Corrosion Resistance	Place of Origin	Anping of China
Aperture Shape	Square	Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Product Name	SS Woven Wire Mesh	Material	Stainless Steel 304
mesh counts	40	Roll Width	1m, 1.22m, 1.6m stock
Certification	ISO	Surface	Bright Silver
Brand Name	QIANPU	Payment Terms	T/T, Western Union, L/C
Price	Negotiable	Delivery Time	Immediately
Minimum Order Quantity	5 Rolls	Standard Length	30m
Application	Filtration	Wire Diameter	0.25mm

Product Description

Stainless Steel 904L Woven Wire Mesh Offers Superior Corrosion Resistance

Indtroduction:

Stainless steel 904L is a non-stabilized austenitic stainless steel with low carbon content. It is known for its excellent resistance to a wide range of corrosive environments, particularly in aggressive chloride-containing environments. When this material is used to make wire mesh, it inherits these corrosion-resistant properties, making it suitable for demanding applications where corrosion resistance is critical.

When considering stainless steel 904L wire mesh for a specific application, it's important to evaluate the requirements for corrosion resistance, temperature exposure, and mechanical properties to ensure that it is the right material for the job. Additionally, consulting with manufacturers or suppliers who specialize in stainless steel wire mesh can provide further guidance on the suitability of this material for your application.

Plain Weave Mesh Specifications:

Mesh	Wire D		Aperture L		Open Area	Square Meter Weight
openings/inch	mm	inch	mm	inch	%	kgs	lbs
3	1.60	0.0629	6.866	0.2703	65.77	3.84	8.44
3	1.40	0.0551	7.066	0.2782	69.66	2.94	6.46
3	1.20	0.0472	7.266	0.2860	73.66	2.16	4.75
3	1.00	0.0393	7.466	0.2939	77.77	1.50	3.30
3	0.90	0.0354	7.566	0.2979	79.87	1.21	2.67
3	0.80	0.0314	7.666	0.3018	81.99	0.96	2.11
3	0.70	0.0275	7.766	0.3057	84.14	0.73	1.60
4	1.20	0.0472	5.15	0.2027	65.77	2.88	6.33
4	1.00	0.0393	5.35	0.2106	70.98	2.00	4.40
4	0.90	0.0354	5.45	0.2145	73.66	1.62	3.56
4	0.80	0.0314	5.55	0.2185	76.39	1.28	2.81
4	0.70	0.0275	5.65	0.2224	79.16	0.98	2.15
4	0.60	0.0236	5.75	0.2263	81.99	0.72	1.58
5	1.00	0.0393	4.08	0.1606	64.50	2.50	5.50
5	0.90	0.0354	4.18	0.1645	67.70	2.02	4.45
5	0.80	0.0314	4.28	0.1685	70.98	1.60	3.52
5	0.70	0.0275	4.38	0.1724	74.33	1.22	2.68
5	0.60	0.0236	4.48	0.1763	77.77	0.90	1.98
5	0.50	0.0196	4.58	0.1803	81.28	0.62	1.37
6	0.90	0.0354	3.333	0.1312	62.00	2.43	5.34
6	0.80	0.0314	3.433	0.1351	65.77	1.92	4.22
6	0.70	0.0275	3.533	0.1391	69.66	1.47	3.23
6	0.60	0.0236	3.633	0.1430	73.66	1.08	2.37
6	0.50	0.0196	3.733	0.1469	77.77	0.75	1.65
8	0.90	0.0354	2.275	0.0895	51.34	3.24	7.12
8	0.80	0.0314	2.375	0.0935	55.95	2.56	5.63
8	0.70	0.0275	2475	0.0974	60.76	1.96	4.31
8	0.60	0.0236	2575	0.1013	65.77	1.44	3.16
8	0.50	0.0196	2675	0.1053	70.98	1.00	2.20
10	0.90	0.0354	1.640	0.0645	41.68	4.05	8.91
10	0.80	0.0314	1.740	0.0685	46.92	3.2	7.04
10	0.70	0.0275	1.840	0.0724	52.47	2.45	5.39
10	0.60	0.0236	1.940	0.0763	58.33	1.8	3.96
10	0.50	0.0196	2.040	0.0803	64.50	1.25	2.75
10	0.40	0.0157	2.140	0.0842	70.98	0.80	1.76
12	0.80	0.0314	1.316	0.0518	38.69	3.84	8.44
12	0.70	0.0275	1.416	0.0557	44.79	2.94	6.46
12	0.60	0.0236	1.516	0.0597	51.34	2.16	4.75
12	0.50	0.0196	1.616	0.0636	58.33	1.50	3.30
12	0.40	0.0157	1.716	0.0675	65.77	0.96	2.11
12	0.30	0.0118	1.816	0.0715	73.66	0.54	1.18
14	0.70	0.0275	1.114	0.0438	37.72	3.43	7.54
14	0.60	0.0236	1.214	0.0478	44.79	2.52	5.54
14	0.50	0.0196	1.314	0.0517	52.47	1.75	3.85
14	0.40	0.0157	1.414	0.0556	60.76	1.12	2.46
14	0.35	0.0137	1.464	0.0576	65.13	0.85	1.87
14	0.30	0.0118	1.514	0.0596	69.66	0.63	1.38
14	0.27	0.0106	1.544	0.0607	72.45	0.51	1.12
14	0.25	0.0098	1.564	0.0615	74.33	0.43	0.94
14	0.23	0.0090	1.584	0.0623	76.25	0.37	0.81
14	0.21	0.0082	1.604	0.0631	78.19	0.30	0.67
14	0.19	0.0074	1.624	0.0639	80.15	0.25	0.55
16	0.60	0.0236	0.987	0.0388	38.69	2.88	6.33
16	0.50	0.0196	1.087	0.0428	46.92	2.00	4.40
16	0.40	0.0157	1.187	0.0467	55.95	1.28	2.81
16	0.35	0.0137	1.237	0.0487	60.76	0.98	2.15
16	0.30	0.0118	1.287	0.0506	65.77	0.72	1.58
16	0.27	0.0106	1.317	0.0518	68.87	0.58	1.27
16	0.25	0.0098	1.337	0.0526	70.98	0.50	1.10
16	0.23	0.0090	1.357	0.0534	73.12	0.42	0.92
16	0.21	0.0082	1.377	0.0542	75.29	0.35	0.77
16	0.19	0.0074	1.397	0.0550	77.49	0.28	0.61
18	0.50	0.0196	0.911	0.0358	41.68	2.25	4.95
18	0.40	0.0157	1.011	0.0398	51.34	1.44	3.16
18	0.35	0.0137	1.061	0.0417	56.54	1.10	2.42
18	0.30	0.0118	1.111	0.0437	62.00	0.81	1.78
18	0.27	0.0106	1.141	0.0449	65.39	0.65	1.44
18	0.25	0.0098	1.161	0.0457	67.70	0.56	1.23
18	0.23	0.0090	1.181	0.0465	70.05	0.47	1.04
18	0.21	0.0082	1.201	0.0472	72.45	0.39	0.87
18	0.19	0.0074	1.221	0.0480	74.88	0.32	0.71
18	0.17	0.0066	1.241	0.0488	77.35	0.26	0.57
18	0.15	0.0059	1.261	0.0496	79.87	0.20	0.44
20	0.50	0.0196	0.770	0.0303	36.75	2.50	5.50
20	0.45	0.0177	0.820	0.0322	41.68	2.02	4.44
20	0.40	0.0157	0.870	0.0342	46.92	1.60	3.52
20	0.35	0.0137	0.920	0.0362	52.47	1.22	2.69
20	0.30	0.0118	0.970	0.0381	58.33	0.90	1.98
20	0.27	0.0106	1.000	0.0393	62.00	0.72	1.60
20	0.25	0.0098	1.020	0.0401	64.50	0.62	1.36
20	0.23	0.0090	1.040	0.0409	67.05	0.52	1.16
20	0.21	0.0082	1.060	0.0417	69.66	0.44	0.97
20	0.19	0.0074	1.080	0.0425	72.31	0.36	0.79
20	0.17	0.0066	1.100	0.0433	75.02	0.28	0.63
20	0.15	0.0059	1.120	0.0440	77.77	0.22	0.49
22	0.40	0.0157	0.754	0.0297	42.71	1.76	3.87
22	0.35	0.0137	0.804	0.0316	48.56	1.34	2.96
22	0.30	0.0118	0.854	0.0336	54.78	0.99	2.17
22	0.27	0.0106	0.884	0.0348	58.69	0.80	1.76
22	0.25	0.0098	0.904	0.0356	61.38	0.68	1.49
22	0.23	0.0090	0.924	0.0363	64.12	0.58	1.27
22	0.21	0.0082	0.944	0.0371	66.93	0.48	1.05
22	0.19	0.0074	0.964	0.0379	69.79	0.39	0.87
22	0.17	0.0066	0.984	0.0387	72.71	0.31	0.69
22	0.15	0.0059	1.004	0.0395	75.70	0.24	0.54
24	0.35	0.0137	0.708	0.0278	44.79	1.47	3.23
24	0.30	0.0118	0.758	0.0298	51.34	1.08	2.37
24	0.27	0.0106	0.788	0.0310	55.48	0.87	1.92
24	0.25	0.0098	0.808	0.0318	58.33	0.75	1.65
24	0.23	0.0090	0.828	0.0326	61.25	0.63	1.38
24	0.21	0.0082	0.848	0.0333	64.25	0.52	1.14
24	0.19	0.0074	0.868	0.0341	67.31	0.43	0.95
24	0.17	0.0066	0.888	0.0349	70.45	0.34	0.76
24	0.15	0.0059	0.908	0.0357	73.66	0.27	0.59
24	0.13	0.0051	0.928	0.0365	76.94	0.20	0.44
24	0.12	0.0047	0.938	0.0369	78.60	0.17	0.38
30	0.35	0.0137	0.496	0.0195	34.41	1.83	4.02
30	0.30	0.0118	0.546	0.0215	41.68	1.35	2.97
30	0.27	0.0106	0.576	0.0227	46.39	1.09	2.40
30	0.25	0.0098	0.596	0.0234	49.66	0.93	2.04
30	0.23	0.0090	0.616	0.0242	53.04	0.79	1.73
30	0.21	0.0082	0.636	0.0250	56.54	0.66	1.45
30	0.19	0.0074	0.656	0.0258	60.15	0.54	1.18
30	0.17	0.0066	0.676	0.0266	63.87	0.43	0.95
30	0.15	0.0059	0.696	0.0274	67.70	0.33	0.74
30	0.13	0.0051	0.716	0.0282	71.64	0.25	0.55
30	0.12	0.0047	0.726	0.0286	73.66	0.21	0.47
32	0.28	0.0110	0.513	0.0202	41.89	1.25	2.75
32	0.25	0.0098	0.543	0.0214	46.92	1.00	2.20
32	0.23	0.0090	0.563	0.0221	50.44	0.84	1.86
32	0.21	0.0082	0.583	0.0229	54.08	0.70	1.55
32	0.19	0.0074	0.603	0.0237	57.85	0.57	1.27
32	0.17	0.0066	0.623	0.0245	61.75	0.46	1.01
32	0.15	0.0059	0.643	0.0253	65.77	0.36	0.79
35	0.30	0.0118	0.425	0.0167	34.41	1.57	3.46
35	0.28	0.0110	0.445	0.0175	37.72	1.37	3.01
35	0.25	0.0098	0.475	0.0187	42.96	1.09	2.40
35	0.23	0.0091	0.496	0.0195	46.66	0.93	2.04
35	0.21	0.0082	0.515	0.0203	50.49	0.77	1.69
35	0.19	0.0074	0.535	0.0210	54.49	0.63	1.38
35	0.17	0.0066	0.555	0.0218	58.63	0.50	1.11
35	0.15	0.0059	0.575	0.0226	62.93	0.39	0.86
40	0.30	0.0118	0.335	0.0131	27.83	1.8	3.96
40	0.27	0.0106	0.365	0.0143	33.03	1.45	3.20
40	0.25	0.0098	0.385	0.0151	36.75	1.25	2.75
40	0.23	0.0090	0.405	0.0159	40.67	1.05	2.31
40	0.21	0.0082	0.425	0.0167	44.79	0.88	1.94
40	0.19	0.0074	0.445	0.0175	49.11	0.72	1.58
40	0.17	0.0066	0.465	0.0183	53.62	0.57	1.27
40	0.15	0.0059	0.485	0.0190	58.33	0.45	0.99
40	0.13	0.0051	0.505	0.0198	63.24	0.33	0.74
40	0.12	0.0047	0.515	0.0202	65.77	0.28	0.63
50	0.25	0.0098	0.258	0.0101	25.79	1.56	3.43
50	0.23	0.0090	0.278	0.0109	29.94	1.32	2.90
50	0.21	0.0082	0.298	0.0117	34.41	1.10	2.42
50	0.19	0.0074	0.318	0.0125	39.18	0.90	1.98
50	0.18	0.0070	0.328	0.0129	41.68	0.81	1.78
50	0.17	0.0066	0.338	0.0133	44.26	0.72	1.58
50	0.15	0.0059	0.358	0.0140	49.66	0.56	1.23
50	0.13	0.0051	0.378	0.0148	55.36	0.42	0.92
50	0.12	0.0047	0.388	0.0152	58.33	0.36	0.79
60	0.23	0.0090	0.193	0.0076	20.85	1.58	3.49
60	0.21	0.0082	0.213	0.0083	25.39	1.32	2.91
60	0.19	0.0074	0.233	0.0091	30.38	1.08	2.37
60	0.17	0.0066	0.253	0.0099	35.81	0.86	1.90
60	0.15	0.0059	0.273	0.0107	41.68	0.67	1.47
60	0.13	0.0051	0.293	0.0115	48.01	0.50	1.11
60	0.12	0.0047	0.303	0.0119	51.34	0.43	0.95
80	0.13	0.0051	0.187	0.0073	34.87	0.67	1.48
80	0.12	0.0047	0.197	0.0077	38.69	0.57	1.25
80	0.10	0.0039	0.217	0.0085	46.92	0.40	0.88
80	0.09	0.0035	0.227	0.0089	51.34	0.32	0.71
100	0.10	0.0039	0.154	0.0060	36.75	0.50	1.10
100	0.08	0.0031	0.174	0.0068	46.92	0.32	0.70
120	0.09	0.0035	0.121	0.0047	33.03	0.48	1.06
120	0.08	0.0031	0.131	0.0051	38.69	0.38	0.83
120	0.07	0.0027	0.141	0.0055	44.79	0.29	0.64
120	0.06	0.0023	0.151	0.0059	51.34	0.21	0.47
120	0.05	0.0019	0.161	0.0063	58.33	0.15	0.33
150	0.06	0.0023	0.109	0.0043	41.68	0.27	0.59
150	0.065	0.0025	0.104	0.0041	37.96	0.31	0.69
165	0.063	0.0024	0.090	0.0035	34.89	0.32	0.72
165	0.06	0.0023	0.093	0.0036	37.23	0.29	0.65
165	0.05	0.0019	0.103	0.0040	45.58	0.20	0.45
180	0.05	0.0019	0.091	0.0035	41.68	0.22	0.48
200	0.05	0.0019	0.077	0.0030	36.75	0.25	0.55
200	0.04	0.0015	0.087	0.0034	46.93	0.16	0.35
250	0.04	0.0015	0.061	0.0024	36.75	0.20	0.44
300	0.04	0.0015	0.044	0.0017	27.83	0.24	0.52

Twill Weave Mesh Specifications:

Mesh	Wire D		Aperture L		Open Area	Square Meter Weight
openings/inch	mm	inch	mm	inch	%	kgs	lbs
40	0.30	0.0118	0.335	0.0131	27.83	1.80	3.96
40	0.27	0.0106	0.365	0.0143	33.03	1.45	3.20
40	0.25	0.0098	0.385	0.0151	36.75	1.25	2.75
40	0.23	0.0090	0.405	0.0159	40.67	1.05	2.31
40	0.21	0.0082	0.425	0.0167	44.79	0.88	1.94
40	0.19	0.0074	0.445	0.0175	49.11	0.72	1.58
40	0.17	0.0066	0.465	0.0183	53.62	0.57	1.27
40	0.15	0.0059	0.485	0.0190	58.33	0.45	0.99
50	0.25	0.0098	0.258	0.0101	25.79	1.56	3.43
50	0.23	0.0090	0.278	0.0109	29.94	1.32	2.90
50	0.21	0.0082	0.298	0.0117	34.41	1.10	2.42
50	0.19	0.0074	0.318	0.0125	39.18	0.90	1.98
50	0.18	0.0070	0.328	0.0129	41.68	0.81	1.78
50	0.17	0.0066	0.338	0.0133	44.26	0.72	1.58
50	0.15	0.0059	0.358	0.0140	49.66	0.56	1.23
60	0.23	0.0090	0.193	0.0076	20.85	1.58	3.49
60	0.21	0.0082	0.213	0.0083	25.39	1.32	2.91
60	0.19	0.0074	0.233	0.0091	30.38	1.08	2.37
60	0.17	0.0066	0.253	0.0099	35.81	0.86	1.90
60	0.15	0.0059	0.273	0.0107	41.68	0.67	1.47
60	0.13	0.0051	0.293	0.0115	48.01	0.50	1.11
60	0.12	0.0047	0.303	0.0119	51.34	0.43	0.95
80	0.15	0.0059	0.167	0.0065	27.83	0.9	1.98
80	0.18	0.0070	0.137	0.0054	18.75	1.29	2.85
80	0.13	0.0051	0.187	0.0073	34.87	0.67	1.48
80	0.12	0.0047	0.197	0.0077	38.69	0.57	1.25
80	0.10	0.0039	0.217	0.0085	46.92	0.40	0.88
100	0.10	0.0039	0.154	0.0060	36.75	0.50	1.10
100	0.14	0.0055	0.114	0.0044	20.14	0.98	2.15
100	0.12	0.0047	0.134	0.0052	27.83	0.72	1.58
120	0.12	0.0047	0.091	0.0036	18.75	0.86	1.90
120	0.10	0.0039	0.111	0.0043	27.83	0.6	1.32
120	0.09	0.0035	0.121	0.0047	33.03	0.48	1.06
120	0.08	0.0031	0.131	0.0051	38.69	0.38	0.83
150	0.08	0.0031	0.089	0.0035	27.83	0.48	1.05
150	0.07	0.0027	0.099	0.0039	34.41	0.36	0.80
150	0.06	0.0023	0.109	0.0043	41.68	0.27	0.59
180	0.065	0.0026	0.076	0.0030	29.47	0.38	0.83
180	0.06	0.0023	0.081	0.0031	33.03	0.32	0.71
180	0.05	0.0019	0.091	0.0035	41.68	0.22	0.48
200	0.05	0.0019	0.077	0.0030	36.75	0.25	0.55
200	0.06	0.0023	0.067	0.0026	27.83	0.36	0.79
250	0.05	0.0019	0.051	0.0020	25.79	0.31	0.68
250	0.04	0.0015	0.061	0.0024	36.75	0.20	0.44
300	0.04	0.0015	0.044	0.0017	27.83	0.24	0.52
325	0.035	0.0013	0.043	0.0016	30.48	0.19	0.41
325	0.04	0.0015	0.038	0.0015	23.83	0.26	0.57
400	0.03	0.0011	0.033	0.0013	27.83	0.18	0.39
500	0.025	0.0009	0.025	0.0010	25.79	0.15	0.33
600	0.018	0.0007	0.024	0.0009	33.03	0.09	0.21
635	0.015	0.0005	0.025	0.0009	39.06	0.07	0.15

Other specifications according to your requirements.

Materials:

904L

Features:

Here are some features and considerations specific to stainless steel 904L wire mesh:

Corrosion Resistance: Stainless steel 904L offers superior corrosion resistance compared to many other stainless steel grades, especially in environments containing chlorides such as seawater, acids, and other aggressive media.
High Alloy Content: Stainless steel 904L contains high levels of chromium, nickel, molybdenum, and copper, which contribute to its exceptional corrosion resistance properties.
Acid Resistance: This material is highly resistant to sulfuric acid, phosphoric acid, and other acidic solutions.
High Temperature Resistance: Stainless steel 904L can withstand high temperatures and is suitable for applications where elevated temperatures are present.
Weldability: While stainless steel 904L can be welded using common techniques, precautions need to be taken to maintain its corrosion resistance, such as using low heat input and matching filler metals.
Applications: Stainless steel 904L wire mesh is commonly used in industries such as chemical processing, petrochemical, pharmaceuticals, oil and gas, pulp and paper, and desalination plants where corrosion resistance is crucial.
Durability: Due to its high alloy content, stainless steel 904L wire mesh is durable and long-lasting, providing a reliable solution for harsh environments.
Cost: Stainless steel 904L is typically more expensive than standard austenitic stainless steels like 304 and 316 due to its higher alloy content and specialized properties.

Applications:

Widely used in stainless steel mesh screen filter and protective decorative, scope throughout the mining, petroleum, chemical, food, medicine, machinery manufacturing, construction, decoration, electronics, aerospace and other industries.
