| Price | Negotiable |
| MOQ | 5 Rolls |
| Delivery Time | a week |
| Brand | QIANPU |
| Place of Origin | Anping of China |
| Certification | ISO |
| Packaging Details | Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets. |
| Payment Terms | T/T, Western Union, L/C |
| Properity | Low Internal Resistance | Place of Origin | Anping of China |
| Hole Shape | Square Hole | Packaging Details | Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets. |

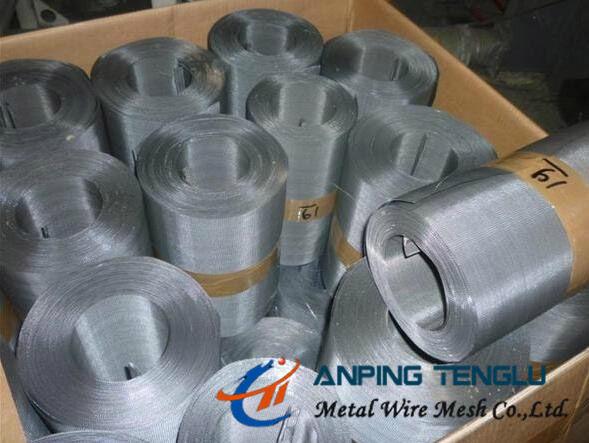

| Product Name | SS Woven Wire Mesh | Material | Stainless Steel |
| Roll Width | Customized | Certification | ISO |
| Surface | Bright Silver | Brand Name | QIANPU |
| Payment Terms | T/T, Western Union, L/C | Price | Negotiable |
| Delivery Time | a week | Length | 30m to 300m |
| Minimum Order Quantity | 5 Rolls | Mesh Counts | 40, 50, 60 mesh per inch |
| Application | For Battery Making. | Wire Diameter | 0.19mm, 0.17mm, 0.15mm |
A lightweight woven wire mesh has been investigated as an battery current collector, fuel cells and electrolyzers. Using woven wire mesh as a current collector offers battery companies properties in battery that are not found in other products. As the mesh is made from two separate wires, it can withstand more flexure. It is ideal for electrode substrates, current collectors, flow field screens and gas diffusion electrodes.
It can be provided as discs or cut into mesh tapes. In addition, we designed special machines to produce the finish edge mesh. The finish edge will increase the mesh stability and provide a ety edge for handling. And It will also protect the battery separator.
We provide expertise in manufacturing stainless steel wire mesh in selecting the appropriate products for your battery requirements. As our wire mesh can be woven with different configurations and properties, we can tailor the product for your use. A multitude of meshes, weaves and wire diameters are available.
Mesh Counts: 40mesh, 50mesh, 60mesh
Roll
Width:
20mm
to
500mm
Roll
Length:
30m
to
300m
| Mesh | Wire Diameter | Aperture | Open Area Rate | ||
| mm | Inch | mm | Inch | % | |
| 40 | 0.19 | 0.0074 | 0.445 | 0.0175 | 49.11 |
| 50 | 0.17 | 0.0066 | 0.338 | 0.0133 | 44.26 |
| 60 | 0.15 | 0.0059 | 0.273 | 0.0107 |
41.68 |
SS304,
SS304L,
SS316,
SS316L.
Brass
wire,
copper
wire,
aluminum
wire,
nickel
wire
are
available.
ety
edge,
no
obvious
burrs;
Good stability, flexibility;
Acid and alkali resistance, high temperature resistance;
No fragment or rust happens in battery;
Good welding performance and easy fabricated;
Low internal resistance.
Supercapacitor;
Rechargeable
battery;
Gas diffusion electrodes;
Lithium manganese battery anode current collector;
Substrates
for
coating
battery
electrode
material.
