| Price | Negotiable |
| MOQ | 20KM |
| Delivery Time | 7 days |
| Brand | YUANTONG |
| Place of Origin | Chengdu, China |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GYFTY04 |
| Packaging Details | Wooden Drum |
| Payment Terms | L/C, T/T, Western Union, D/P |
| Supply Ability | 500km per week |
| Bending radius (mm) | 12.5 D/25 D | Place of Origin | Chengdu, China |
| Packaging Details | Wooden Drum | Number of casing | 12 |
| Model Number | GYFTY04 | Supply Ability | 500km per week |
| Certification | ROSH ,TLC, CCC, ISO | Brand Name | YUANTONG |
| Payment Terms | L/C, T/T, Western Union, D/P | Type | Outdoor Fiber Optic Cable |
| Optical cable model | GYFTY-4~144 Xn | Price | Negotiable |
| Delivery Time | 7 days | OEM | Available |
| Minimum Order Quantity | 20KM | Referencecable weight (Kg/km) | 86~179 |
| Structure | Stranded structure | Number of Conductors | ≥ 10 |
Characteristics
1. Overhead&Pipeline laying&Strong electromagnetic
1. High voltage Area,Anti-termite
Optical Characteristics:
| Model | Description | Applications | Tensile Strength (N) | Crush Resistance (N/100mm) | Bned Radius (mm) |
Working Temperature(ºC) | Max. attenuation (dB/km) | |||||
| Long term | short term | Long term | short term | Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm | |||

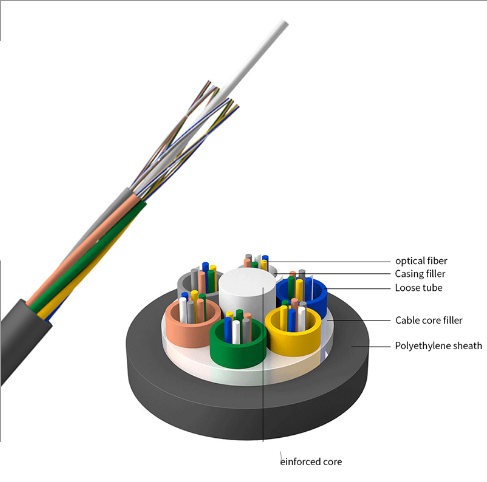

| GYFTY04 | GYFTY04 outdoor fiber optic cable,Non-metallic strength member,layer filling loose tube,PE sheath,Anti-termite | Overhead&Pipeline laying&Strong electromagnetic and high voltage Area,Anti-termite | 600 | 1500 | 300 | 1000 | 10 D | 20 D | -40ºC | +60ºC | ≤0.36 | ≤0.22 |
Environmental Characteristics
Transport/storage temperature: -40℃ to +60℃
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
