| Price | Negotiable |
| MOQ | 20KM |
| Delivery Time | 7 days |
| Brand | YUANTONG |
| Place of Origin | China |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GYXTW04 |
| Packaging Details | Wooden Drum |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 500km per week |
| Place of Origin | China | Cable Sheath | Steel-PE sheath |
| Packaging Details | Wooden Drum | Product Name | 12 Core Central Tube Full Filling With The Parallel Steel Wire Steel-PE Outer Jacket Fiber Optic Cable GYXTW |
| Model Number | GYXTW04 | Fiber Count | 12 Core |
| Fiber Type | G652D | Cable Use | Aerial, Overhead laying |
| Supply Ability | 500km per week | Certification | ROSH ,TLC, CCC, ISO |
| Brand Name | YUANTONG | Payment Terms | L/C, D/P, T/T, Western Union |
| Cable Color | Black | Price | Negotiable |
| Delivery Time | 7 days | Minimum Order Quantity | 20KM |
| Strength Member | Metallic strength member | Loose tube | PBT |
12
Core
Anti-Termite
Central
Tube
With
The
Parallel
Steel
Wire
Steel-PE
Outer
Jacket
Fiber
Optic
Cable
GYXTW04

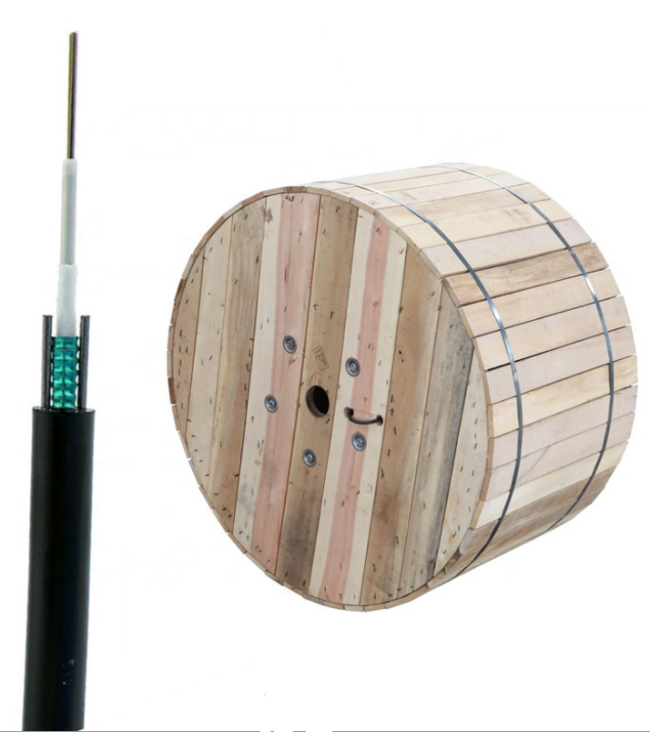

Description:
GYXTW04
single-mode/multimode
fibers
are
positioned
in
the
loose
tube,
which
is
made
of
high
modulus
plastic
materials
and
filled
with
filling
compound.
PSP
is
longitudinally
applied
around
the
loose
tube,
and
water-blocking
materials
are
distributed
into
interstices
between
them
to
guarantee
the
compactness
and
longitudinal
water-blockingperformance.
Two
parallel
steel
wires
are
placed
at
both
sides
of
the
cable
core
while
PE
sheath
is
extruded
over
it.
Feature:
1.
Good
mechanical
and
temperature
performance
2.
High
strength
loose
tube
that
is
hydrolysis
resistant
3.
Special
tube
filling
compound
ensure
a
critical
protection
of
fiber
4.
Crush
resistance
and
flexibility
5.
The
following
measures
are
taken
to
ensure
the
cable
watertight:
6.
Loose
tube
filling
compound,
100%
cable
core
filling
7.
PSP/PAP
enhancing
moisture-proof
8.
Steel
wire
used
as
the
central
strength
member
| Model | Description | Applications |
| GYXTW04 | Outdoor,Metallic strength member,Central tube,Full filling,With the parallel wire, Steel-PE outer jacket,Anti-termite | Overhead laying&Pipeline laying,rural cable,Anti-termite |
| Tensile Strength (N) | Crush Resistance (N/100mm) |
Bned
Radius (mm) |
Working Temperature(℃) | Max. attenuation (dB/km) | fibers | OD(mm) | weight kg/km | |||||
| Long term | short term | Long term | short term | Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm | |||
| 600 | 1500 | 300 | 1000 | 10 D | 20 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 | 2～24 | 8.5～10.5 | 65～95 |
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
FAQ
1.
Are
you
the
real
manufacturer?
Yes.
We
are
the
real
manufacturer
with
18
years'
history.
2.
What
is
your
fiber
brand
?
Corning,
SEI,
YOFC,
FiberHome,
etc
3.
Can
you
accept
small
order?
Yes,
small
order
is
available
.We
support
new
project
of
our
customers
as
we
know
business
is
always
from
small
order.
4.What
is
your
warranty
period?
25
years
for
fiber
optic
cable
5.
Which
kind
of
certification
you
have
?
ISO9001,
SGS,
3C
Anatel.
6.
What
is
your
delivery
time?
Usually
within
2-3
working
days
7.
What
about
your
annual
production
capacity?
Outdoor/Indoor
Fiber
Optic
Cable,
our
annual
output
is
8,000,000
KM;
FTTH/FTTX/FTTA
Cable,
it
is
6,000,000
KM
per
year;
Patch
Cord/Pigtails,
it
is
12,400,000
Pieces
per
year.
8.
What
is
your
payment
way?
T/T,
L/C,
Western
Union
and
Paypal.
9.
Can
you
supply
customized
products
and
logo?
-Yes.
We
supply
OEM&ODM
service.
You
can
send
us
your
drawing.
10.
Can
you
supply
your
cable
test
value
form?
-Yes.
After
finishing
production
,
we
can
supply
if
you
ask.
11.
Do
your
factory
inspect
every
roll
of
cables?
-Yes.
we
factory
do
100%
inspection
per
order.
