| Price | Negotiable |
| MOQ | 1000PCS |
| Delivery Time | 1 Week after Payment |
| Brand | SL |
| Place of Origin | GUANGDONG CHINA |
| Certification | CE. ROHS |
| Model Number | SL-F-FCN-51 |
| Packaging Details | Blister and Paper Carton |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000PCS/WEEK |
| Place of Origin | GUANGDONG CHINA | Warranty | 1 Year |
| Packaging Details | Blister and Paper Carton | Color | Blue body |
| HS CODE | 85367000 | Polishing | UPC type Polish |
| Model Number | SL-F-FCN-51 | Supply Ability | 1000000PCS/WEEK |
| Certification | CE. ROHS | Brand Name | SL |
| Payment Terms | T/T, Western Union, MoneyGram | Price | Negotiable |
| Delivery Time | 1 Week after Payment | Minimum Order Quantity | 1000PCS |
| Model | SC / UPC SL-F-FCN-51 | Cable Diameter | 0.9mm cable, 2.0mm cable ,3.0mm cable , FTTH |

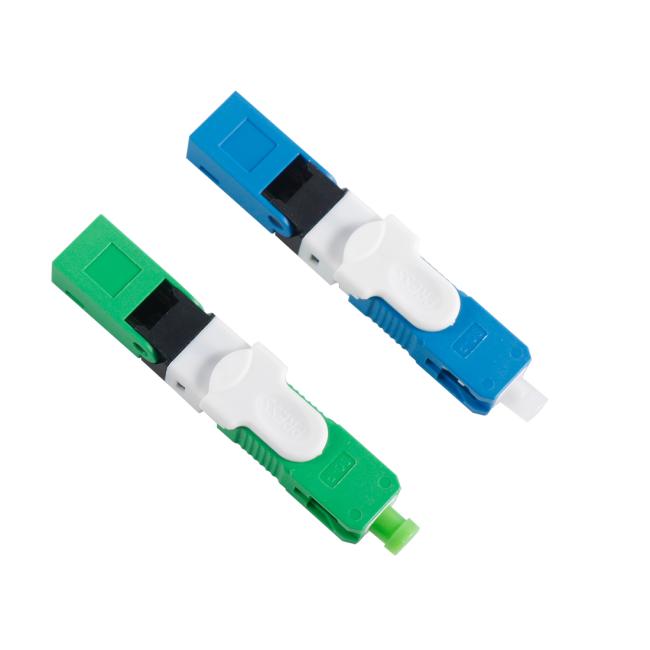

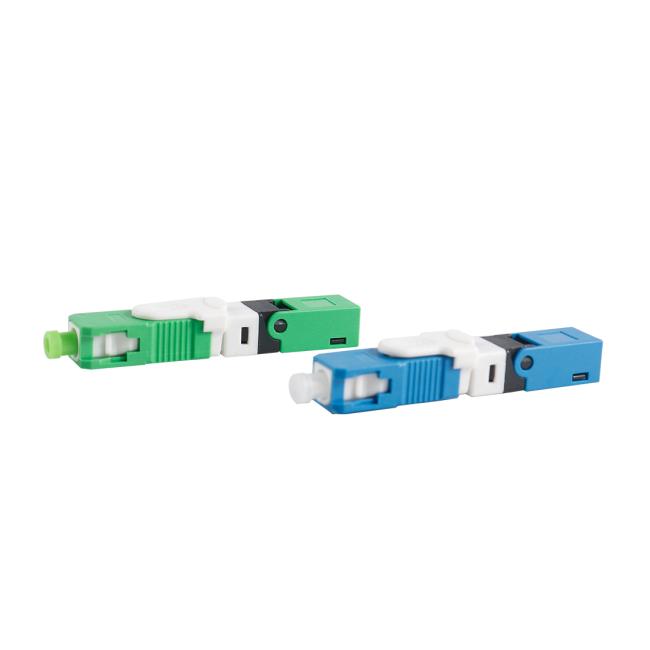

FTTH ESC250d SC / UPC Field Assembly Quick Connector Fiber Optic Fast Connector
SL Fast Connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Feature:
1.Low
insertion
loss
2.High
return
loss
(low
amounts
of
reflection
at
the
interface)
3.Ease
of
installation
4.Low
cost
Application:
1.CATV
2.Active
device
termination
3.Telecommunication
networks
4.Metro
5.Local
Area
Networks
(LANs)
Details:
| Part Number | SL-F-FCN-51 | Length | 51 mm |
| Connector Type | SC | Polishing | UPC or APC |
| Ferrule | Ceramic | V-Groove | Plastic material |
| Cable Diameters | 0.9/2.0/3.0 Simplex Cable 2x3 FTTH Drop Cable | ||
| Insertion Loss |
≤
0.3dB
(typical)； ≤ 0.5dB (Max)； |
Return Loss |
UPC
≥
40dB APC ≥ 50dB |
| Tension Strength | ≥ 30N | Operationg Temp | -40 ~ +75 ℃ |
| 3D Interfercometer (Only available if customer requested) | |||
| Type | Radius (mm) | Apex offset (um) | Fiber (nm) |
| PC (Φ 2.5mm ) | 10 ~ 25 | ≤ 70 | -100~+100 |
| APC (Φ 2.5mm ) | 5~ 15 | ≤ 70 | -100~+100 |

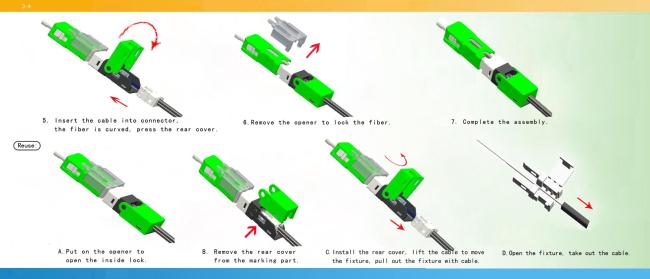

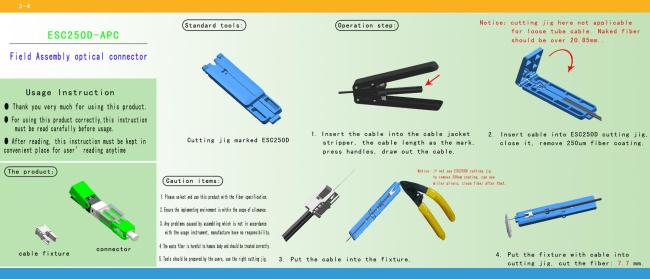

Installation Introduction:
Assembly of the connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. They don’t need to polishing, no epoxy, No electrical power supply, no fused the fiber. Just Strip the buffer, cleave and clean the fiber and then insert the fiber into the Fast Connector. Installation takes just minutes and couldn't be easier.
•
FTTH
Drop
cable
stripper,
To
strip
the
Bow
type
2x3mm
Drop
cable
•
0.9mm/2.0mm/3.0mm
Fiber
Cable
Stripper.
To
Strip
those
round
cable
and
bare
fiber
of
2x3mm
Drop
cable
•
Fiber
cleaver
to
cut
the
fiber
of
Cable&Fiber
•
Use
the
Length
guard
board
cut
the
fiber
in
requested
length,.
•
Alcohol,
For
Fiber
Clean
after
cut
•
Cleanroom
Wipes,
for
Fiber
Clean
after
Alcohol
Cleaned.
Other Type of Connectors.
