| Price | Negotiable |
| MOQ | 1000PCS |
| Delivery Time | 1 Week after Payment |
| Brand | SL |
| Place of Origin | GUANGDONG CHINA |
| Certification | CE. ROHS |
| Model Number | SL-O-FCN-53 |
| Packaging Details | Blister and Paper Carton |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000PCS/WEEK |
| Place of Origin | GUANGDONG CHINA | Warranty | 1 Year |
| Packaging Details | Blister and Paper Carton | Color | Blue body |
| HS CODE | 85367000 | Polishing | UPC type Polish |
| Model Number | SL-O-FCN-53 | Supply Ability | 1000000PCS/WEEK |
| Certification | CE. ROHS | Brand Name | SL |
| Payment Terms | T/T, Western Union, MoneyGram | Price | Negotiable |
| Delivery Time | 1 Week after Payment | Minimum Order Quantity | 1000PCS |
| Model | SC / UPC SL-O-FCN-53 | Cable Diameter | 0.9mm , 2.0mm ,3.0mm cable , FTTH |

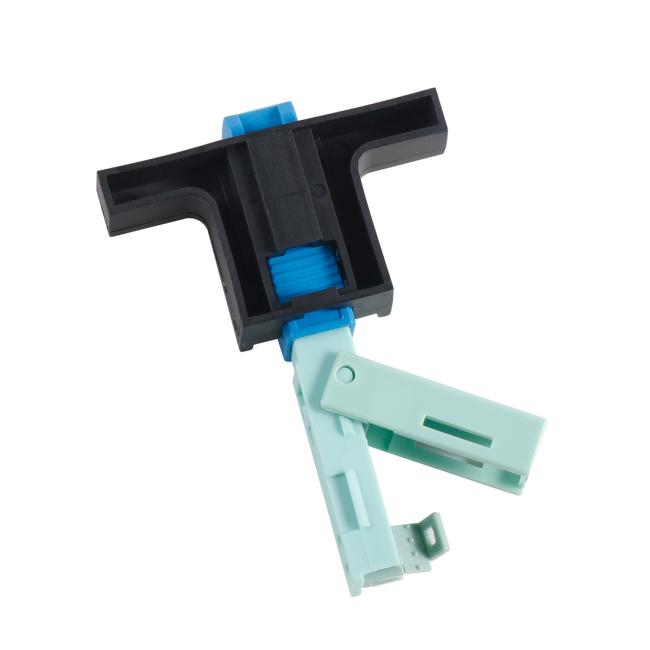

SC / UPC FTTH Blue Fast Connector Cold Connector Fiber Optic SC Connector
This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.
The
Fast
Connector
series
are
already
a
popular
solution
for
optical
wiring
inside
buildings
and
floors
for
LAN
&
CCTV
applications
and
with
the
expansion
of
FTTH,
is
already
proving
itself
to
be
the
connector
of
choice
by
incumbents,
municipalities,
utilities
&
alternative
carriers.
SL
Fast
Connector
series
are
now
available
in
SC,
LC,
or
FC
variants,
catering
for
250um
to
900um,
and
2.0mm,
3.0mm
diameter
single
mode
and
multimode
fiber
types,
including
Multi-mode
62.5/125um
and
Multi-mode
50/125um.
The
single
mode
versions
are
available
with
UPC
or
APC
ferrules.
Feature:
1.
Low
insertion
loss
2.
High
return
loss
(low
amounts
of
reflection
at
the
interface)
3.
Ease
of
installation
4.
Low
cost
5.
Reliability
6.
Low
environmental
sensitivity
7.
Ease
of
use
Application:
1.
CATV
2.
Active
device
termination
3.
Telecommunication
networks
4.
Metro
5.
Local
Area
Networks
(LANs)
6.
Data
processing
networks
7.
Test
equipment
8.
Premise
installation
9.
Wide
Area
Networks(WANs)
Details:
| Part Number | SL-O-FCN-53 | Length | 53 mm |
| Connector Type | SC | Polishing | UPC or APC |
| Ferrule | Ceramic | V-Groove | Plastic material |
| Cable Diameters | 0.9/2.0/3.0 Simplex Cable 2x3 FTTH Drop Cable | ||
| Insertion Loss |
≤
0.3dB
(typical)； ≤ 0.5dB (Max)； |
Return Loss |
UPC
≥
40dB APC ≥ 50dB |
| Tension Strength | ≥ 30N | Operationg Temp | -40 ~ +75 ℃ |
| 3D Interfercometer (Only available if customer requested) | |||
| Type | Radius (mm) | Apex offset (um) | Fiber (nm) |
| PC (Φ 2.5mm ) | 10 ~ 25 | ≤ 70 | -100~+100 |
| APC (Φ 2.5mm ) | 5~ 15 | ≤ 70 | -100~+100 |
Installation Introduction:
Assembly of the connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. They don’t need to polishing, no epoxy, No electrical power supply, no fused the fiber. Just Strip the buffer, cleave and clean the fiber and then insert the fiber into the Fast Connector. Installation takes just minutes and couldn't be easier.
•
FTTH
Drop
cable
stripper,
To
strip
the
Bow
type
2x3mm
Drop
cable
•
0.9mm/2.0mm/3.0mm
Fiber
Cable
Stripper.
To
Strip
those
round
cable
and
bare
fiber
of
2x3mm
Drop
cable
•
Fiber
cleaver
to
cut
the
fiber
of
Cable&Fiber
•
Use
the
Length
guard
board
cut
the
fiber
in
requested
length,.
•
Alcohol,
For
Fiber
Clean
after
cut
•
Cleanroom
Wipes,
for
Fiber
Clean
after
Alcohol
Cleaned.
