| Price | NEGOTIABLE |
| MOQ | 3000 METER |
| Delivery Time | 2 week after payment （ 20GP container） |
| Brand | SLFIBER |
| Place of Origin | CHINA |
| Certification | CE ROHS |
| Model Number | ADSS-288B1.3 |
| Packaging Details | 3KM per Export Drum |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300KM/DAY |
| Place of Origin | CHINA | FIBER COUNT | 288 Core |
| Cable COLOR | Black or as required | Packaging Details | 3KM per Export Drum |
| Model Number | ADSS-288B1.3 | SPAN | 400 METER |
| Supply Ability | 300KM/DAY | Certification | CE ROHS |
| NAME | Non-metallic Aerial Fiber Optic ADSS Cable | Brand Name | SLFIBER |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | FIBER | OS1 / OS 2 G652D,G657,G655 or at your request |
| JACKET SHEATH: | PE outer sheath | Price | NEGOTIABLE |
| Delivery Time | 2 week after payment （ 20GP container） | Minimum Order Quantity | 3000 METER |
| TYPE | 288 Fiber ADSS Cable | Application | outdoor aerial self support |

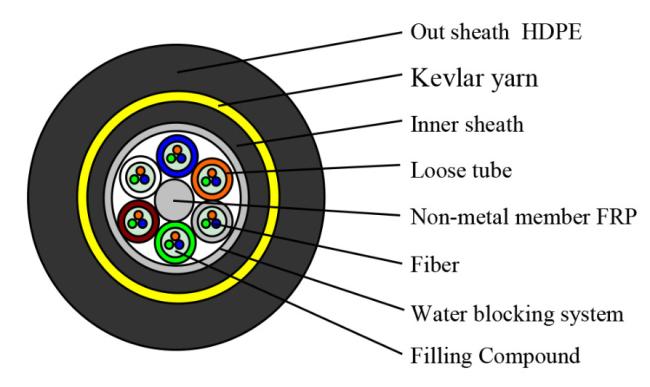

ADSS
cable
is
aerial
use
Self-Supporting
optical
fiber
cable
with
loose
tubes
stranded
inside.
Fibers,
are
positioned
into
a
loose
tube
made
of
high
modulus
plastics.
The
tubes
are
filled
with
a
water-resistant
Jelly.
The
tubes
(
and
fillers
)
are
stranded
around
a
FRP
(
Fiber
Reinforced
Plastic)
as
a
non
-
metallic
central
strength
member
into
a
compact
and
circular
cable
core.
After
the
cable
core
is
filled
with
filling
compound.
it
is
covered
with
thin
PE
(
polyethylene
)
inner
sheath.
After
stranded
layer
of
aramid
yarns
are
applied
over
the
inner
sheath
as
strength
member,
the
cable
is
completed
with
PE
or
AT
(anti-tracking)
outer
sheath.
Application
Status:
1:
Due
to
this
cable
is
all-dieletric,
so
very
good
choice
for
install
in
the
areas
where
have
frequent
thunder
lightning
2:
High
Voltage
Electrical
systems
3:
For
Short
and
Medium
span
Aerial
application
Construction of SL RELIANCE ADSS fiber Optic Cable:
Fiber:
4-288
Fiber
Loose
tube
Gel-Filled
Central
Strength
Member
FRP
ROD
Aramid
yarn
RipCords:
1
Ripcords
made
from
Polyester
cords
Water
Blocking
Elements:
Water
Swellable
Yarn
Water
blocking
Tape
Outer
Jacket:
Black
UV
HDPE
OEM
Cable
Marking
| Fiber color code | 1 | 2 | 3 | 4 | 5 | 6 | |
| Blue | Orange | Green | Brown | Slate | White | ||
| 7 | 8 | 9 | 10 | 11 | 12 | ||
| Red | Black | Yellow | Violet | Rose | Aqua | ||
| Loose tube color code | 1 | 2 | 3 | 4 | 5 | 6 | |
| Blue | Orange | Green | Brown | Slate | White | ||
| 7 | 8 | 9 | 10 | 11 | 12 | ||
| Red | Black | Yellow | Violet | Rose |
Aqua
|
||
A
| Cable Sheath Marking | ||||||||||
| XXXOFC 2021 ADSS-DJ XXCORE (G.652D) XXXXM | ||||||||||
| XXXOFC | manufacture's brand, (as client order) | |||||||||
| 2021 | manufacture year | |||||||||
| ADSS-DJ | cable type | |||||||||
| XXB1.3(G.652D) | XXcores SM fiber(ITU-T rec.G.652D) | |||||||||
| XXXXM | marks for meters | |||||||||
| OPTICAL FIBER | ||||||||||
| Fiber Type | G.652D | |||||||||
| Mode Field Diameter | @ 1310 nm | 9.2±0.4µm | ||||||||
| @1550 nm | 10.4±0.8µm | |||||||||
| Cladding Diameter | 125.0±0.7µm | |||||||||
| Core concentricity error | ≤ 0.5µm | |||||||||
| Cladding non-circularity | ≤ 1.0% | |||||||||
| Coating diameter | 245±10µm | |||||||||
| Attenuation | @ 1310 nm | ≤ 0.36 dB/km | ||||||||
| @ 1550 nm | ≤ 0.22 dB/km | |||||||||
| Dispersion | @ 1285 -1330nm | ≤ 3.4 ps/(nm.km) | ||||||||
| @ 1550 nm | ≤17.5 ps/(nm.km) | |||||||||
| Zero dispersion wavelength | 1300~1324 nm | |||||||||
| zero dispersion slope | ≤0.092 ps/(nm2.km) | |||||||||
| cable cut-off wavelength | ≤1260 nm | |||||||||
| Proof stress | ≥ 0.69 Gpa | |||||||||
| Polarization mode dispersion | ≤0.2 ps/√Km | |||||||||
| Uncabled fiber macrobending loss | Radius(mm) | 15 | ||||||||
| number of turns | 10 | |||||||||
| Max.@ 1550nm(dB) | 0.25 | |||||||||
| Max.@ 1625nm(dB) |
1
|
|||||||||
| Tecnical Data | ||||||||||
| For 24Core, 800m Span | ||||||||||
| Fiber | Span (m) | OD (mm) | Module (N/mm²) | Linner Expanding Coefficient | Weight | Safely Runing Strain (N) | ||||
| 35m/s wind speed and 0mm ice thinckness | ||||||||||
| 24 | 800 | 15.5 | 2.86*104 | 0.02*10 -6 | 200 | 29680 | ||||
| 10m/s wind speed and 5mm ice thinckness | ||||||||||
| 24 | 800 | 14.5 | 2.33*104 | 0.11*10 -6 | 185 |
19600
|
||||
| Ref. Outer | Ref. Weight | Rec. Daily Max. | Max Allowable | Break | Strength | Modulus of | Heat | Suitable Span | ||||
| Diameter | (kg/km) | Working Tension | Working Tension | Strength | Member | Elasticity | Expansion | (NESC Standard,m) | ||||
| (mm) | (kN) | (kN) | (kN) | CSA | CSA | Coefficient | ||||||
| PE Jacket | AT Jacket | (mm2) | (kN/mm2) | (x10- 6/K) | A | B | C | D | ||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
FAQ:
Q:How
to
Proceed
an
order
of
the
products?
A:
1:
Share
your
request
.
2:We
quote
based
on
your
request.
3:Your
Confirm
the
sample
/
offer
and
make
opposite
for
order
4:
We
Doing
the
Mass
production
on
the
order
5:
Your
Settle
the
balance
and
arrange
shipment.
6:
Feedback
on
receiving
the
cargo.
Q:
Can
you
Accept
Small
Order?
A:
Small
order
is
OK.
We
support
new
project
for
our
partner.
Q:Do
you
Provide
OEM
?
A:
YES
