| Price | Negotiable |
| MOQ | 2KM |
| Delivery Time | 1-2week after payment( based on quantity) |
| Brand | SLR |
| Place of Origin | GUANGDONG,CHINA |
| Certification | CE,ROHS |
| Model Number | ADSS-12B1.3 |
| Packaging Details | 2KM /POLYWOOD DRUM |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 120KM/DAY |
| Operating Temperature | -40°C to+70°C | Jacket | PE/AT |
| Place of Origin | GUANGDONG,CHINA | Packaging Details | 2KM /POLYWOOD DRUM |
| Color | Black | Model Number | ADSS-12B1.3 |
| Fiber Count | 12 FO（24/48/72/96/144/288 optional ） | Supply Ability | 120KM/DAY |
| Span | 100m ( or OEM) | Certification | CE,ROHS |
| Brand Name | SLR | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 1-2week after payment( based on quantity) | OEM | Can print Logo on Cable and Drum Sticker |
| Minimum Order Quantity | 2KM | Structure | G.652D, PBT, FRP, ARAMID YARN ,PE JACKET |
| Strength Material | Kevlar Yarn |
Heavy Duty Single Mode Double Sheath ADSS All Dielectric Self Support Aerial Fiber Optic Cable With Span 100m
ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required.
Description:

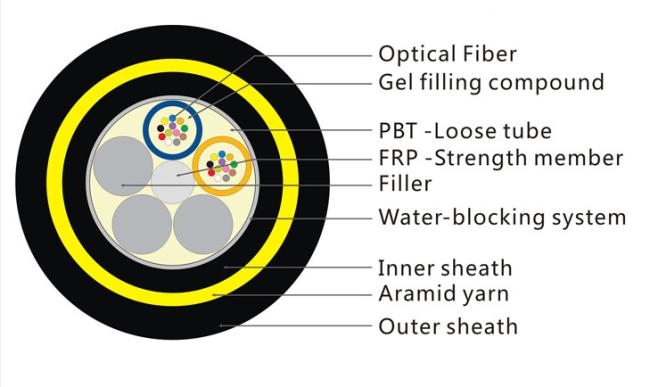

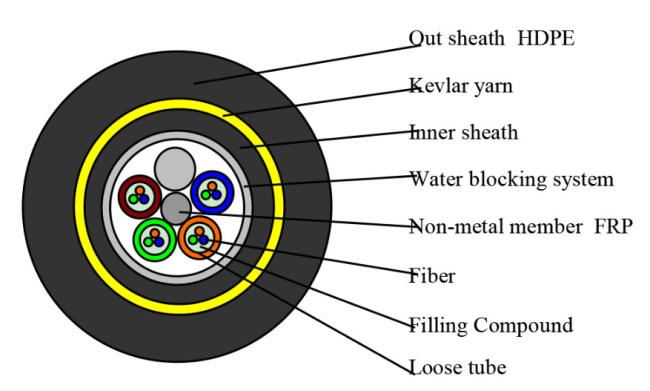

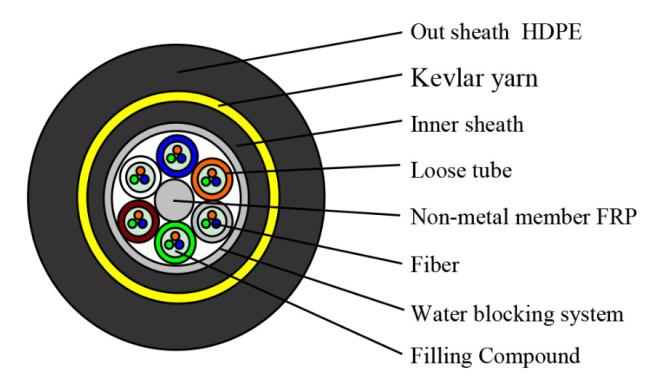

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is filled with filling gel to protect it from water ingress. The kevlar yarn surrounded the cable core as the reinforce strength member, then the cable is completed with a PE sheath.
Features:
Can
be
installed
without
shutting
off
the
power.
Excellent
AT
performance.
The
maximum
inductive
at
the
operating
point
of
AT
jacket
can
reach
25kV.
Light
weight
and
small
diameter
reducing
the
load
caused
by
ice
and
wind
and
the
load
on
towers
and
back
props.
Large
span
lengths
and
the
largest
span
is
over
200m.
Good
performance
of
tensile
strength
and
temperature.
The
design
life
span
is
over
30
years.
Applications :
Aerial
Structure and Technical Specifications ADSS-SJ(50-150M)
|
Ref.
Outer Diameter (mm) |
Ref.
Weight (kg/km) |
Rec.
Daily
Max. (kN) |
Max
Allowable Working Tension (kN) |
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus
of (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable
Span (NESC Standard,m) |
||||
| PE Jacket | AT Jacket | A | B | C | D | |||||||
| 11 | 110 | 120 | 1.0 | 2.5 | 8 | 3.0 | 6.6 | 2.1 | 120 | 80 | 100 | 80 |
| 11.5 | 115 | 125 | 1.5 | 4 | 10 | 4.5 | 7.3 | 1.8 | 180 | 120 | 150 | 120 |
| 12 | 120 | 130 | 2.5 | 6 | 15 | 7.5 | 8.3 | 1.5 | 250 | 150 | 290 | 150 |
Structure and Technical Specifications ADSS-DJ(50-750M)
|
Ref.
Outer Diameter (mm) |
Ref.
Weight (kg/km) |
Rec.
Daily
Max. (kN) |
Max
Allowable Working Tension (kN) |
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus
of (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable
Span (NESC Standard,m) |
||||
| PE Jacket | AT Jacket | A | B | C | D | |||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
