| Price | NEGOTIABLE |
| MOQ | 3000 METER |
| Delivery Time | 2 week after payment （ 20GP container） |
| Brand | SLFIBER |
| Place of Origin | CHINA |
| Certification | CE ROHS |
| Model Number | ADSS-196B1.3 |
| Packaging Details | 3KM per Export Drum |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300KM/DAY |
| Place of Origin | CHINA | Cable TYPE | ADSS Outdoor Cable |
| Tube | PBT | FIBER COUNT | 196 Core |
| FIBER TYPE | Single Mode Fiber | Cable COLOR | BLACK JACKET OR AS ORDER |
| Product NAME | All dielectric self supporting fiber optic cable | Packaging Details | 3KM per Export Drum |
| Model Number | ADSS-196B1.3 | SPAN | 300 METER |
| Supply Ability | 300KM/DAY | Certification | CE ROHS |
| Brand Name | SLFIBER | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Price | NEGOTIABLE | Delivery Time | 2 week after payment （ 20GP container） |
| Minimum Order Quantity | 3000 METER | SHEATH | PE outer sheath+PE inner sheath Aramid yarn |
| Application | transmission network |
196C SM G652D ADSS Fiber Optic Cable Dielectric Outdoor Black Jacket 3 KM per Drum
Double Layer Aerial ADSS Cable is used for communication cable of overhead high - voltage electricity transmission system,it also can be used as communication cable at the areas where lighting is frequent or long distance.
Characteristics
1:
Durable,
and
High
Performance
Cable
solution
for
the
Electrical
Power
networks
and
other
Aerial
use.
2:
Can
be
Installed
with
a
live
line
,
No
need
shut
down
power
supply.
3:
Can
be
designed
to
the
longest
span
is
1000meter
or
more
.
4:
Cost
Effective
solution
for
short
span
5:Meet
the
demand
for
high-growth,
high-bandwidth
networks.
6:Light
weight
and
small
diameter
reducing
the
load
caused
by
ice
and
wind
and
the
load
on
towers
and
backprops.
Structure
Characters:
All
dielectric
Loose
tube
wifh
mon-metalic
strengthen
member
High
flexible
amaid
yarn
Can
work
at
electrix
field≤25KV/min
a
ling
period
Appicable
fieds:
1:
Long-distance
teecom,LAN
in
high
-votage
area
or
access
to
telecom
network
2:
Installation:
Sef-support
aerial
3:
Aerial
Application
including
power
transmission
and
distribution
networks
4:
Duct
Installations
5:
Good
to
use
in
Electromagnetic
fields,
no
need
for
expensive
cable
shielding
or
grounding
accessory

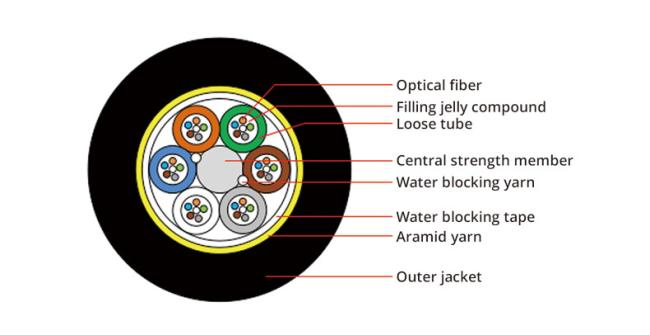

Construction:
250μm
Colored
Fiber
PBT
loose
Tube
Tube
Filling
Compound
(
Gel
)
FRP
central
strength
member
Cable
filling
compound
PE
inner
sheath
Aramid
yarn
PE
outer
sheath
| Item | Parameters | |
| Fiber | Type | G652D |
| Count | 2-288 Cores | |
| Loose tube | Material | PBT |
| Color | All colors display | |
| Filler | Material | HDPE |
| Color | Natural color | |
| Central Strength Member | Material | FRP |
| Non-metal reinforced pieces | Matrial | Aramid yarn |
| Outer jacket | Material | HDPE |
| Min.bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter | |
| Repeating bending | Load:150N; number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage | |
| Crush | Short term | 1000N/100mm |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious | |
| addition attenuation, no fiber break and no cable damage | ||
| Impact | Impact energy : 450g x 1m; radius of hammer head:12.5mm; | |
| number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage. | ||
| Fiber color code | 1 | 2 | 3 | 4 | 5 | 6 | |
| Blue | Orange | Green | Brown | Slate | White | ||
| 7 | 8 | 9 | 10 | 11 | 12 | ||
| Red | Black | Yellow | Violet | Rose | Aqua | ||
| OPTICAL FIBER | ||||||||||
| Fiber Type | G.652D | |||||||||
| Mode Field Diameter | @ 1310 nm | 9.2±0.4µm | ||||||||
| @1550 nm | 10.4±0.8µm | |||||||||
| Cladding Diameter | 125.0±0.7µm | |||||||||
| Core concentricity error | ≤ 0.5µm | |||||||||
| Cladding non-circularity | ≤ 1.0% | |||||||||
| Coating diameter | 245±10µm | |||||||||
| Attenuation | @ 1310 nm | ≤ 0.36 dB/km | ||||||||
| @ 1550 nm | ≤ 0.22 dB/km | |||||||||
| Dispersion | @ 1285 -1330nm | ≤ 3.4 ps/(nm.km) | ||||||||
| @ 1550 nm | ≤17.5 ps/(nm.km) | |||||||||
| Zero dispersion wavelength | 1300~1324 nm | |||||||||
| zero dispersion slope | ≤0.092 ps/(nm2.km) | |||||||||
| cable cut-off wavelength | ≤1260 nm | |||||||||
| Proof stress | ≥ 0.69 Gpa | |||||||||
| Polarization mode dispersion | ≤0.2 ps/√Km | |||||||||
| Uncabled fiber macrobending loss | Radius(mm) | 15 | ||||||||
| number of turns | 10 | |||||||||
| Max.@ 1550nm(dB) | 0.25 | |||||||||
| Max.@ 1625nm(dB) |
1
|
|||||||||
| Ref. Outer | Ref. Weight | Rec. Daily Max. | Max Allowable | Break | Strength | Modulus of | Heat | Suitable Span | ||||
| Diameter | (kg/km) | Working Tension | Working Tension | Strength | Member | Elasticity | Expansion | (NESC Standard,m) | ||||
| (mm) | (kN) | (kN) | (kN) | CSA | CSA | Coefficient | ||||||
| PE Jacket | AT Jacket | (mm2) | (kN/mm2) | (x10- 6/K) | A | B | C | D | ||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
