| Price | NEGOTIABLE |
| MOQ | 3000 METER |
| Delivery Time | 2 week after payment （ 20GP container） |
| Brand | SLFIBER |
| Place of Origin | CHINA |
| Certification | CE ROHS |
| Model Number | ADSS-48B1.3 |
| Packaging Details | 3KM per Export Drum |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300KM/DAY |
| Place of Origin | CHINA | FIBER COUNT | 48 Core |
| FIBER TYPE | OS1/OS2 | Packaging Details | 3KM per Export Drum |
| CABLE NAME | ADSS Optical Fiber Cable | Model Number | ADSS-48B1.3 |
| SPAN | 200 METER | Supply Ability | 300KM/DAY |
| Certification | CE ROHS | Brand Name | SLFIBER |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Price | NEGOTIABLE |
| Delivery Time | 2 week after payment （ 20GP container） | COLOR | BLACK JACKET OR AS ORDER |
| Minimum Order Quantity | 3000 METER | SHEATH | Double HDPE Jacket |
| TYPE | ADSS Cable | Application | OVERHEAD POWER LINE |
This Double Jacket All - Dielectric Self - Supporting ADSS cable is the excellent choice for the power distribution networks, duct and FTTH Installations.
Features:
1:
Low
attenuation
and
dispersion,
special
control
of
exceed
length
ensure
the
good
transmission
performance
in
varying
environment.
2:
Excellent
mechanical
performance
3:
Good
flexibility
and
bending
performance
4:
Small
outer
diameter,
Light
Weight
cable
design
5:
Large
Cable
Span
6:
Fiber
Counts
up
to
288
Core
Structure
Characters:
1:
Loose
tube
wifh
mon-metalic
strengthen
member
2:
High
flexible
amaid
yarn
3:
Can
work
at
electrix
field≤25KV/min
a
ling
period
Application
fieds:
1:Long-distance
teecom,LAN
in
high
-votage
area
or
access
to
telecom
network
2:Installation:
Sef-support
aerial

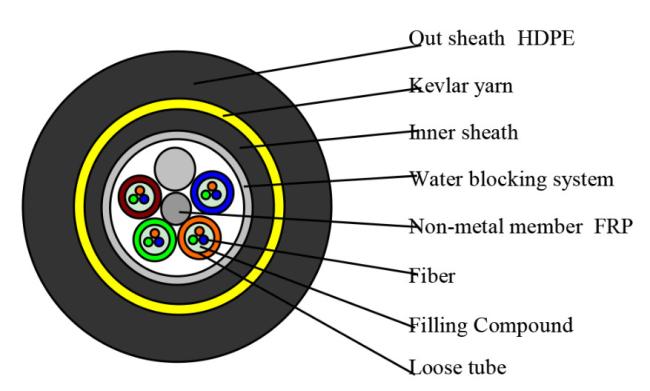

| Cable type | ADSS-48B1.3 | |||
| Central Strength Member | Material | Fiberglass Reinforce with Plastic (FRP) | ||
| Loose Tube | Material | Polybutelene Terephthalate (PBT) | ||
| Diameter | Nom.2.1 mm | |||
| ----- | 4 Fibers per Tube | |||
| Filling compound | Material | Thixotropic jelly | ||
| in loose tube | ||||
| Inner Sheath | Material | Black MDPE | ||
| Thickness | Nom.0.9 mm | |||
| Strength Member | Material | Aramid yarns | ||
| Outer Sheath | Material | HDPE | ||
| Thickness | Nom.1.7 mm | |||
| Span | m | 100 | 150 | 250 |
| Overall Diameter | mm | 12..0 | 12 | 12.1 |
| Weight | kg/km | 98 | 98 | 100 |
| Max.Tensile strength | N | 2000 | 2200 | 3200 |
| Fiber color code | 1 | 2 | 3 | 4 | 5 | 6 | |
| Blue | Orange | Green | Brown | Slate | White | ||
| 7 | 8 | 9 | 10 | 11 | 12 | ||
| Red | Black | Yellow | Violet | Rose | Aqua | ||
| OPTICAL FIBER | ||||||||||
| Fiber Type | G.652D | |||||||||
| Mode Field Diameter | @ 1310 nm | 9.2±0.4µm | ||||||||
| @1550 nm | 10.4±0.8µm | |||||||||
| Cladding Diameter | 125.0±0.7µm | |||||||||
| Core concentricity error | ≤ 0.5µm | |||||||||
| Cladding non-circularity | ≤ 1.0% | |||||||||
| Coating diameter | 245±10µm | |||||||||
| Attenuation | @ 1310 nm | ≤ 0.36 dB/km | ||||||||
| @ 1550 nm | ≤ 0.22 dB/km | |||||||||
| Dispersion | @ 1285 -1330nm | ≤ 3.4 ps/(nm.km) | ||||||||
| @ 1550 nm | ≤17.5 ps/(nm.km) | |||||||||
| Zero dispersion wavelength | 1300~1324 nm | |||||||||
| zero dispersion slope | ≤0.092 ps/(nm2.km) | |||||||||
| cable cut-off wavelength | ≤1260 nm | |||||||||
| Proof stress | ≥ 0.69 Gpa | |||||||||
| Polarization mode dispersion | ≤0.2 ps/√Km | |||||||||
| Uncabled fiber macrobending loss | Radius(mm) | 15 | ||||||||
| number of turns | 10 | |||||||||
| Max.@ 1550nm(dB) | 0.25 | |||||||||
| Max.@ 1625nm(dB) |
