| Price | USD $0.5-$5 Square Meter |
| MOQ | 1 square meter |
| Delivery Time | 5-8 days |
| Brand | FUHANG |
| Place of Origin | China |
| Certification | ISO9001 |
| Model Number | 304/316 Stainless Steel Sintered Metal Mesh Filter |
| Packaging Details | paper tube inside+ wodden box +plastic bag |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000 Square Meter Per Month |
| Packaging Details | paper tube inside+ wodden box +plastic bag | Supply Ability | 10000 Square Meter Per Month |
| Feature | Acid-resisting,corrosion resistent etc.,Anti-corrosion,alkali-resisting etc | Packing | paper tube inside+ wodden box +plastic bag + |
| Weave style | Plain/Twill Weave | Minimum Order Quantity | 1 square meter |
| Width | 0.5m-3m or customized | Usage | oil,space flight,filter,chmical industry |
| Place of Origin | China | Sample | free |
| Color | steel | Hole shape | Square Hole |
| Mesh | 1-635mesh | Material | Stainless Steel Wire |
| Model Number | 304/316 Stainless Steel Sintered Metal Mesh Filter | Certification | ISO9001 |
| Brand Name | FUHANG | Payment Terms | L/C, T/T |
| Type | Weave Wire Mesh | Wire diameter | 0.02-2mm |
| Advantage | Superior wire,standard mesh,factory direct sale,competitive price | Mesh count | 1-400mesh |
| Price | USD $0.5-$5 Square Meter | Delivery Time | 5-8 days |
| Product name | 304/316 Stainless Steel Sintered Metal Mesh Filter | Length | 30m/roll 50m/roll or as required |
| Technique | Woven | Application | Filters |
Customized 304/316 Stainless Steel Sintered Metal Mesh Filter

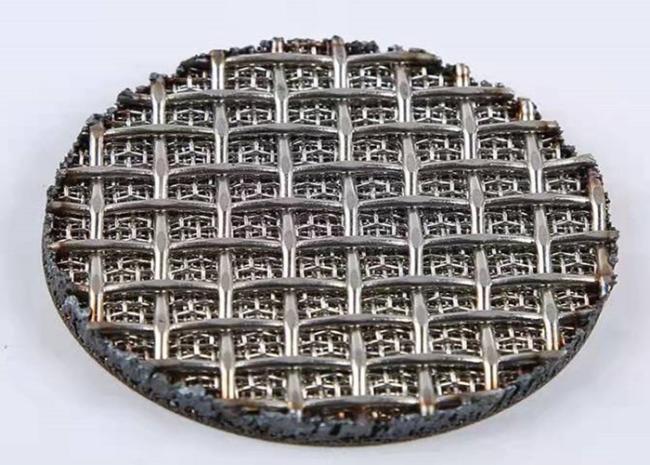

Sintered metal mesh filter is a wire filtering cloth made by pressing multilayers stainless steel woven wire cloth, then sintered together in a vacuum furnace. This kind of filtering cloth is much better than common metal woven wire mesh with good strength, hardness and good positioning of opening. Its comprehensive property is superior to sintered metal powder and porcelain.
Advantages:
High strength: five layers of silk mesh sintering, with very high mechanical strength and pressure-resistant strength.
High accuracy: In fact the filtration granularity of 2 to 200um can play a uniform surface filtration performance.
Heat resistance: In general, can be used for continuous filtration from -200 degrees to 650 degrees.
Easy cleaning: cleaning is very simple due to the surface filtration results with excellent counter-current cleaning effect.
Excellent corrosion resistance
High temperature resistance, thermal shock resistance
Specification
Material: SS304, SS316, Inconel, Hastelloy, and Monel
Filtration rate: 1-100 micron
Types: 5 layers.

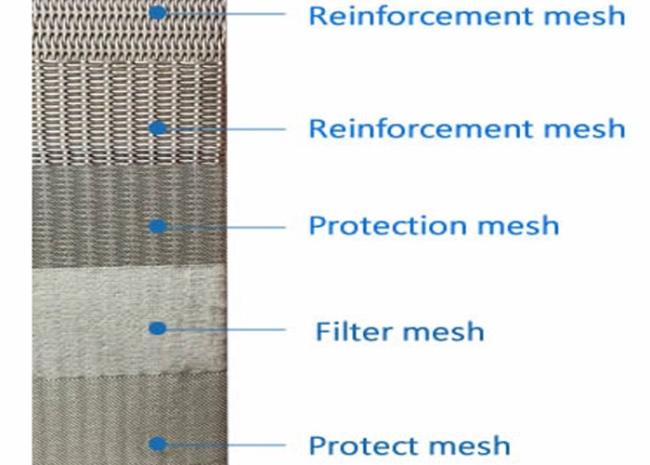

Common Construction: Protection / Filter / Drainage / Support Structure / Support Structure
Type classification: Sintered dutch woven wire mesh and sintered square woven wire mesh.
Standard size:
480 mm × 480 mm, 480 mm × 980 mm, 500 mm × 1000 mm,
600 mm × 1200 mm, 610 mm × 1219 mm, 610 mm × 1250 mm,
1000 mm × 1000 mm, 1200 mm × 1200 mm,
other sizes can be designed as per customers’ demand.
Maximum size: 1219 mm × 1219 mm.
