| Price | USD $0.5-$5 Square Meter |
| MOQ | 1 square meter |
| Delivery Time | 5-8 days |
| Brand | FUHANG |
| Place of Origin | China |
| Certification | ISO9001 |
| Model Number | 321 Stainless Steel Wire Mesh |

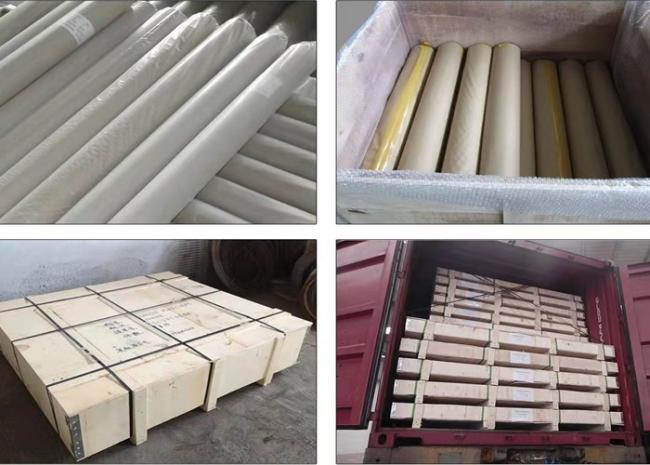

| Packaging Details | paper tube inside+ wodden box +plastic bag |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000 Square Meter Per Month |
| Packaging Details | paper tube inside+ wodden box +plastic bag | Supply Ability | 10000 Square Meter Per Month |
| Feature | Acid-resisting,corrosion resistent etc.,Anti-corrosion,alkali-resisting etc | Packing | paper tube inside+ wodden box +plastic bag + |
| Weave style | Plain/Twill Weave | Minimum Order Quantity | 1 square meter |
| Width | 0.5m-3m or customized | Usage | oil,space flight,filter,chmical industry |
| Place of Origin | China | Sample | free |
| Color | steel | Hole shape | Square Hole |
| Mesh | 1-635mesh | Material | Stainless Steel Wire |
| Model Number | 321 Stainless Steel Wire Mesh | Certification | ISO9001 |
| Brand Name | FUHANG | Payment Terms | L/C, T/T |
| Type | Weave Wire Mesh | Wire diameter | 0.02-2mm |
| Advantage | Superior wire,standard mesh,factory direct sale,competitive price | Mesh count | 1-400mesh |
| Price | USD $0.5-$5 Square Meter | Delivery Time | 5-8 days |
| Product name | Stainless Steel Square Wire Mesh | Length | 30m/roll 50m/roll or as required |
| Technique | Woven | Application | Filters |
304 Stainless Steel Woven Wire Mesh 316 Stainless Steel Square Wire Mesh
Stainless Steel Woven Wire Mesh, also name stainless steel square wire mesh, is manufactured by weaving longitudinal and transverse wires together. Commercial / Industrial grade mesh also known as wire cloth and gauze is extensively used for:
Industry for filtration, screening / sieving and food pressing/ drying
Industry for Hollander Mesh & Bolting Cloth
Architecture for function and appearance both internally and externally
Bushfire Mesh part of your solution to bushfire protection
Window & Door Mesh part of your solution for stopping insects, intruders & embers
Stainless steel square wire mesh is a commonly used stainless steel wire mesh products, the main characteristic is the mesh count in width and length are at the same, and hole shape is square shape. Stainless steel square wire mesh is made of high quality stainless steel wire and woven by wire mesh weaving machine in different weaving ways. For the low mesh count, normally produced by plain woven, and for high mesh count normally by twilled woven.We usually call the stainless steel wire mesh over 200 mesh count as fine stainless steel mesh.
Stainless steel square wire mesh is uniform and flat surface, and has good resistance to acid, alkali and high temperature, also with good strength and wear resistance. This make it to be an important material to filter the gas, liquid or other media separation. It is widely used in petroleum, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, mining, medicine, food and other industries.
The Main Parameters and Common Specifications of Stainless Steel Square Wire Mesh

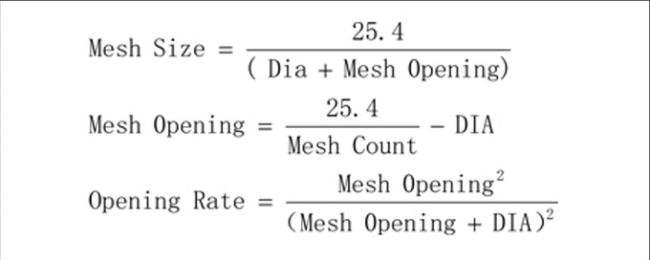

Stainless steel square wire mesh normally has 3 basic parameter which are wire diameter, mesh opening size and mesh count(mesh holes numbers per inch), the third parameter will be curtained once the other two parameters are decided.
The main woven type of stainless steel square wire mesh are plain woven and twilled woven.
Plain Woven Twilled Woven
The main material of stainless steel wire mesh is SS304,304L,316 and 316L, the material can follow the standard of ASTM, GB/T, DN or JIS. And the ASTM standard is commonly used if there’s no other special requirement.
Except the stainless steel material, Fuhang Wire Mesh can also produce the mesh in iron, aluminum, brass, copper, nickel or other material according to the requirements.
Following is the common specifications of stainless steel plain weave square wire mesh & stainless steel twill weave square wire mesh.
| Common Specifcations for Stainless Steel Square Mesh ( Plain Weave ) | ||||
| Mesh/Inch | Wire Diameter(mm) | Opening Size(mm) | Open Area(%) | Weight(kg/m2) |
| 1 | 2.03 | 23.37 | 84.65 | 2.06 |
| 2 | 1.6 | 11.1 | 76.39 | 2.56 |
| 3 | 1.37 | 7.09 | 70.23 | 2.82 |
| 4 | 1.6 | 4.75 | 55.96 | 5.12 |
| 4 | 1.19 | 5.16 | 66.03 | 2.83 |
| 5 | 1.04 | 4.04 | 63.25 | 2.70 |
| 6 | 0.89 | 3.35 | 62.42 | 2.38 |
| 8 | 0.71 | 2.46 | 60.22 | 2.02 |
| 10 | 0.64 | 1.91 | 56.10 | 2.05 |
| 10 | 0.51 | 2.03 | 63.87 | 1.30 |
| 12 | 0.58 | 1.52 | 52.39 | 2.02 |
| 12 | 0.51 | 1.6 | 57.50 | 1.56 |
| 14 | 0.58 | 1.22 | 45.94 | 2.35 |
| 14 | 0.51 | 1.3 | 51.59 | 1.82 |
| 16 | 0.46 | 1.13 | 50.51 | 1.69 |
| 18 | 0.5 | 0.91 | 41.65 | 2.25 |
| 20 | 0.4 | 0.87 | 46.93 | 1.60 |
| 20 | 0.45 | 0.82 | 41.69 | 2.03 |
| 24 | 0.35 | 0.71 | 44.86 | 1.47 |
| 26 | 0.3 | 0.68 | 48.15 | 1.17 |
| 28 | 0.3 | 0.61 | 44.93 | 1.26 |
| 30 | 0.25 | 0.6 | 49.83 | 0.94 |
| 40 | 0.2 | 0.44 | 47.27 | 0.80 |
| 50 | 0.18 | 0.33 | 41.87 | 0.81 |
| 60 | 0.16 | 0.26 | 38.32 | 0.77 |
| 60 | 0.19 | 0.23 | 29.99 | 1.08 |
| 70 | 0.12 | 0.24 | 44.44 | 0.50 |
| 80 | 0.12 | 0.2 | 39.06 | 0.58 |
| 80 | 0.13 | 0.19 | 35.25 | 0.68 |
| 100 | 0.1 | 0.15 | 36.00 | 0.50 |
| 100 | 0.11 | 0.14 | 31.36 | 0.61 |
| 104 | 0.06 | 0.18 | 56.25 | 0.19 |
| 120 | 0.09 | 0.12 | 32.65 | 0.49 |
| 120 | 0.058 | 0.15 | 52.01 | 0.20 |
| 120 | 0.08 | 0.13 | 38.32 | 0.38 |
| 140 | 0.07 | 0.11 | 37.35 | 0.34 |
| 145 | 0.045 | 0.13 | 55.18 | 0.15 |
| 150 | 0.06 | 0.11 | 41.87 | 0.27 |
| 150 | 0.05 | 0.12 | 49.83 | 0.19 |
| 160 | 0.05 | 0.11 | 47.27 | 0.20 |
| 160 | 0.04 | 0.12 | 56.25 | 0.13 |
| 160 | 0.035 | 0.12 | 59.94 | 0.10 |
| 180 | 0.05 | 0.09 | 41.33 | 0.23 |
| 180 | 0.04 | 0.1 | 51.02 | 0.14 |
| 200 | 0.05 | 0.08 | 37.87 | 0.25 |
| 200 | 0.04 | 0.09 | 47.93 | 0.16 |
| 220 | 0.05 | 0.07 | 34.03 | 0.28 |
| 230 | 0.035 | 0.08 | 48.39 | 0.14 |
| 230 | 0.03 | 0.08 | 52.89 | 0.10 |
| 250 | 0.04 | 0.06 | 36.00 | 0.20 |
| 250 | 0.035 | 0.07 | 44.44 | 0.15 |
| 270 | 0.035 | 0.06 | 39.89 | 0.17 |
| 270 | 0.03 | 0.06 | 44.44 | 0.12 |
| 280 | 0.035 | 0.06 | 39.89 | 0.17 |
| 300 | 0.03 | 0.05 | 39.06 | 0.14 |
| 325 | 0.025 | 0.05 | 44.44 | 0.10 |
| 325 | 0.028 | 0.05 | 41.09 | 0.13 |
| 325 | 0.03 | 0.05 | 39.06 | 0.15 |
| 350 | 0.022 | 0.05 | 48.23 | 0.08 |
| 370 | 0.022 | 0.05 | 48.23 | 0.09 |
| 400 | 0.022 | 0.04 | 41.62 | 0.10 |
| 420 | 0.022 | 0.04 | 41.62 | 0.10 |
| 450 | 0.02 | 0.04 | 44.44 | 0.09 |
| Common Specifcations for Stainless Steel Square Mesh (Twill Weave ) | ||||
| Mesh/Inch | Wire Diameter(mm) | Opening Size(mm) | Open Area(%) | Weight(kg/m2) |
| 150 | 0.07 | 0.0993 | 34.40 | 0.37 |
| 165 | 0.058 | 0.0959 | 38.83 | 0.28 |
| 180 | 0.058 | 0.0831 | 34.69 | 0.30 |
| 200 | 0.058 | 0.069 | 29.52 | 0.34 |
| 225 | 0.05 | 0.069 | 33.62 | 0.28 |
| 235 | 0.045 | 0.0631 | 34.07 | 0.24 |
| 250 | 0.04 | 0.0616 | 36.76 | 0.20 |
| 270 | 0.04 | 0.0541 | 33.05 | 0.22 |
| 280 | 0.04 | 0.0507 | 31.25 | 0.22 |
| 300 | 0.035 | 0.0497 | 34.43 | 0.18 |
| 300 | 0.038 | 0.0467 | 30.40 | 0.22 |
| 300 | 0.04 | 0.0447 | 27.85 | 0.24 |
| 315 | 0.035 | 0.0456 | 32.01 | 0.19 |
| 325 | 0.035 | 0.0432 | 30.52 | 0.20 |
| 350 | 0.035 | 0.0376 | 26.82 | 0.21 |
| 350 | 0.03 | 0.0426 | 34.43 | 0.16 |
| 363 | 0.03 | 0.04 | 32.65 | 0.16 |
| 385 | 0.03 | 0.0377 | 31.01 | 0.17 |
| 400 | 0.025 | 0.0385 | 36.76 | 0.13 |
| 400 | 0.028 | 0.0355 | 31.25 | 0.16 |
| 400 | 0.03 | 0.0335 | 27.83 | 0.18 |
| 420 | 0.03 | 0.0302 | 25.17 | 0.19 |
| 450 | 0.025 | 0.0314 | 31.00 | 0.14 |
| 500 | 0.025 | 0.0258 | 25.79 | 0.16 |
| 510 | 0.025 | 0.0248 | 24.80 | 0.16 |
| 530 | 0.024 | 0.0239 | 24.90 | 0.15 |
| 635 | 0.018 | 0.022 | 30.25 | 0.10 |
| 635 | 0.02 | 0.02 | 25.00 | 0.13 |
| 800 | 0.016 | 0.0164 | 25.62 | 0.10 |
