PTF-40 Snap-In 5*20 Fuse Holder 250V 10 Amp Panel Mount Fuse Holder 5x20mm

Price	USD $0.4~$0.55 per piece
MOQ	1000
Delivery Time	10 work days
Place of Origin	China
Certification	UL VDE
Model Number	PTF-40
Packaging Details	Inner Box, Outer Carton
Payment Terms	T/T
Supply Ability	5K pieces per week

Product Details

Product Specification

Place of Origin	China	Packaging Details	Inner Box, Outer Carton
Ir	10A	Model Number	PTF-40
Supply Ability	5K pieces per week	Terminal	tin or nickel plated brass
Certification	UL VDE	Name	Fuse Holder Fuse Carrier
Suitable for	5.2x20mm fuses	Cut-out dia	12.7mm
Payment Terms	T/T	Body Material	PBT
Price	USD $0.4~$0.55 per piece	Delivery Time	10 work days
Length	37.5mm	Part	PTF-40
Minimum Order Quantity	1000	RoHS Compliant	Yes
Installation Way	Panel Mount, Snap-in	Cap Type	bayonet
Ur	250V AC

Product Description

UL VDE PTF-40 Snap-In Fuse Holder With Quick Connect Terminal UL 94V-0 PBT 5x20 10A 250V Fuse Carrier

Product Description

The panel-mounted fuse holder is convenient for inspection and repair, and does not need to disassemble the machine to replace the fuse.

Features

Anti-vibration design eliminates accidental electric shocks for operators
Compact design, small structure
Snap-in mounting
PBT, UL94V-0 material boy
Straight quick connect terminal, easy to wire
Can be installed on the panel without a screw driver
UL /VDE approved
250Vac 10A Rating
For 5.2x20mm fuses usage
Ambient Temperature: -20℃~125℃
lnsulation Resistance: >100mOhm @ 500Vdc
Contact Resistance: 5mOhm at 1A DC
Dielectric Strength: >1500acV 1 minute
Nickel / tin plated brass terminals:

Item Name	PTF-40 Snap-in Fuse Holder
Mounting Type	Panel
Terminal Width	3 mm
Terminal thickness	0.5mm
Max Diameter	22 mm
Length	37.5 mm
Cut-out diameter	12.7 mm
MOQ	1000PCS

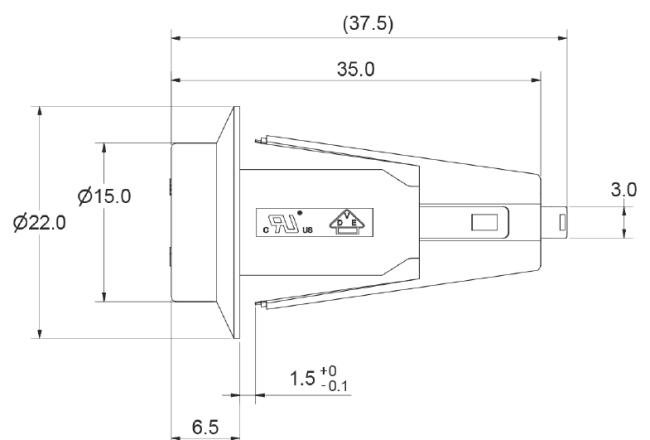

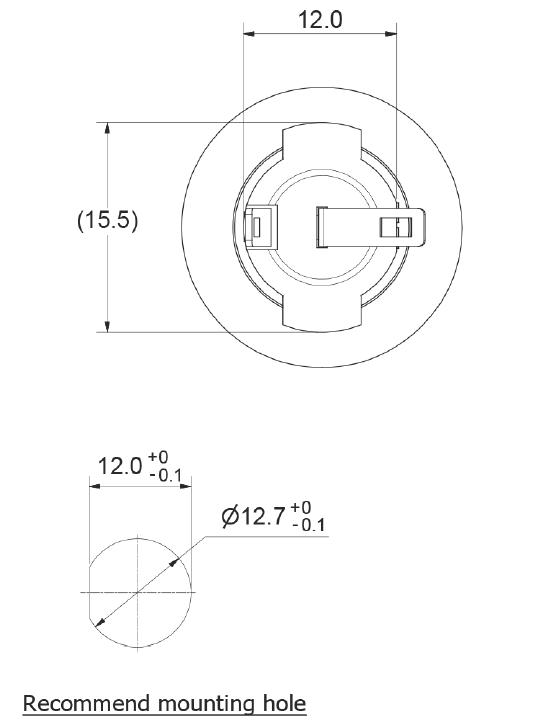

Drawing of PTF-40 fuse holder

Please allow 1-3mm tolerance due to manual measurement.

Standard Package:

100pcs per bag, 1000pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

Will the fuse need to accessible for replacement?
How often will the fuse need to be replaced?
Should the end customer of the appliance have access to change the fuse?
Should the fuse only be accessible from outside the appliance?
How much is available to spend on safety and reliability?

The panel mount fuse holders are compatible with either 1-1/4" x 1/4" or 5x20mm glass and ceramic fuses for overcurrent protection in electronics equipment, appliances, and lighting circuits. They have a removable cap for installing and removing fuses. They're used with glass fuses for protecting low-current circuits or ceramic fuses for protecting high-current circuits.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free?

A: Yes, we could offer samples for free charge but do not pay for the cost of freight.

UL VDE PTF-40 Snap-in Fuse Holder with Quick Connect Terminal UL 94V-0 PBT 5x20 10A 250V Fuse Carrier

Anti-vibration design eliminates accidental electric shocks for operators

Compact design, small structure

Snap-in mounting

PBT, UL94V-0 material boy

Straight quick connect terminal, easy to wire

Can be installed on the panel without a screw driver

UL /VDE approved

250Vac 10A Rating

For 5.2x20mm fuses usage

Ambient Temperature: -20℃~125℃

lnsulation Resistance: >100mOhm @ 500Vdc

Contact Resistance: 5mOhm at 1A DC

Dielectric Strength: >1500acV 1 minute

Nickel / tin plated brass terminals:

Item Name	PTF-40 Snap-in Fuse Holder
Mounting Type	Panel
Terminal Width	3 mm
Terminal thickness	0.5mm
Max Diameter	22 mm
Length	37.5 mm
Cut-out diameter	12.7 mm
MOQ	1000PCS
