| Price | USD $0.1~$0.2 per piece |
| MOQ | 1000 |
| Delivery Time | 10 work days |
| Place of Origin | China |
| Model Number | SL-601B |
| Packaging Details | Inner polybag, Outer Carton |
| Payment Terms | T/T |
| Supply Ability | 300k pieces per month |
| Place of Origin | China | Voltage Rating | 250V 125V |
| Fire retardant grade | UL 94V-1 or NA | Operation temperature | -10C~150C |
| Packaging Details | Inner polybag, Outer Carton | Current Rating | 10A 15A |
| Material | Bakelite/nylon, brass | Model Number | SL-601B |
| Supply Ability | 300k pieces per month | Payment Terms | T/T |
| Item Name | Fuse Holder | Price | USD $0.1~$0.2 per piece |
| Delivery Time | 10 work days | Part No. | SL-601B |
| Mount Type | Panel Mount | Minimum Order Quantity | 1000 |
| RoHS Compliant | Yes | Terminal type | quick connect |
| Screw Type | round | Applied to | 6x30 6x32 tube fuses |
| Package | 1000pcs per carton | Cap Type | Screw Mount |

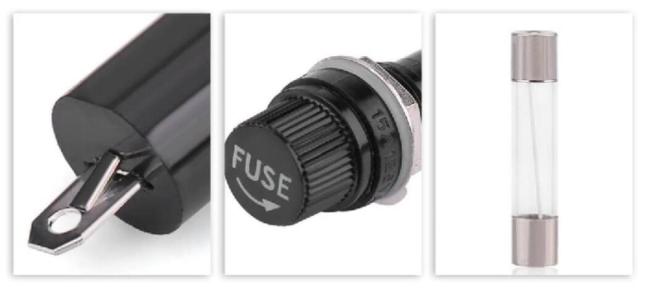

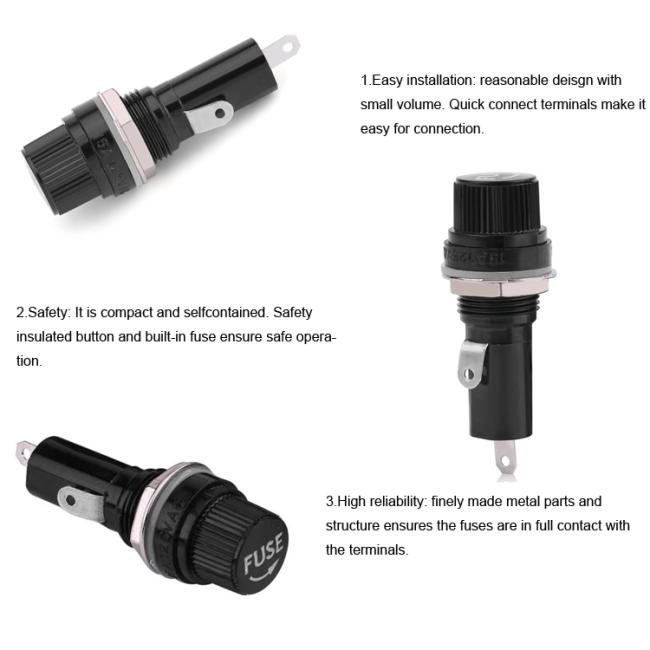

Quick Connect 250V 10A 125V 15A 6x30 6x32 Tube Fuse Holder Round Screw
Panel Mount Fuse Holders for 6x30 Tube Fuses
| Item | Fuse Holder |
| Mouting Style | Panel Mount, round screw |
| Terminal Type | quick connect |
| Body Materials | bakelite/nylon |
| Max Rating | 10A 250V 15A 125V |
| Certifications | RoHS |
| Fire retardant grade | UL 94V-1 |
| MOQ | 1000PCS |
Hot Alternative Model
1. Type: panel mount fuse holder
2. Size: 6*30mm
3. Standard: National Safety Standards
4. Certification: ISO9001, RoHS
|
Product Name
|
Panel Mount 6*30mm fuse holder
|
|
Mounting Ways
|
Panel mount, screw cap
|
|
lnsulation Resistance
|
>1000mΩ
|
|
Withstanding Voltage
|
>3000VAC |
|
Warranty Period
|
2 years
|
|
Contact Resistance
|
<0.02Ω
|
| Operational Temp | -10C~150C |
|
Accessories
|
3AG fuses
|

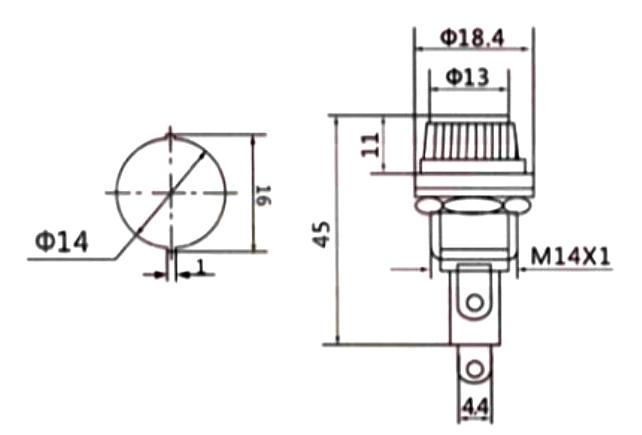

Drawing of the Round Screw Panel Mount 6*30mm fuse holder with quick connect terminals
Standard Package:
100pcs per bag, 1000pcs per carton
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
The first step is to answer the following questions:
The most important standards for fuse-holders, which specify requirements, characteristics and testing methods are:
A: We are a fuse product factory.
A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: 100% in advance, T/T.
