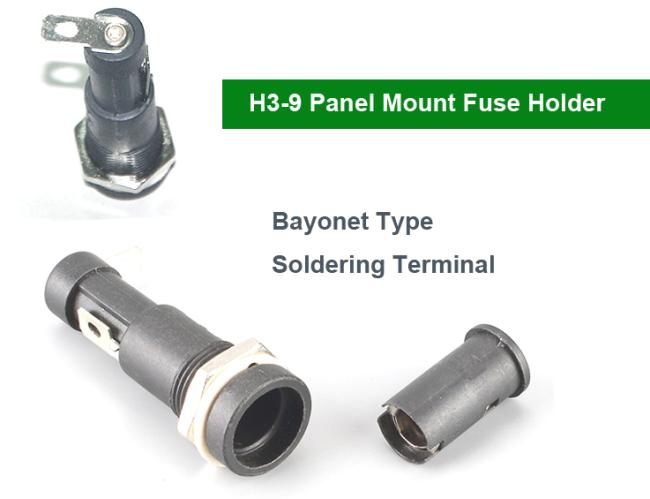

Panel Mount Bayonet Fuse Holder H3-9 250V 15A AGC Fuse Holder 6x30 6x32mm

Price	USD $0.39~$0.5 per piece
MOQ	1000
Delivery Time	10 work days
Place of Origin	China
Certification	UL
Model Number	H3-9
Packaging Details	Inner Box, Outer Carton
Payment Terms	T/T
Supply Ability	5K pieces per week

Product Details

Product Specification

Place of Origin	China	Voltage Rating	250V ac
Packaging Details	Inner Box, Outer Carton	Current Rating	15A
Model Number	H3-9	Supply Ability	5K pieces per week
Terminal	nickel plated brass	Certification	UL
Name	Fuse Holder	Payment Terms	T/T
lnsulation Resistance	>100mΩ @DC500V	Price	USD $0.39~$0.5 per piece
Delivery Time	10 work days	Length	43.8mm
Mount Type	Panel Mounting	Cut-out Doa	12mm, 12.5mm
Minimum Order Quantity	1000	RoHS Compliant	Yes
Applied to	3AG fuses	Contact Resistance	<0.02Ω
Package	1000 pcs per carton	Cap Type	Bayonet
Body	PBT

Product Description

6x32 Panel Fuse Holder H3-9 250V 15A AGC Fuse Holder Bayonet Type 15 Amp 250 Volts

Product Description

For 6x30 6x32mm FUSES

Contact Resistance: <0.02Ω
Withstanding Voltage: >AC3000V
lnsulation Resistance: DC500V 100mΩ Min
Electrical Rating:15A@250V AC
Body: PBT
Bayonet type cap
Terminals: nickle plated brass, soldering type.

Mounted by nut. Nuts and washers are in separate packages.

Item	H3-9 Fuse Holder
Mounting Style	Panel Mount
Electrical Rating	15 Amp 250V
Certificate	UL
Fire retardant grade	94V-1
Frame and cap	PBT
Terminal	brass, nickel plated
Fuse Size	6x30 6x32 mm
Cut-out diameter	12.5 mm
MOQ	1000PCS

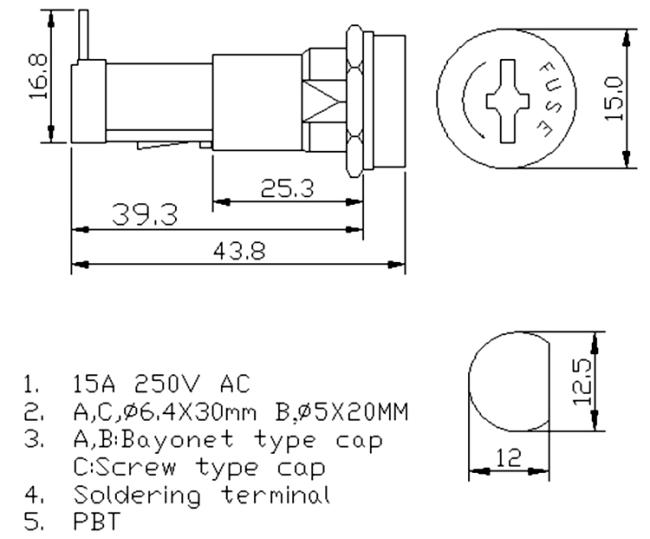

Drawing of H3-9 fuse holder

Product Features

Compact structure
Easy to install
Durable engineering material

Our Advantages

Standard Package:

100 pcs per bag, 1000pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

Will the fuse need to accessible for replacement?
How often will the fuse need to be replaced?
Should the end customer of the appliance have access to change the fuse?
Should the fuse only be accessible from outside the appliance?
How much is available to spend on safety and reliability?

5.1.2. Requirements and characteristics

The most important standards for fuse holders, which specify requirements, characteristics and testing methods are:

IEC-publication 257 (1968) and Amendment no. 2 to this publication dated January 1989.
UL-standard no. 512.

Our products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminals, household appliances, lighting appliances, power supplies and adapters. We have acquired ISO9001/UL/cUL/VDE/CCC/CQC safety certificates. After serving our valuable clients in China market over 10 years, Reomax fuses has become one of the leading fuses suppliers. In order to create more value and save more cost for our global clients, we start to provide the shortest fuses product supply chain mode and we are now available in worldwide.

We are one of the members of Subcommittee on Miniature Fuses of National Technical Committee on Fuses of Standardization Administration of China. And we have acquired ISO9001 approval and UL/cUL/VDE/CCC/CQC/PSE safety regulations certificate.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What are your terms of payment ?

A: 100% in advance, T/T.
