| Price | Can be negotiated |
| MOQ | 1 |
| Delivery Time | 8-10days |
| Brand | SAMYON |
| Place of Origin | CN |
| Certification | ISO |
| Model Number | SAM-65D |
| Packaging Details | Carton |
| Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A |
| Supply Ability | 999/mth |
| Place of Origin | CN | Packaging Details | Carton |
| Material | 316L Stainless Steel | Model Number | SAM-65D |
| Controller | Yellow Color | Supply Ability | 999/mth |
| Certification | ISO | Name | 65mm Dual Borehole Inspection Camera |
| Brand Name | SAMYON | Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A |
| Side Camera | 360 Degree Rotate | Price | Can be negotiated |
| Delivery Time | 8-10days | Camera Type | Dual Camera |
| Minimum Order Quantity | 1 | Voltage | 12V / 220V |
65mm Dual Borehole Inspection Camera Side 360 Degree Rotate upto Max.20Mpa
65mm Dual Borehole Inspection Camera Introduction:
65mm Dual Borehole Inspection Camra is with 2 cameras in one tube: Side camera that can rotate 360 degree ; And Front fix camera tests angle 120 degree. The main body tube material is made of 316L stainless steel which also can be used under sea to avoid corrosion problem. 8 Pieces Led Light can be adjustable according to clients requests to satisfy with working state.

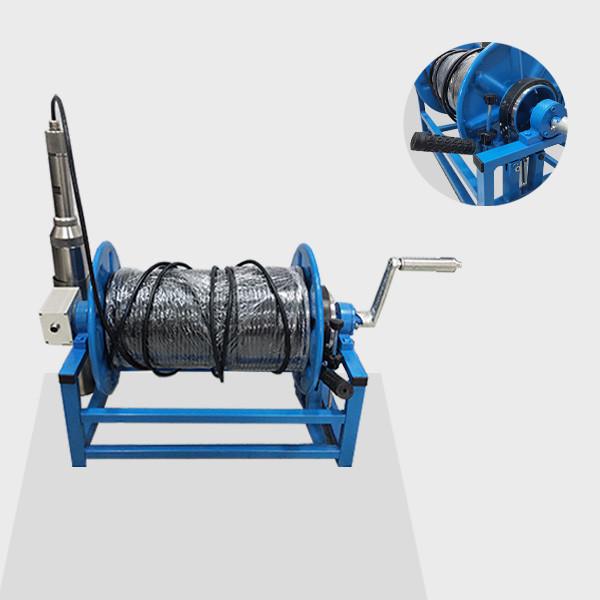

It works with our Yellow Color Controller box 12Inch Display with multifunction. As its side camera can hanlde or automatic rotate 360 dregee, it only work with our electric type winch BlueE, AE, AEW(self winding function), Plate type GrayE and GrayEW(self - winding function). It is suitable for the borehole diameter more than 70mm well.
65mm dual inspection camera also equip with our new designation Quick & Water proof cable connection that can easily realize exchange with 65mm with one winch and cable system.
65mm Dual Borehole Inspection Camera Application:
SAM-65D is suitable Dry hole and Wet hole for engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology and other industries; it can be used to detect fissure, dislocation, falling objects, blockage of filter pipe hole and the position of fluid sand, etc.
it can also observe the bedrock fissures and development state as well as the size and position of karst caves and other geological conditions in bedrock area.
65mm Borehole Camera's parameters:
| Borehole Diameter | 65mm Single | 65mm Dual | 73mm Dual | 73mm DualF | 73mm Single |
40mm Single |
| Rotate Angle | 360⁰ |
Side Camera 360 ⁰ |
Side Camera 360 ⁰ |
Side Camera 360 ⁰ |
×××××× | ×××××× |
| Camera Number | One | Two | Two | Two | One | One |
| Material | 316L Stainless Steel | 316L Stainless Steel |
304 Stainless Steel |
304 Stainless Steel |
Steel | Steel |
| Bear Pressure | Max.20Mpa | |||||
| Centralizer | Equip With | |||||
| Depth Meter | Digital Depth Meter | |||||
| Controller | Yellow Color | Yellow Color | Black Color | Black Color | Black Color | Black Color |
| Display | 12inch | |||||
| Focus Function | Yes | NO | NO | Yes | NO | NO |
65mm Borehole Camera's Pictures:
