| Price | USD1000 ~ USD20000.00 |
| MOQ | 1set |
| Delivery Time | 3days |
| Brand | SAMYON |
| Place of Origin | CN |
| Certification | ISO |
| Model Number | HD EYE |
| Packaging Details | Wooden case |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100sets per week |
| Place of Origin | CN | Packaging Details | Wooden case |
| Model Number | HD EYE | Supply Ability | 100sets per week |
| Certification | ISO | Name | High Definition Borehole Camera |
| Brand Name | SAMYON | Payment Terms | T/T, Western Union |
| Function | Software Directly Report | Type | HD EYE |
| Price | USD1000 ~ USD20000.00 | Delivery Time | 3days |
| Video Record | By PC | Minimum Order Quantity | 1set |
| Value | Temperature/ Extension force | Camera | 73mm Dual / 78mm |
High Definition Borehole Camera CCTV 200 million Pixel Software Report 73mm dual Camera
HD EYE CCTV Introduction:
Digital HD Borehole Camera is the second generation of borehole camera which designed by our company, that can replace the common analog signal camera . It is with high video and photo quality 200million Pixels which can solve problems under borehole very easily and fast.
HD EYE CCTV Application:
Water Well Testing; Geothermal Well Testing; Oil Well Testing; Drill Hole Testing; Coal Mine Ventilation Shaft Testing
It is also suitable Dry hole and Wet hole for engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology and other industries; it can be used to detect fissure, dislocation, falling objects, blockage of filter pipe hole and the position of fluid sand, etc.
it can also observe the bedrock fissures and development state as well as the size and position of karst caves and other geological conditions in bedrock area.
HD EYE CCTV Feature:
| 1.HD Digital camera |
Video Resolution: 1920* 1080, Pixel: 2 million - 5 million. |
| 2.Working Depth |
Can reach to 2000m - 5000m, no signal interference, totally solve the problem of signal interference when the camera reach to 1000m inside well. |
| 3.Extension Force |
The system is equipped with tension sensor, when the cable is blocked inside down hole and the tension is too high, the system tension value will alarm, avoid excessive force, cable fracture, probe drop down to the well. |
| 4.Temperature Value |
Temperature sensor can inspect the temperature change inside well in the real time. |
| 5.Depth calibration |
customer can manually input the diameter of the pulley and to proceed the depth measurement calibration. |
|
6.Various video collection window |
can be shifted easily between dual camera dual video collection window and dual camera single video collection window. |
| 7.Easy Operation |
System function key can be controlled by PC, save time and easy for site operation, and also can be operated on the main control box. |
| 8.Software Report |
It can automatically output the testing report, include the project name, inspector, well number, well depth, test condition, etc, and also can customized the report format according to the customer requirement. |
HD EYE CCTV Specification details:

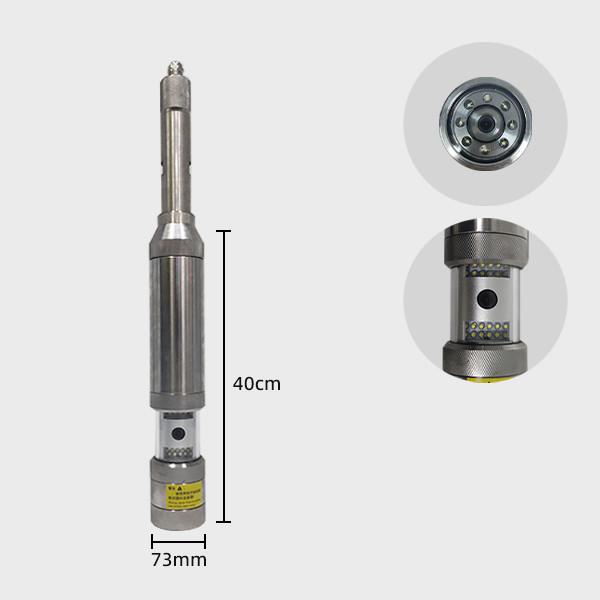

| 1. Outer Diameter | 73mm(Dual) |
| 360°Rotate | Side Camera Support |
| Resolution | 1920* 1080 |
| Pixel | 2 Million |
| Pressure | 20Mpa |
| Light Brightness | Adjustable |
| Focus | Adjustable |
| Shelf Material | 304 Stainless Steel |
|

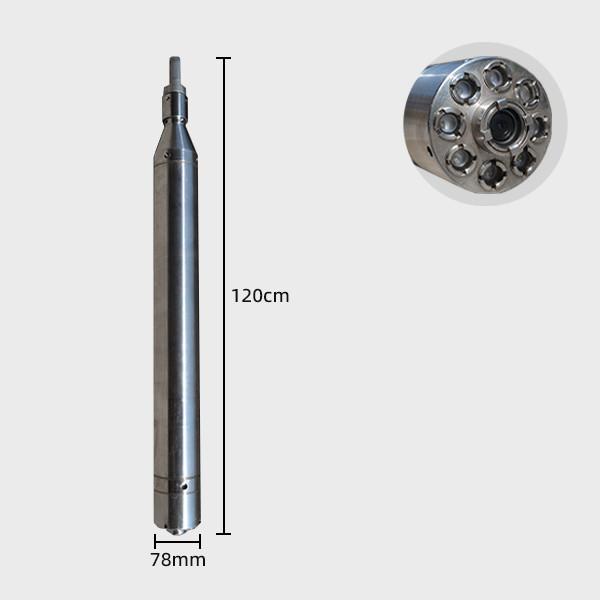

2. Outer Diameter |
78mm(panorama) |
| Resolution | 1920*1080 |
| Pixel | 2 Million |
| Pressure | 50 MPa |
| Environment Temp | 95℃ |
| Shelf Material |
304 Stainless Steel |
| Software | Function |
| Temp Value | Support |
| Tension Value | Support |
| Depth Calibration | Support |
| Testing Report | Support |
| Window Swift | Support |
| TDS Monitoring | Support |
| Video Storage | Support |
| Photo Capture | Support |
