Construction Hexagonal Gabion Wire Baskets OEM 3x1x0.5m Rock Basket Retaining Wall

Price	negotiable
MOQ	50 PCS
Delivery Time	10-25days
Brand	HBGB
Place of Origin	China
Certification	ISO 9001
Model Number	GB-002
Packaging Details	compacted before packaging, in bundle
Payment Terms	L/C, T/T, Western Union
Supply Ability	1000 pcs per day

Product Details

Product Specification

Place of Origin	China	Packaging Details	compacted before packaging, in bundle

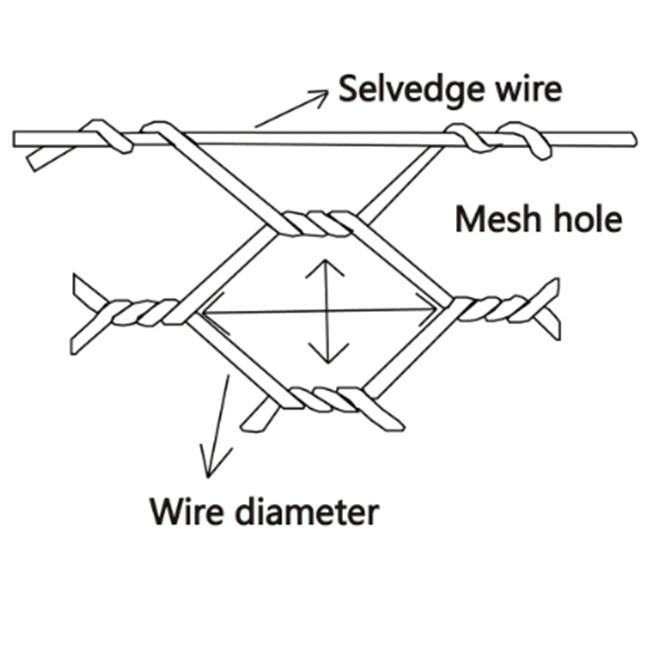

Mesh type	woven wire mesh	Hole shape	hexagonal
Box size	2x1x0.5m, 2x1x1m, 3x1x0.5m, 4x1x0.2m	Material	Q195 iron wire
Model Number	GB-002	Aperture	80 x 100 mm
Supply Ability	1000 pcs per day	Certification	ISO 9001
Surface treatment	pvc coated, galvanized, galfan	Brand Name	HBGB
Payment Terms	L/C, T/T, Western Union	Wire diameter	popular 2.7mm (2.0-4.0mm)
Packing	bundle to tie with iron wire material	Price	negotiable
Delivery Time	10-25days	Product name	Gabion Mesh Basket
Minimum Order Quantity	50 PCS	Application	Flood Control Retaining Wall, Gabions

Product Description

Galfan Wire Woven Type Hexagonal Hole Shape Gabion Mesh Basket

Gabion Mesh Basket Introduction:

Gabion basket is also called gabion box, gabion wall, gabion cage, hexagonal gabion, gabion retaining wall and so on. It is a large cage made by hexagonal wire netting, it can be filled by stones, the wire material is high quality galvanized carbon steel, it is strong enough to protect road, river wall or forward operating bases.

Gabion length could be adjusted by add diaphragms each meter.

Gabion Mesh Basket Raw Material:

Product Name	Gabion
Hole Type	Hexagonal
Production process	Three twist / Five twist
Material	GI wire,PVC coated wire,galfan wire
Wire Diameter	2.0mm-4.0mm
Hole Size	60×80mm,80×100mm,100×120mm,120×150mm
Gabion Size	2m×1m×0.5m,2m×1m×1m,3m×1m×0.5m,3m×1m×1m 4m×1m×0.5m,4m×1m×1m,Other sizes can be customized.

Gabion Mesh Basket Applications:

1. Control and guide of water or flood

2. Preventing of rock breaking 3. Keep off dust wall

4. Water and soil protection

5. Port project

6. Roadway protection

7. Bridge protection

8. Strengthening structure of soil

9. Protection engineering of seaside area

Gabion Mesh Basket Specifications:

Mesh Size	Galvanized Gabion( Dia.mm)	PVC Gabion (Inside Dia/Outside Dia.mm)	Max Wide Cut
60x80mm	Φ2.0-2.8	Φ2.0/3.0-2.8/3.8	4300
80x100mm	Φ2.2-3.2	Φ2.2/3.2-3.0/4.0	4300
80x120mm	Φ2.2-3.2	Φ2.2/3.2-3.0/4.0	4300
100x120mm	Φ2.4-3.5	Φ2.4/3.4-3.2/4.2	4300
100x150mm	Φ2.4-3.5	Φ2.4/3.4-3.2/4.2	4300
120x150mm	Φ2.7-4.0	Φ2.7/3.7-3.5/4.5	4300
