| Price | negotiable |
| MOQ | 100PCS |
| Delivery Time | 10-25days |
| Brand | HBGB |
| Place of Origin | China |
| Certification | ISO 9001 |
| Model Number | GB-002 |
| Packaging Details | compacted before packaging, in bundle |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 pcs per day |
| Side wire | 3.4mm | Usage | Flood Control Gabion Mesh |
| Place of Origin | China | Packaging Details | compacted before packaging, in bundle |
| Material | low carbon wire | Model Number | GB-002 |
| Supply Ability | 1000 pcs per day | Certification | ISO 9001 |
| Surface treatment | galvanized, pvc coated, galfan | Brand Name | HBGB |
| Payment Terms | L/C, T/T, Western Union | Price | negotiable |
| Delivery Time | 10-25days | Product name | Gabion Mesh Basket |
| Net wire | 2 - 4 mm | Opening | hexagonal |
| Minimum Order Quantity | 100PCS | Strapping line | 2.2mm |
| Mesh size | 60 x 80 mm; 80 x 100 mm;100 x 120 mm; | Basket size | 1.0 x 1.0 x 1.0 m; 2.0 x 1.0 x 1.0 m and etc |
Gabion
Wires
Box
are
made
of
heavy
galvanized
wire
/
ZnAl
(Golfan)
coated
wire
/
PVC
or
PE
coated
wires,
the
mesh
shape
is
hexagonal
style.
The
Gabion
Basket
are
used
widely
in
slope
protection,
foundation
pit
supporting,
mountain
rock
holding,
river
and
dams
scour
protection
Gabion
Basket
Surface
Treatment:
Finish
can
be
hot-dipped
galvanized,
galvanized
aluminum
alloy
or
PVC
coated,
etc.
Gabion mesh basket specifications:
| Gabion Baskets Specifications | |||
|
Mesh
Opening (mm) |
Wire
Diameter(Metal
Wire) (mm) |
Wire
Diameter(PVC
Coated) Inner/Outside(mm) |
Strands |
| 60*80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80*100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80*120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100*120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100*150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120*150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
| Size | Notes | Tolerance | |||
| Length(m) | Width(m) | Height(m) | Cell Number | Volume(m³) | ±3% |
| 2.00 | 1.00 | 0.30 | 1 | 0.60 | |
| 3.00 | 1.00 | 0.30 | 2 | 0.90 | |
| 4.00 | 1.00 | 0.30 | 3 | 1.20 | ±5% |
| 2.00 | 1.00 | 0.50 | 1 | 1.00 | |
| 3.00 | 1.00 | 0.50 | 2 | 1.50 | |
| 4.00 | 1.00 | 0.50 | 3 | 2.00 | |
| 1.00 | 1.00 | 1.00 | 0 | 1.00 | |
| 1.50 | 1.00 | 1.00 | 0 | 1.50 | |
| 2.00 | 1.00 | 1.00 | 1 | 2.00 | |
| 3.00 | 1.00 | 1.00 | 2 | 3.00 | |
| 4.00 | 1.00 | 1.00 | 3 | 4.00 | |
• Uniform wire coating for extra durability
• Flexible & permeable structure
• Tolerates differential settlement
• Easy to install
• No special labour is required for installation
Gabion
Mesh
Basket
Usage:
• Control and guide of water or flood. Flood bank or guiding bank
• Preventing of rock breaking.Water and soil protection
• Bridge protection.Strengthening structure of soil
• Protection engineering of seaside area.Seaport engineering
• Isolation walls.Protection of road

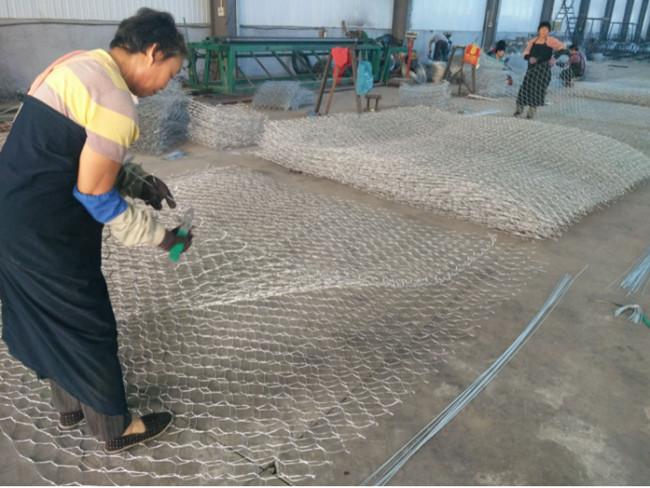

Process of production:
Application:
