| Price | negotiable |
| MOQ | 100PCS |
| Delivery Time | 10-25days |
| Brand | HBGB |
| Place of Origin | China |
| Certification | ISO 9001 |
| Model Number | GB-002 |
| Packaging Details | compacted before packaging, in bundle |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 pcs per day |
| Usage | Flood Control Retaining Wall | Place of Origin | China |
| Weaving type | triple Twist | Packaging Details | compacted before packaging, in bundle |
| Color | green | Hole shape | hexagonal |
| Box size | 1.0 x 1.0 x 1.0 m; 2.0 x 1.0 x 1.0 m and etc | Material | PVC coated iron wire |
| Model Number | GB-002 | Supply Ability | 1000 pcs per day |
| Feature | Anti-corrosion | Certification | ISO 9001 |
| Brand Name | HBGB | Payment Terms | L/C, T/T, Western Union |
| Wire diameter | popular 2.7mm (2.0-4.0mm) | Price | negotiable |
| Delivery Time | 10-25days | Product name | Gabion Mesh Basket |
| Opening | 60 x 80 mm; 80 x 100 mm;100 x 120 mm; | Minimum Order Quantity | 100PCS |

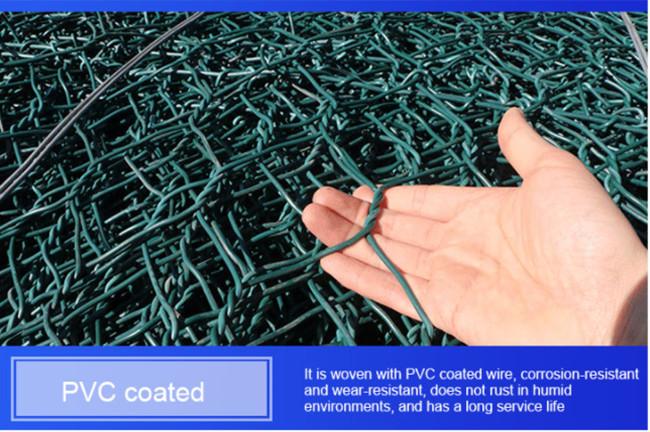

Gabion net is made of low carbon steel wire with high corrosion resistance, high strength and ductility or PVC coated steel wire by mechanical weaving.
Gabion
Cage:
2mx
1mx1m,6mx
12mx0.3m(usual
format)
Wire
Diameter
Range:
2.0mm
- 4.0mm
Support
Customization: PE
or
PVC
coated
Surface
Treatment:
Hot
dip
galvanized
general
zinc, high
zinc,
5%
AL
galvanized,
10%
AL
galvanized
Gabion
Mesh
Basket
Usage:
(1) Controlling and leading the river and flood
(2) Rock fall defending
(3) Seaport project
Gabion Mesh Basket Specifications:
| Opening | Wire Diameter(Metal Wire) (mm) | Wire Diameter (PVC Coate)/ Inner/Outside(mm) | Strands |
| (mm) | |||
| 60X80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 | 3 |
| 80X100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
| 80X120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
| 100X120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
| 100X150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
| 120X150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 | 3 |
Process of production:
Application:
